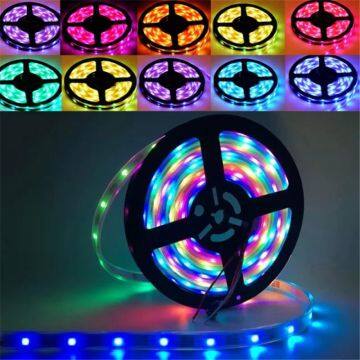

DC5V WS2812 Pixel Digital LED Strip 5050 RGB 30/60/144LED WS2812B LED Pixel Strip LightIP20 IP65 IP67 Waterproof
Specification:
1. Type of IC: Built-in WS2812 / WS2812B
2. DC5V, 0.3watt/LED(Max)
3.30/60/144PCS of 5050 in built IC, each LED separately control;
4. LED Type:SMD 5050
5. PCB Color:White / Black
6. Controller: CL-1000S, digital LED Controller

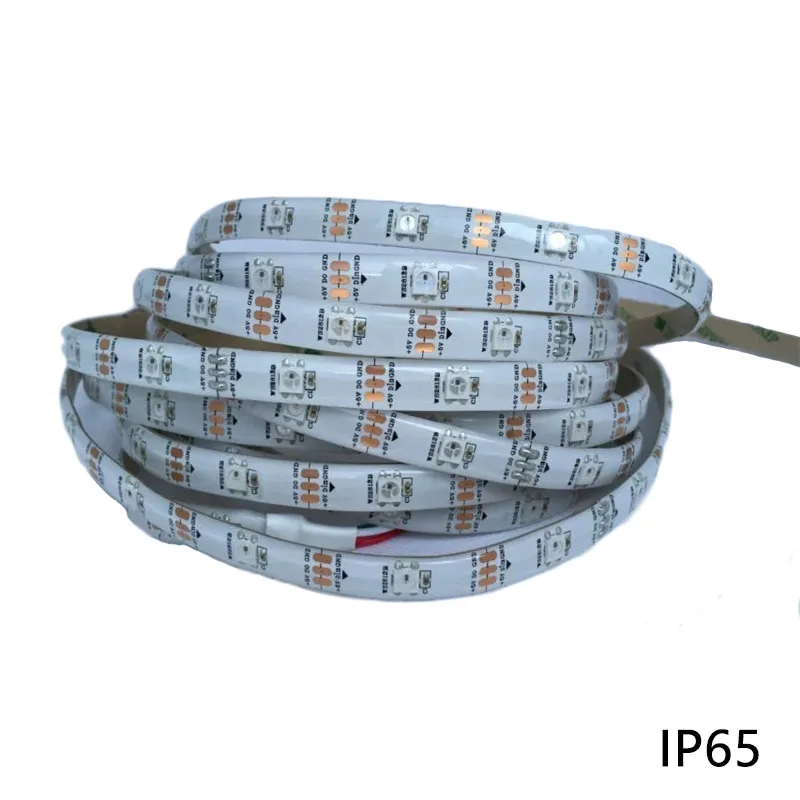

7.IP30 non-waterproof / IP65 waterproof / IP67 waterproof
Note:

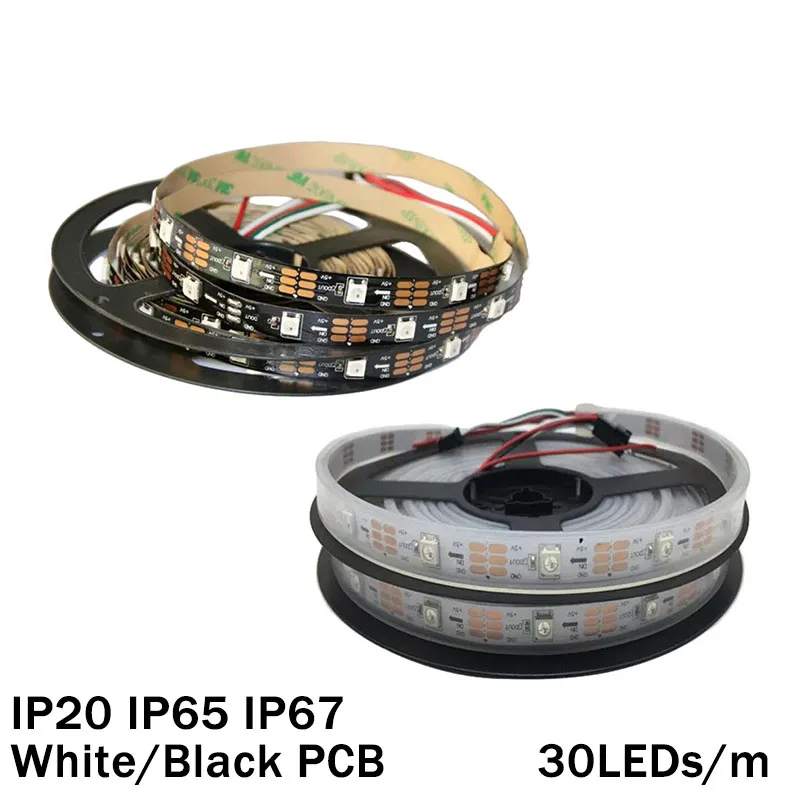

30LED/s/m,60LEDs/m,all are 5Meter/pcs,IP30 IP65 and IP67

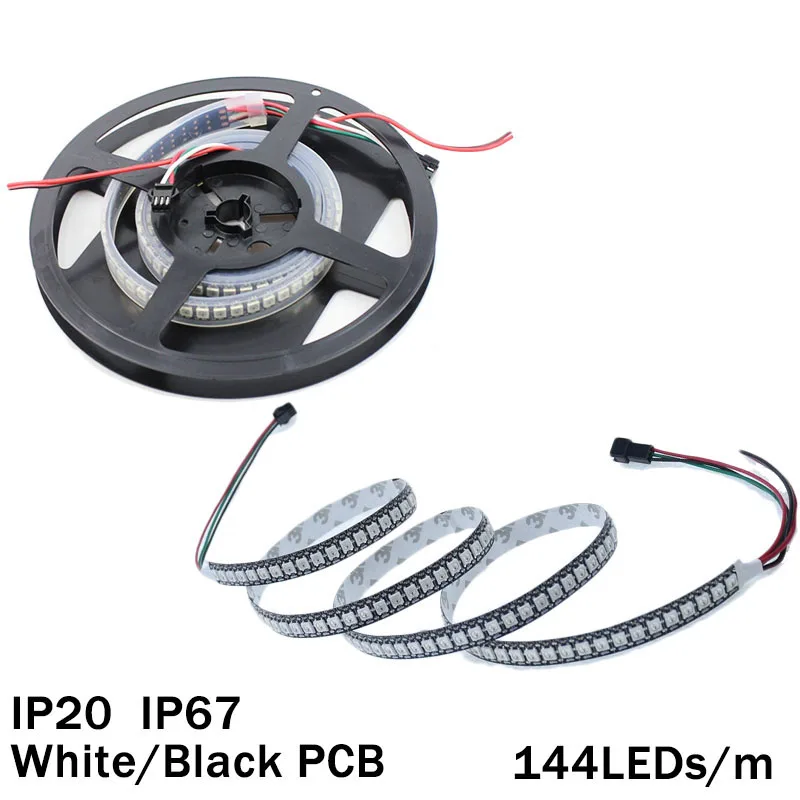

144LEDs,only have 1Meter/pcs, IP30 and IP67
Application:
1. Architectural decorative lighting
2. Canopy and bridge edge lighting
3. Amusement park, theater and aircraft cabin mood lighting
4. Cove lighting, ambient lighting, under shelf lighting
5. Auditorium walkway lighting
6. Indoor / outdoor illumination
Caution:
A strip of LED’s will pull way too much power for your Arduino to handle, so always consider an additional 5V power supply.
Rule of thumb is : each RGB LED unit pulls about 60 mA (3x 20 mA, for Red, Green and Blue).
Your power supply can have overcapacity when it comes to Amps, so if your project needs 3.6 A, and you only have a 10 A power supply, then this will work great.
Keep in mind though that the Voltage must be close to the 5V value. Higher voltages may damage your LEDs.
