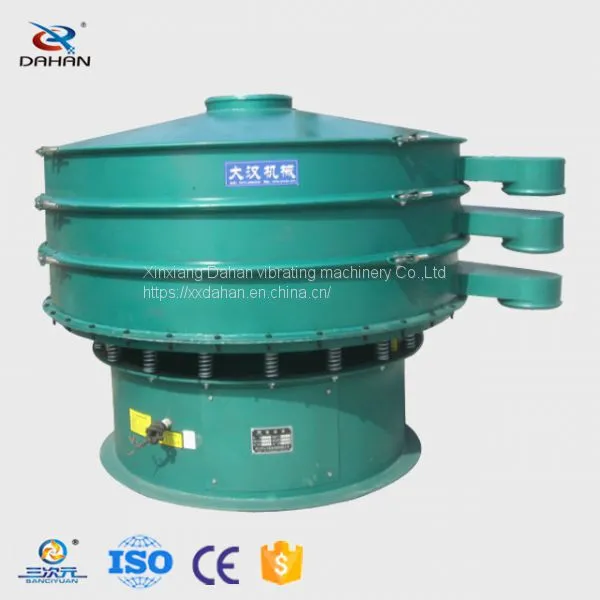

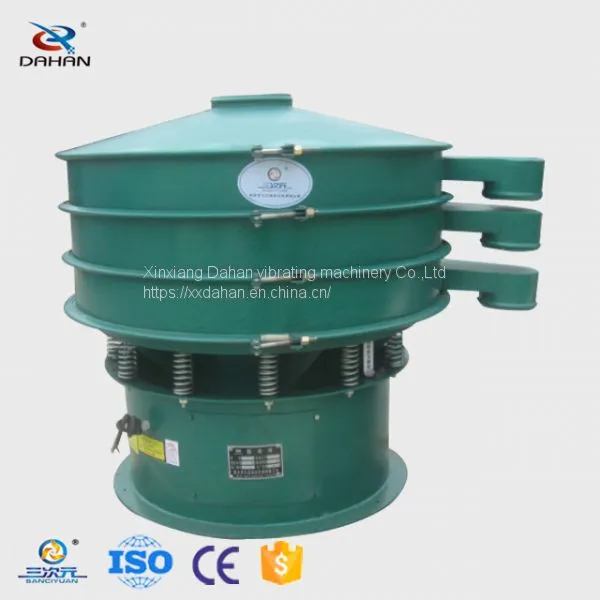

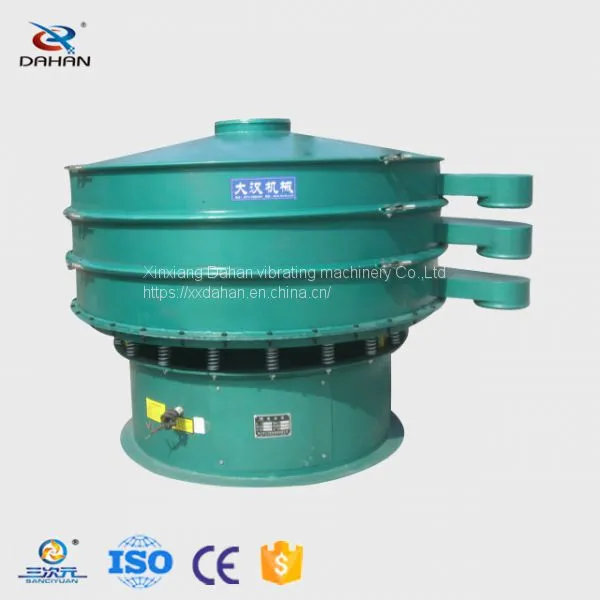

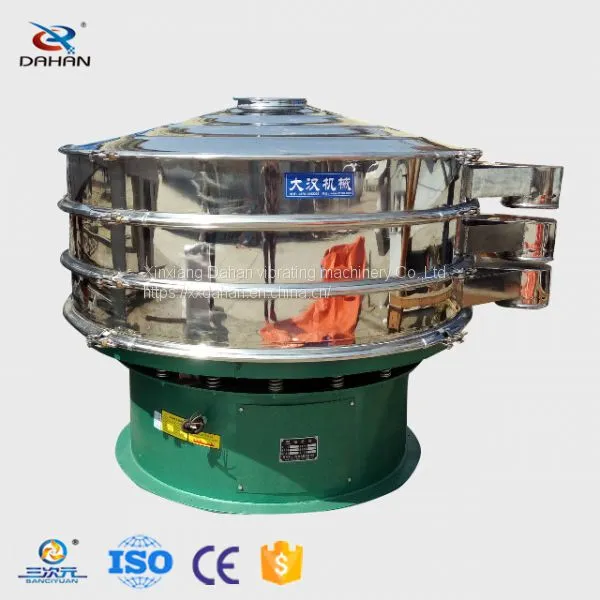

Mini vibrating screen used for milk nido

works principle
Vertical vibration motor as the excitation source,  top and bottom mounted eccentric blocks. Transfering rotary motion of the motor into a horizontal, vertical, inclined three-D movement, then conveyoring the movement to sieve.

Apply to industry
Various kinds of the materials can be screened by the machines including those within 0~400mesh like try, wet, refined, coarse, heavy and light as well as those within 0~600mesh like liquid and pasty materials. Such as:
Chemical industry: resin, paints, industrial chemicals, cosmetics, paint, medicine powder.

Food industry: sugar, starch, salt, rice flour, milk powder, milk, egg, soy sauce, fruit juice.

Metal Mining: aluminum powder, lead powder, copper powder, ore, alloy powder, welding powder, manganese dioxide, copper powder, magnetic power, abrasive powder, refractory materials, kaolin, limestone, alumina, carbonate, heavy calcium, silica sand.

Pollution treatment: waste oil, waste water, wastewater dyeing, additives, activated carbon, etc.

Vibration sieve advantage
1.Save time(3-5 minutes to complete screen replacement).
2.Save manpower,  two persons change screen
3.Increase production line fluency.
4.Increases screen life. Bouncing ball does not directly strike mesh.
5.Increase area.
It is easy and simple to change screen, just following the below way, no more than five minutes, It will be finished.



Vibration sieve product Structure

Mechanical installation and adjustment
1. There should be a stabilized base for equipment. When the equipment is installed on the ground or cement, it need not install bottom screw. When the equipment install on steel structure frame, screws should be fixed on the steel structure frame, and the steel structure should have a certain thickness.
2.Before the equipment is shipped from factory, it has installed screen,customers can change screen by yourselives during the using.
3. Before starting, customers should first check degree of fastening bolt and whether mouth position connect with stock receiver. Observe whether vibration motor can move and check whether each layer sieve  is fastened.
4. Before the vibration sieve  access electrical control panel, firstly, check the electrical control panel. After line connected, observe whether vibration motor rotation direction is clockwise. Wether pperation is normal and there is no noise.
5. Adjusting vibrating motor  phase angle to fit all kinds of material screening.
