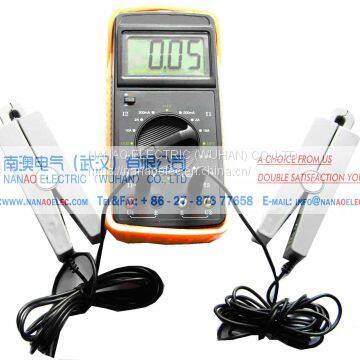

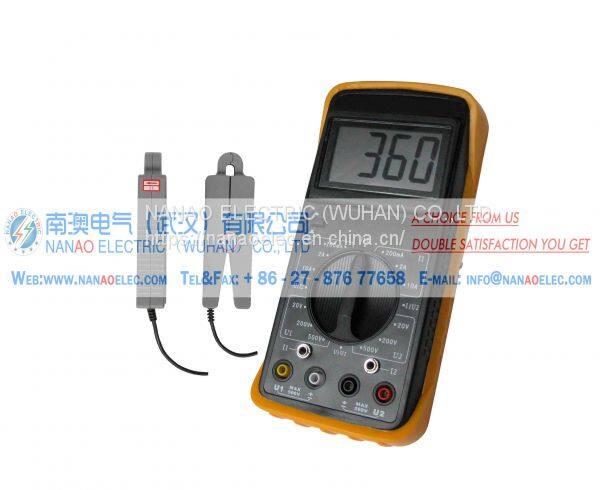

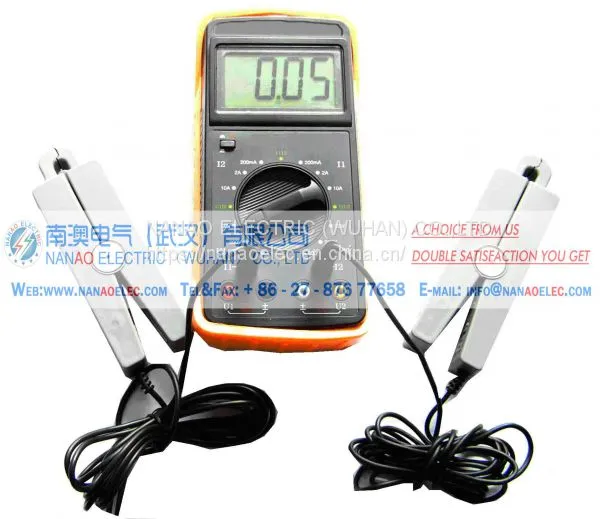

Help CenterNANAO ELECTRIC Manufacture NASJX Multifunction Dual-Clamp Earth Resistance Tester
Related Products
-
NANAO ELECTRIC Manufacture NAJDT Ground Continuity TesterNegotiableMOQ: 1 Set -
NANAO ELECTRIC Manufacture NAJC-C Insulating Zero Value Test DeviceNegotiableMOQ: 1 Set
-
NANAO ELECTRIC Manufacture NAZJ6 DC System Earth Fault DetectorUS$ 10 - 10MOQ: 1 Set
-
NANAO ELECTRIC Manufacture NARS Insulation Resistance Tester (Two Gears)US$ 10 - 10MOQ: 1 Set
-
NANAO ELECTRIC Manufacture NA2671 Series Pointer Insulation Resistance TesterUS$ 10 - 10MOQ: 1 Set
Product introduction
Excellent grounding system is very improtant to ensure the power, telecommunications, electrical equipment safe and reliable operation. Grounding resistance grounding system size is based on the quality of the merits of the judgment. Accurate, fast, simple and reliable grounding resistance measurement method, the area has become a lightning protection and grounding technological advances are urgently needed. NASJX double clamp earth resistance tester for telecommunications, electricity, weather, room, power distribution lines, tower transmission lines, gas stations, factories grounding, lightning and so on.
NASJX has traditional fight auxiliary earth ground resistance measurement functions, also has no auxiliary measuring the unique features of the earth, changing the traditional testing ground resistance measurement principle and means: Double clamp mouth non-contact measurement technology eliminates the need to fight auxiliary earth, and without the grounding body and load isolation, to achieve an online survey. In the single-point grounding system, strong interference and other conditions, can be used to fight the auxiliary earth electrode measurement measurement.
Also called name
Earth resistance tester, dual-clamp resistance tester,Double Clamp Ground Resistance Tester, multifunction double clamp earth resistance tester, multi-ground resistance tester, double jaw Ground Resistance Tester, Clamp Ground Resistance Tester, Ground Resistance, Ground sheet, ground resistance meter, earth resistance meter, earth resistance meter, digital ground resistance tester, digital ground resistance tester, dual clamp ground Resistance Tester, digital ground Resistance Tester clamp, double Clamp digital ground Resistance Tester, clamp-on ground Resistance Tester
The Characteristics of the products
1. Dual clamp/ ground anchor two methods:
applies any ground site, single or multiple point grounding.
2. Strong anti-jamming ability
3. Wide measurement range, high resolution
range: 0.01Ω～200Ω, resolution: 0.01Ω，
4. Big jaw design:
diameter :50mm (standard), special size according customers’ requirements.
5. Large-capacity data storage:200 groups
6. Easy to operate:
small in volume, light in weight, portable explosion proof case, convenient to field test to carry.
The parameters of the products
1. Earth resistance measurement range:
dual clamp: 0.01Ω~200Ω
ground anchor: 0.01Ω～200Ω
2. Error:
dual clamp: ±3%±2 d
ground anchor: ±2%±2 d
3. Minimum resolution: 0.01Ω
4. Jaw size: Φ50mm
5. Storage Capacity: 200 groups
6. Temperature: 0℃ ~ + 50℃
7. Power supply: eight Ni-MH rechargeable batteries or common AA battery
8. Weight: 0.8KG (includes the battery)
9. Dimension: 265mmx130mmx65mm
Product information
1, jaw and host as a whole set. To avoid measurement errors, do not use the jaw of NASJX Double Clamp Ground Resistance Tester hosts for other host.
2, must keep iron core contact surfaces of the jaw clean, or else contaminated instrument jaw will reduce measurement accuracy.
3, keep the jaws closed well during the test to avoid stuck phenomenon.
