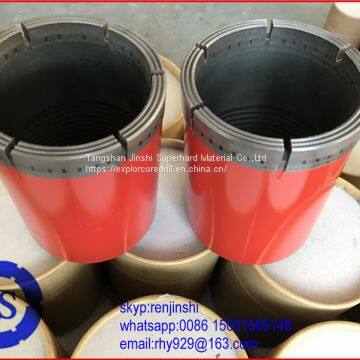

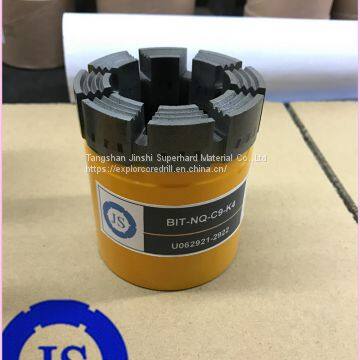

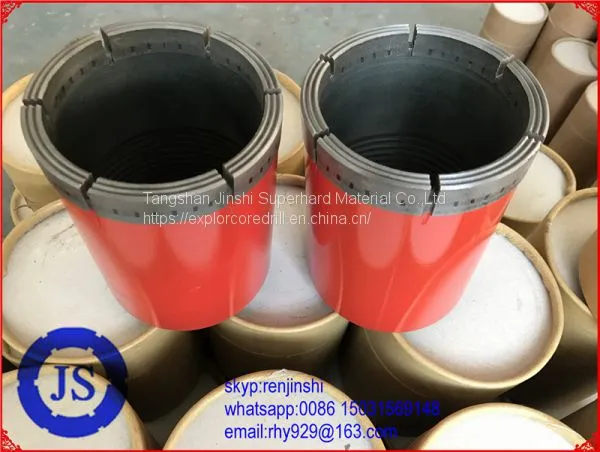

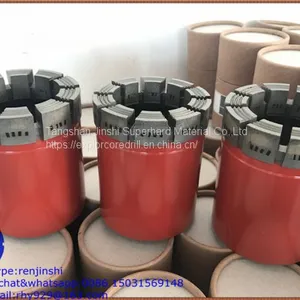

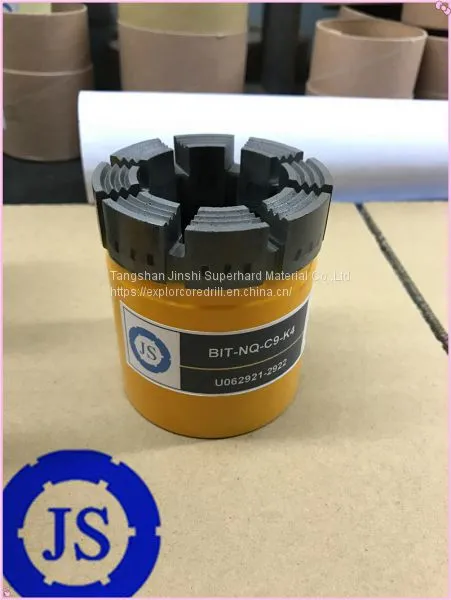

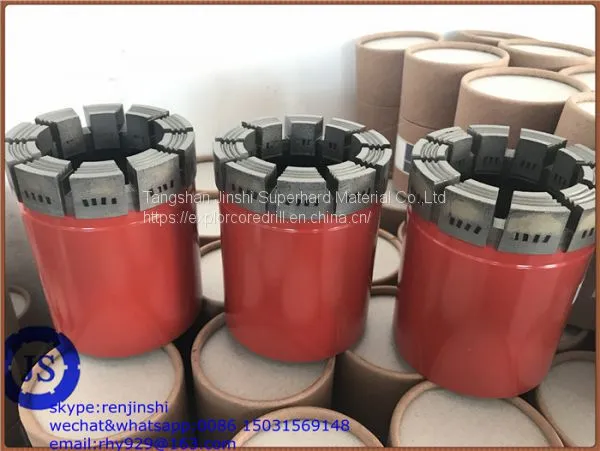

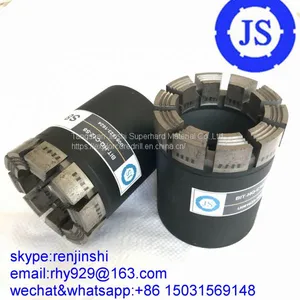

Wireline Impregnated Diamond Core Drill Bit Impregnated Diamond Bits

Wireline Impregnated Diamond Core Drill Bit Impregnated Diamond Bits thumbnail-3

Wireline Impregnated Diamond Core Drill Bit Impregnated Diamond Bits thumbnail-4

Wireline Impregnated Diamond Core Drill Bit Impregnated Diamond Bits thumbnail-5

Wireline Impregnated Diamond Core Drill Bit Impregnated Diamond Bits photo-1

Wireline Impregnated Diamond Core Drill Bit Impregnated Diamond Bits photo-2

Wireline Impregnated Diamond Core Drill Bit Impregnated Diamond Bits photo-3

Wireline Impregnated Diamond Core Drill Bit Impregnated Diamond Bits photo-4

Wireline Impregnated Diamond Core Drill Bit Impregnated Diamond Bits photo-5

US$ 50 - 300 MOQ: 1 Piece

Key Specifications

Get Latest Price

Brand Name:

Place of Origin:

China

Model Number:

NQ,HQ,PQ, BQ

Contact Supplier Request Quote Chat Now

Jinshi Drilltech Co.,Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin port

Delivery Detail:

5 days

Product Details
Company Profile
Contact Us

Brand Name JS

Place of Origin China

Model Number NQ,HQ,PQ, BQ

Product Description

Product Application

Impregnated Diamond Core Bits are manufactured with very small, high quality synthetic diamonds, mixed evenly through a metal alloy matrix. The matrix erodes away at the same rate as the diamonds become worn and rounded. Thus new sharp diamonds are exposed to continue cutting through the rock. In most geological formations, impregnated bits are more economical to use than other bits.
Depending on the range of application as well as the cutting media on the core bits, Forsun makes six types of core bits:

---Impregnated Diamond Type

---Surface set Diamond Type

---Tungsten Carbide Type

---PDC Type

---PCD Type

---Electroplated Diamond Type

Generally, an overall Drilling System consist of core bits, reaming shells, core barrels, drill rods and drilling rig.

matrix height: 6mm， 9mm, 12mm, 26mm,25mm

hardness： K1,K2,K3,K4,K5,K6,K7,K8,K9,K10,K11

Main Size

Wireline series: Geobor S, WLA, WLB, WLN, WLH, WLP, WLB3, WLN3, WLH3, WLP3, WLN2, AQ, BQ, NQ, HQ, PQ, SQ, PQ3, HQ3, NQ3, BQ3, NQ2, WL-56, WL-66, WL-76

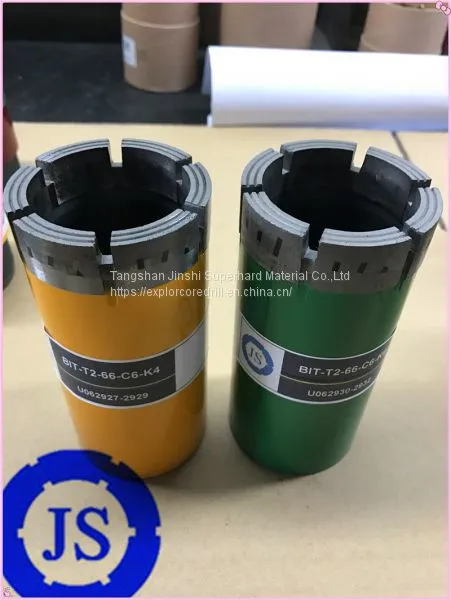

T2 / T series: T2 46, T2 56, T2 66, T2 76, T2 86, T2 101, T46, T56, T66, T76, T86

TT series: TT 46, TT 56

T6 series: T6 76, T6 86, T6 101, T6 116, T6 131, T6 146

T6S series: T6S 76, T6S 86, T6S 101, T6S 116, T6S 131, T6S 146

B series: B46, B56, B66, B76, B86, B101, B116, B131, B146

MLC series: NMLC, HMLC

LTK series: LTK48, LTK60

WF series: HWF, PWF, SWF, UWF, ZWF

WT series: RWT, EWT, AWT, BWT, NWT, HWT(Single Tube, Double Tube)

WG series: EWG, AWG, BWG, NWG, HWG(Single Tube, Double Tube)

WM series: EWM, AWM, BWM, NWM, HWM

Other sizes: AX, BX, NX, HX, TBW, NQTT, HQTT, TNW, 412F, BTW, TBW, NTW, HTW, T6H

Chinese standard: 56mm, 59mm, 75mm, 89mm, 91mm, 108mm, 110mm, 127mm, 131mm, 150mm, 170mm, 219mm, 275mm

Russian standard: 59, 76, 93, 112, 132, 152 mm

Certifications

Detailed Images

DRILL ROD MACHINERY WORKSHOP

Name:BQ,NQ,HQ,PQ DRILL ROD

Brand: JS

Original: CHINA

Main Features

DRILL ROD UPSET, HEAT TREATMENT, THREAD HARD

Machine Parts

ALL KINDS OF DRILL PARTS LIKE HEAD ASSEMBLY, LOCKING COUPLING, LANDING RING,STABLIZER ,CORE LIFTER, CORE LIFTER CASE AND STOP RING

Main Features

DRILL TOOLS SUCH AS TUBE WRENCH, DRILL ROD WRENCH,INNER TUBE WRENCH AND OUTER TUBE WRENCH

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

*HELP OVERSEA

Packing & Delivery

Packaging
Size	2000 (L) * 1000 (W) * 1000 (D)
Weight	1.2 T
Packaging Details	The normal package is iron box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
