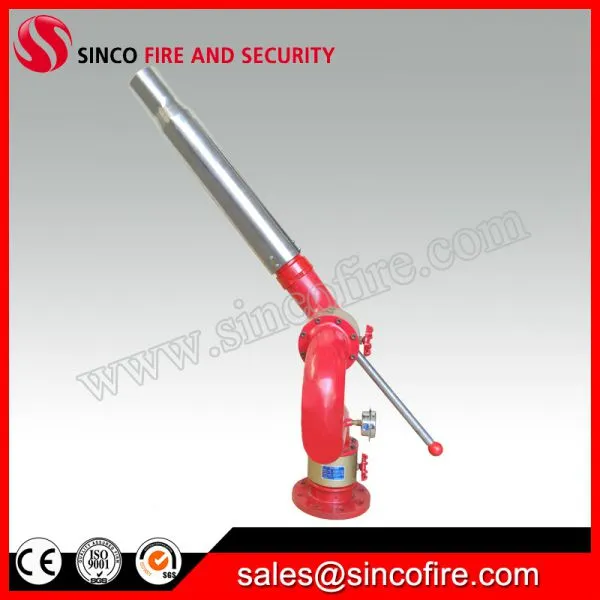

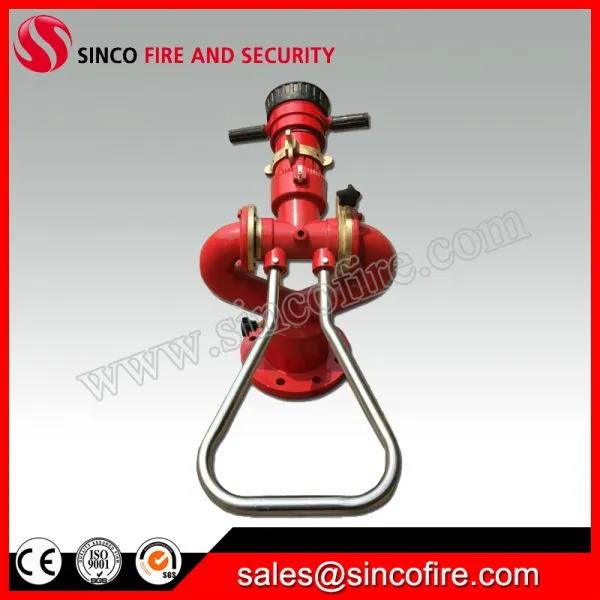

Help CenterManual Fire Monitor Marine Foam Fire Fighting Monitor
Related Products
-
Fire Monitor for Fire FightingUS$ 184 - 3100MOQ: 1 Piece -
Fire Water Foam MonitorUS$ 184 - 3100MOQ: 1 Piece
-
Marine Portable Handle Water/Foam Aluminum Ally Fire MonitorUS$ 184 - 3100MOQ: 1 Piece
-
Manual Fire Monitor for Fire Fighting SystemUS$ 184 - 3100MOQ: 1 Piece
-
Automatic Adjustment Pistol Grip Fire NozzleUS$ 1 - 126MOQ: 1 Piece
Introduction
Manual Fire Monitor has characteristic with adjustable flow rate, distant range and wide discharging range and the discharge range is also adjustable-----have both straight stream and fog stream. Manual fire monitor can be installed in the places of flammable or explosive chemical circumstance, airport, oil area, oil transport wharf, shipyard etc. It is an efficient equipment for putting out fire, and it is also can be fixed on fire vehicles.
Technical parameters
Model |
PS20 |
PS30 |
PS40 |
PS50 |
PS60 |
PS70 |
PS80 |
L/S |
20 |
30 |
40 |
50 |
60 |
70 |
80 |
Working Pressure(Mpa) |
0.8 |
0.8 |
0.8 |
0.8 |
0.9 |
0.9 |
0.9 |
Max Working Pressure(Mpa) |
1.0 |
1.0 |
1.0 |
1.0 |
1.2 |
1.2 |
1.2 |
Flange Connection(mm) |
DN80 |
DN80 |
DN80 |
DN80 |
DN100 |
DN100 |
DN100 |
Water Jetting Range(m) |
≥ 48 |
≥ 55 |
≥ 60 |
≥ 65 |
≥ 70 |
≥75 |
≥80 |
Horizontal Angle (Degree) |
0-360 |
0-360 |
0-360 |
0-360 |
0-360 |
0-360 |
0-360 |
Max Angle Of Elevation (Degree) |
70 |
70 |
70 |
70 |
70 |
70 |
70 |
Max Angle Of Depression (Degree) |
-70 |
-70 |
-70 |
-70 |
-70 |
-70 |
-70 |
Model |
PL24 |
PL32 |
PL48 |
PL64 |
Flow Range（L/S） |
24 |
32 |
48 |
64 |
Working Pressure(Mpa) |
1.0 |
1.0 |
1.0 |
1.2 |
Max Working Pressure(Mpa) |
1.2 |
1.2 |
1.2 |
1.6 |
Flange Connection(mm) |
DN80 |
DN80 |
DN80 |
DN80 |
Water Jetting Range(m) |
≥ 48 |
≥ 50 |
≥ 60 |
≥ 65 |
Horizontal Angle (Degree) |
0-360 |
0-360 |
0-360 |
0-360 |
Max Angle Of Elevation (Degree) |
70 |
70 |
70 |
70 |
Max Angle Of Depression (Degree) |
-70 |
-70 |
-70 |
-70 |
