Home > Security & Protection > Fire Control > Fire Extinguisher > Foam Tank and Fire Foam Bladder Tank for Warehouse Foam Tank

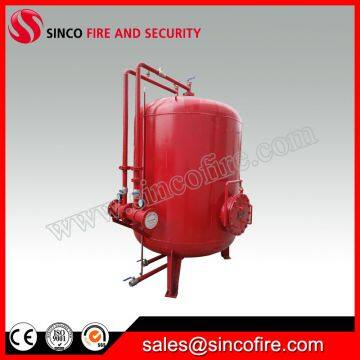

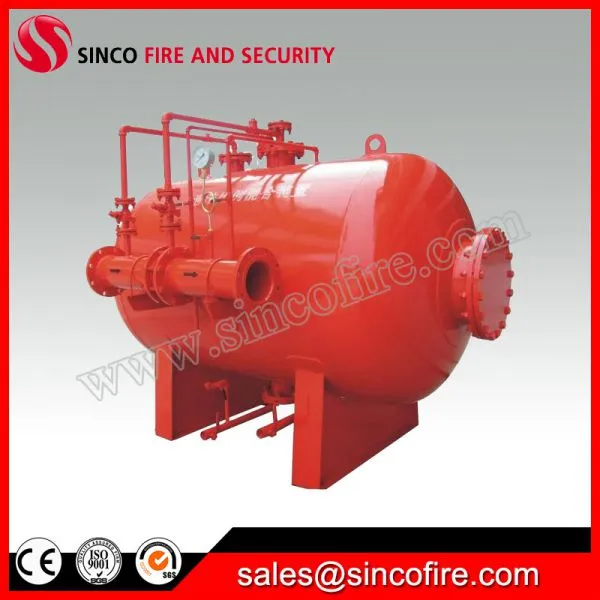

Foam Tank and Fire Foam Bladder Tank for Warehouse Foam Tank

Foam Tank and Fire Foam Bladder Tank for Warehouse Foam Tank thumbnail-1
Foam Tank and Fire Foam Bladder Tank for Warehouse Foam Tank thumbnail-2
Foam Tank and Fire Foam Bladder Tank for Warehouse Foam Tank thumbnail-3
Foam Tank and Fire Foam Bladder Tank for Warehouse Foam Tank thumbnail-4
Foam Tank and Fire Foam Bladder Tank for Warehouse Foam Tank photo-1
Foam Tank and Fire Foam Bladder Tank for Warehouse Foam Tank photo-2
Foam Tank and Fire Foam Bladder Tank for Warehouse Foam Tank photo-3
Foam Tank and Fire Foam Bladder Tank for Warehouse Foam Tank photo-4
US$ 699 - 3999 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
SINCO/OEM
Place of Origin:
China
Model Number:
PHYM
Contact Supplier Request Quote Chat Now
Sinco Fire And Security Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
25 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SINCO/OEM
Place of Origin China
Model Number PHYM

foam tank and fire foam bladder tank for warehouse foam tank

Introduction

Foam bladder tank, together with ratio controllers, form a balanced pressure proportioning system used to mix water and fire fighting foam together to generate an effective extinguishing medium.The bladder tank technology is a mixing method allows the water/foam ratio to remain stable by automatically adjusting to the variable flow rates and pressure conditions that may occur during system operation.This feature makes bladder tanks particularly suitable for multiple hazard systems, sprinkler systems and any other system operating under variable, non predictable, flow and pressure conditions.

Function

The bladder tank is a carbon steel pressure vessel containing an elastomeric separation bladder between the water and foam concentrate. The bladder permits water pressure to be transferred to the foam concentrate without the two fluids mixing together. A ratio controller generates a water pressure drop by means of a reduced cross section where the water stream passes through it. As the foam concentrate pressure is higher than the pressure at the ratio controller, the foam starts flowing towards the water and mixing at a calibrated rate, which is dependant on the water flow rate.

Specification

Model No.

PHY4

PHY8

PHY16

PH24

PHY32

PHY40

PHY64

PHY72

Diameter(mm)

50

65

80

100

100

150

150

150

Mixing Ratio

3% or 6%

Rated Working Pressure

1.2 Mpa

Working Pressure Range

0.3~1.2

Rated Flow(L/s)

4

8

16

24

32

40

64

72

Flow Range(L/s)

1~4

2~8

3~16

4~24

8~32

12~40

15~64

17~72

Pressure Drop(Mpa)

≤0.2


Product Tags: foam bladder tank , foam tank , fire fighting foam tank
