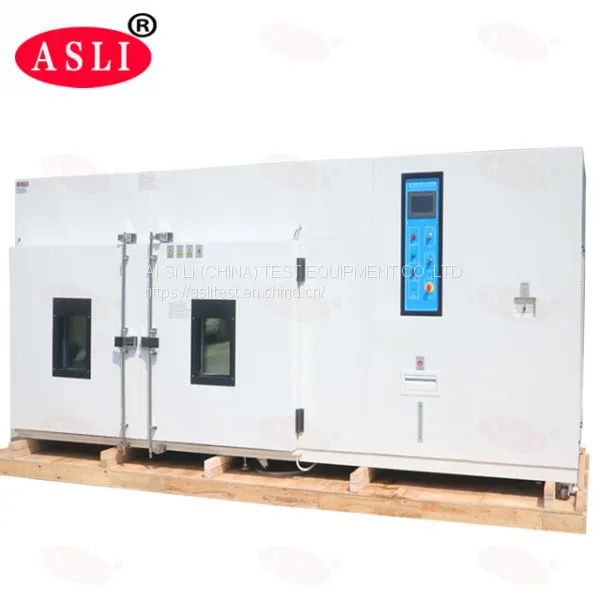

Constant Temperature Humidity Chamber , Stability Environmental Test Chamber

Internal Dimension

WxHxD (mm)

Enternal Dimension

WxHxD (mm)

950x1650

x950

1050x1750

x1050

1200x1900

x1150

1200x1950

x1350

1600x2000

x1450

1600x2100

x1450

Low Temperature(A:25ºC B:0ºC C:-20ºC D:-40ºC E:-60ºC F:-70ºC)

High Temperature 150ºC

20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need

Dehumidifier)

Analytic Accuracy/

Distribution uniformity

of temperature

and humidity

Control Accuracy of

Temperature

and Humidity

Temperature

Rising/Falling

Speed Rate

Temperature rising approx. 0.1~3.0ºC/min / temperature falling approx. 0.1~1.5ºC/min;

( The Falling Speed Rate Min.1.5ºC per minute is a special optional condition)

Inner and Outer

Material

Material of the inner box is SUS 304# stainless steel, of the outer box is stainless steel or

SEE cold-rolled steel with paint coated.

Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation

materials

Wind cooling or water cooling/single segment compressor

(-40ºC, double segment compressor -70ºC)

Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant

protection switch, over-humidity and over-temperature protection switch, fuses, fault warning

system, water short storage warning protection

Optional

Accessories
