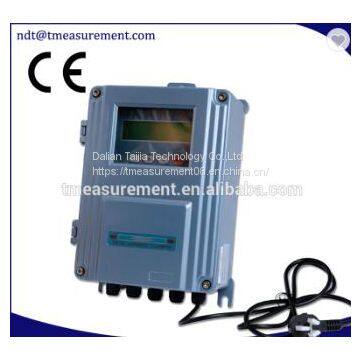

TDS-100F1 Wall mounted ultrasonic flow meter_TDS-100F1 oil flowmeter counter from China Contact Email:market@tmeasurement.com
----Dalian Taijia Technology Co.,Ltd----
Item |
Wall mount ultrasonic flow meter |
Accuracy |
Better than ±1.0 % |
Repeatability |
0.2% |
Pipe Size |
DN15mm~6000mm |
Measurement Period |
0.5S |
Measurement Principle |
Transit-time measurement principle |
Display |
LCD with backlight. 2x20 letters. |
Output |
One channel isolation 4-20mA or 0-20mA active output. |
Input |
two channel three wire system PT100 platinum resistor input loop,to make heat meter has the function of displaying heat quantity. |
Three channel 4-20mA input optional | |
Power supply |
AC 85—264V or isolation DC 8-36VDC |
Power Consumption |
Less than 1.5W |
Environment Temperature |
-30°C~80°C |
Environment Humidity |
85% RH |
Protection Class |
IP65 |
Pipe Material |
All metals,most plastics,fiber glass,etc, |
TDS-100F1 Wall mounted ultrasonic flow meter_TDS-100F1 oil flowmeter counter from China
Main Products:
flow meter,water meter,level meter,ultrasonic thickness gauge,Infrared gas analyzer,concrete scanner,rebar locator,concrete rebar locator
NO.5 Shanshui Yuan, High-tech Industrial Zone Dalian, China 116033
Tel:86-411-39685079
Fax:86-411-86737519
Skype:tmeasurement
E-mail: market@tmeasurement.com
