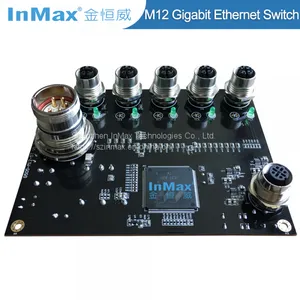

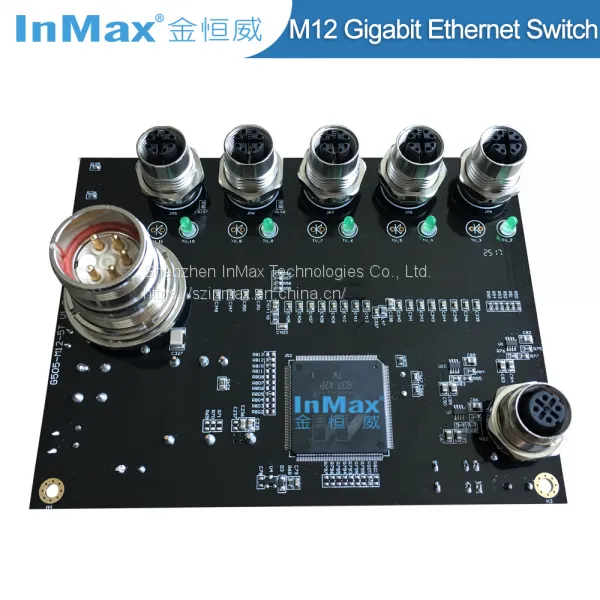

EN50155 Power Port: M23 Port M12 X-code 1000M 5 Port Gigabit Car Industrial Ethernet Switch

EN505A M12 5 Port Gigabit Car Industrial Ethernet Switch

Features and Benefits

◎ Meet the EN50155 railway industry standard requirements.

Designed for rail transportation applications

◎ With 5×10/100/1000M M12 ports

◎ Redundant dual 12/24/48/110VDC power inputs.

Built-in overcurrent protection, Reverse connection protection

◎ -40 to 75℃ operating temperature range (WT models)

◎ No fan, low consumption, industrial design standard,

industrial grade electronic components,

environmental protection & lead-free production

◎ Hard aluminum alloy case(Not sheet metal),DIN-rail and wall mounting

◎ IP Rating up to IP40

◎ Without packet loss in 72 hours full load flow test.

Introduction

The EN505A series M12 Gigabit Ethernet switches are designed for industrial applications in harsh environments. The M12 connectors ensure tight, robust connections, and guarantee reliable operation, even for applications that are subject to high vibration and shock. The EN505A series Ethernet switches provide 8 fast Ethernet M12 ports, support IEEE 802.3/802.3u/802/3x standard, 10 / 100/1000M speed adaptive, full duplex / half duplex communication and MDI / MDI-X automatic detection, to provide you with an economical industrial Ethernet solutions.

No fan, low power consumption design, working function more steady, and without packet loss in 72 hours full load flow test.

It accords with FCC, CE, RoHS standard and industrial design requirement. It can work in -40 to 75℃ working temperature and electromagnetic complex harsh working environment steadily, widely used in car PIS, CCTV, car security monitoring, smart factory, and provide reliable and quick solution for customers’ Ethernet device connection.
