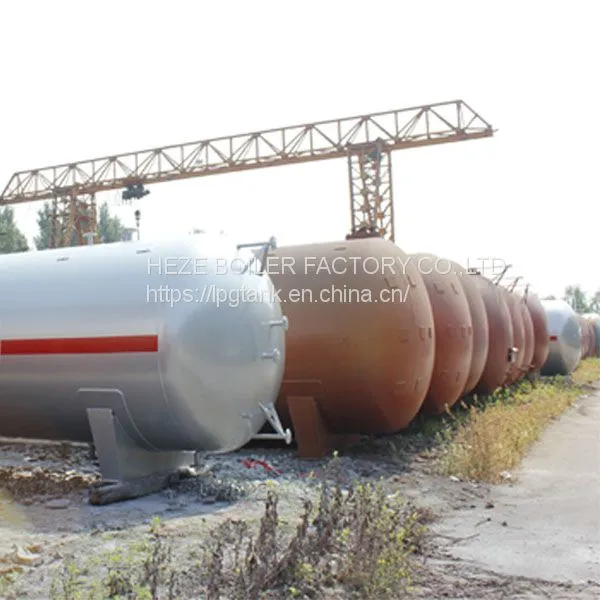

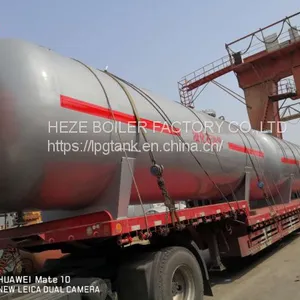

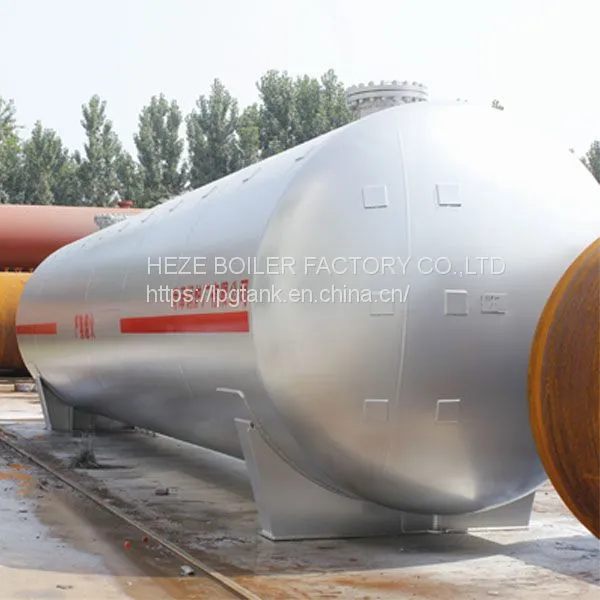

China manufacturer wholesale LPG gas tank for sale
- 1000 Set / Sets per Month
- Qingdao Port, Tianjin Port
- T/T L/C Cash
- 30 days
-
cryogeinc Liquid Nitrogen container Spray 500ml tank 300ml bottom low temperature cryo device
-
30liter liquid gas machine liquid nitrogen dewar for medicine cryo use
-
ln2 Self-pressurized container dewar factory trolley low pressure tank liquid nitrogen pipe 50l
-
liquid argon tank sizes, liquid nitrogen cylinder sizes, liquid co2 tanks
-
liquid petroleum gas tank, liquid co2 storage gas tank, liquid gas cylinder
-
China Liquid Gas Tanks, Liquid Gas Tanks Manufacturers, Suppliers
Product Details
| Brand Name: | HEGUO | Place of Origin: | China | Model Number: | HGR16-336 |
| After-sales Service Provided: | Engineers available to service machinery overseas | Weight: | 10525kgs | Dimension(L*W*H): | DN2600*8500 |
| Condition: | New | Capacity: | 50000L |
Product Description
| |
Volume of Tank | 50000L |
Tank Weight | 10525KG |
Thickness of Shell (mm) | 14mm |
Thickness of Endplate (mm) | 14 mm |
Tank Diameter (mm) | 2600 mm |
LPG Tank Length | 9934mm |
Material of Tank and Main Pressure Parts | Carbon Steel Q345R |
Filling Medium | Liquefied Petroleum Gas ( Propane) |
Design Pressure | 1.77 MPa |
Corrosion Allowance | 1 mm |
Medium Density | 420-590 kg/ cbm |
Design and Manufacturing and Testing Standard TSG R004-2009《Fixed pressure vessels safety and technical supervision regulation》 GB150.1~150.4-2001《pressure vessel》 NB/T47015-2011《welding specification for pressure vessels》 JB/T4730-2005《Nondestructive Testing of Pressure equipment》 GB/T30583-2014《pressure equipment heat treatment after welding procedures》 | |
Other Product Series
Heze Boiler Factory Co.,ltd also provide products as follows:
1. LPG Tank (5m3, 10m3 15m3 20m3 25m3 30m3,40m3 50m3 60m3 80m3 1003 120m3 200m3 lpg tank )
2. LPG Skid Station (5m3 10m3 20m3 30m3 etc)
3. LNG TANK (Capacity from 5m3 to 150m3, vertical and horizontal)
4. LCO2 TANK (Capacity from 5m3 to 100m3 with 2.16MPa pressure)
5. LOX/LN2/LAR Cryogenic Tank( 5m3 to 100m3 vertical type)
6. WNS Gas Steam Boiler (0.5TON TO 20TONS)
7. DZH type biomass steam boiler (1ton to 4tons)
8. DZL type biomass steam boiler (1ton to 10tons)
9. SZL type biomass steam boiler (10ton, 15ton, 20ton 25tons)
10. YGL type wood biomass thermal oil boiler (300000kcal /h to 1200000kcal/h)
11. YYQW type gas fuel thermal oil boiler (300000kcal to 6000000kcal/h)
Advantages of Products
1.Advanced sandblast, spray painting, purging, anti-corrosion procedure.
2.Advanced mechanical property test. Make sure the lowest shrinkage and the highest dimensional stability under low temperature.
3.Strict NDT procedure. A&B welding joint perform 100%RT. C&D welding joint perform 100%MT.
