Pressure Gauges/ Sensors/ Cycling Test Stand Pressure GaugesCalibration Devices

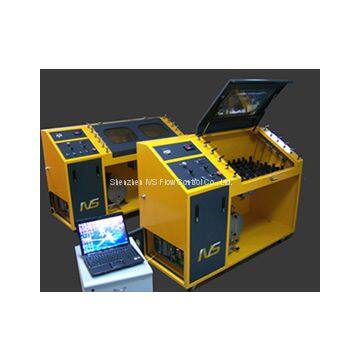

Ⅰ. Pressure Gauges/ Sensors/ Cycling Test Stand (P/N: P1034)
Application:
Computerized cycling test stand/fatigue test system desigened for various pressure gauges/sensors/transducers, is extensively used in a variety of pressure instruments plant, supervision and examination sectors of product quality, labs of institutes, etc
Technical data:
Test pressure: Max. 100MPa
Test port: 1-100 ports (Optional)
Frequency: 0-60 cycles /min
Constant pressure precision: -0.5% ～＋ 0.5%
Timing range: 0～10,000hrs
Power source:220AC
Features:
Fully automatic operation controlled by PC. High speed data acquisition system supports real-time display of pressure values, time and testing curves, etc.
Test report exported upon request and allows printed out for further analysis. User configuration on test pressure range and frequency (setting range: 0-60cycles/min) .
Unmanned testing site monitored by CCTV system. *(optional)
All high pressure valves, pump, tubing and fittings made in USA with 316SS guarantee the high testing precision and stability.
Most of the liquid test medium are appicable.
Automatic stops and alarms against overload, overtime and leakage or other failures.
Stable and reliable IVS-Test Software, easy operation and user-friendly interfaces.

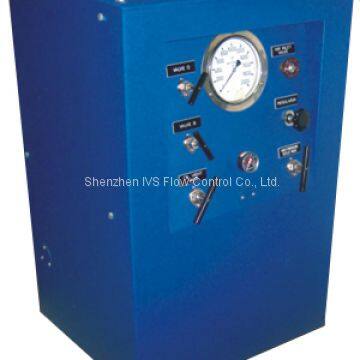

Ⅱ.Pressure Gauges Calibration Devices
Standard:
Customized or refers to the related industrial standards.
Application:
Pressure gauges calibrateion devices are widely used as the high pressure source in the calibration of pressure gauges/pressure transmitters.
Technical Data:
Test medium: Water, Oil, Refrigerant and Gases, etc.
Test port: 1 port (or Customized)
Test pressure: 0 ～ 5,000psi, 0～10,000psi, 0～15,000psi, 0～30,000psi, 0～60,000psi, 0～75,000psi, 0～100,000psi, 0～150,000psi（with second stage pressurizing）
Pneumatic control precision: ±0.003″ (6'' in total)
