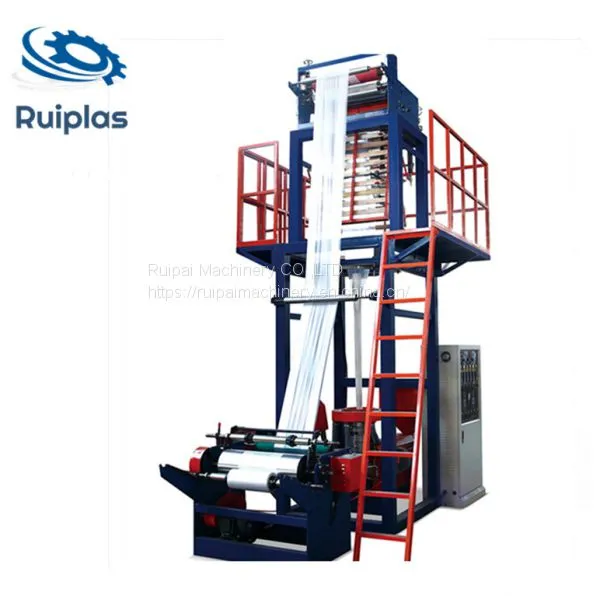

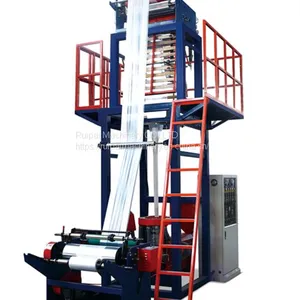

High Speed Single Winder Plastic Film Extruder

Material

HDPE LLDPE LDPE

Max.film width (mm)

600

800

1000

1200

Film thickness (mm)

HD:0.008-0.08

LD:0.02-0.15

Max.Extrusion Output

55 kg/h

60kg/h

80kg/h

100kg/h

Extrusion  Unit

Screw Diameter

Φ50

Φ55

Φ60

Φ65

Screw Length (L/D)

30:1

Gearbox

146

173

200

220

Screw and Barrel material

38CRMOALA

Main motor

18.5kw

22kw

30kw

37kw

Barrel’s cooling fan

250w*2

370w*2

370w*2

370w*2

Barrel Thermo Control

3 zone

3 zone

3 zone

4 zone

Die  head

Die Size for HDPE

Φ60/150

 Φ80/180

Φ100/220

Φ120/250

Screen Changer

Manual T type screen changer

Air Ring

Φ620

Φ760

Φ760

Φ760

Cooling blower

1.5 kw

2.2kw

2.2kw

3kw

Center steady stick

1pcs

Take-up Unit

Roller width of take up

Φ150×700mm

Φ150*900

Φ150*1100

Φ150*1300

Embossing roller

550mm

750mm

1000mm

1200mm

Take-up speed

10-80m/min

Take-Up Motor

0.75

1.1

1.1

1.5

Winding Unit

Winding type

single Winder

Winding speed

10-60m/min

Winder motor

6N/M

10N/M

10N/M

16N/M

Voltage

380V,3 PHASE,50HZ

Cover Dimension

4800*2200*4500 mm

5000*2400*4850mm

550*2600*5500mm

5500*2800*6000mm
