GlobalSat MR-350 Cable GPS With RS232 or USB , GPS Receiver

GlobalSat MR-350 Cable GPS With RS232 or USB , GPS Receiver thumbnail-1
GlobalSat MR-350 Cable GPS With RS232 or USB , GPS Receiver thumbnail-2
GlobalSat MR-350 Cable GPS With RS232 or USB , GPS Receiver photo-1

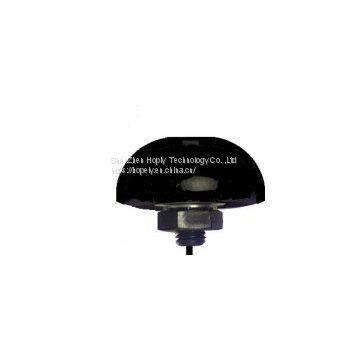

GlobalSat MR-350 Cable GPS With RS232 or USB , GPS Receiver photo-2
US$ 79.98 - 85 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
BU-353
Contact Supplier Request Quote Chat Now
Shenzhen Hoply Technology Co. ,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
60 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Model Number BU-353

MR-350 GPS Receiver

Feature
The MR-350 GPS Receiver can be utilized in a variety of applications that require a permanent mounting configuration. With bulkhead (through-hole) mounting and a low-profile housing, the MR-350 is completely self-contained and waterproof. It incorporating the latest SiRF Star III GPS chipset and an active patch antenna so you receive a high degree of GPS accuracy.

Typical application can include marine environments, aviation, commercial use such as fire truck, police cars and utility vehicles and buses. The extended 4.5 meters cable allows for easy routing to your PC behind headliners and side panels and terminates to a custom PS/2 connector for interfacing with one of the available cable kits that is purchased separately (USB/RS232).

Feature:
1. SiRF Star III High Performance GPS chip set
2. High sensitivity (Tracking Sensitivity: -159 dBm)
3. Extremely fast TTFF (Time To First Fix) at low signal level
4. Support NMEA 0183 data protocol
5. Built-in SuperCap to reserve system data for rapid satellite acquisition
6. Built-in patch antenna
7. RS232 interface or USB interface with appropriate cable kit
8. Waterproof
9. For Marine Navigation, Car Navigation or Fleet Management etc.
8. WAAS ENGOS is supported.


Specification
Chipset: SiRF Star IIIFrequency: L1, 1575.42 MHzC/A code: 1.023 MHz chip rateChannels: 20 channel all-in-view trackingSensitivity: -159 dBmAccuracyPosition: 10 meters, 2D RMSVelocity: 0.1 m/sTime: 1us synchronized to GPS timeDatumDefault: WGS-84Acquisition TimeReacquisition: 0.1 sec., averageHot start: 8 sec., averageWarm start: 38 sec., averageCold start: 42 sec., averageDynamic ConditionsAltitude: 18,000 meters (60,000 feet) maxVelocity: 515 meters /second (1000 knots) maxAcceleration: Less than 4gJerk: 20m/sec × 3PowerMain power input: 4.5V ~ 6.5V DC inputPower consumption: 70mAProtocolBaud rate: 4,800 bpsOutput message: NMEA 0183 GGA, GSA, GSV, RMC, VTG, GLLPhysical CharacteristicsDimension: 62mm diameter, 21mm heightCable length: 4.5 meters(15 feet)Operating temperature: -40°C to +85°C


Product Tags: GlobalSat , MR-350 Cable GP , gps receiver
