china supplier 100kw micro hydro design plants turbine
- 100 Yard / Yards per Month
- Shanghai or Chongqing
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 180 days
- China manufacture Lock sheet Generator QFSN-300-2-20B for Pacitcan TPP material
- Yawing horizontal axis wind generator 25kw
- 2kw Eolica wind generator
- 3KW 360 RPM Permanent Magnet Generator For Wind Turbine Or Hydro Turbine Customized Electric Motor
- 2000W Wind-solar Hybrid Home Wind Power Generation Five-blade portable manufacturers 48v wind generator turbine price
- 300w household small wind generator solar wind energy power generation system micro generator set home use wind turbines price
Product Details
Brand Name: | CSEC | Place of Origin: | China | Model Number: | n/m |
Type: | Other, Turgo turbine |
Product Description
The water diversion parts, runner and water drainage parts of Tubular turbine are on one axial line. The water flow directly and straightly through the runner without spiral casing. The water flow is axial from the pipe inlet to the draft tube outlet.
Tubular turbine generally has two categories: fully tubular and half tubular. The half Tubular turbine is divided into bulb, pit and shaft extension types, etc.
The generator’s rotor of the full tubular type unit is on the outer circle of turbine’s runner, whose application is less because of its difficult sealing.
For half Tubular turbine, the generator is separate from the hydro turbine:
Tubular type: Generator set is installed inside the airtight bulb body, which has a compact structure, straight passage shape, high hydraulic efficiency and so it is widely used.

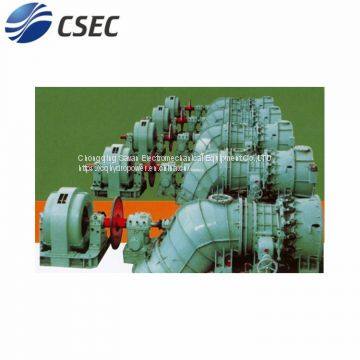

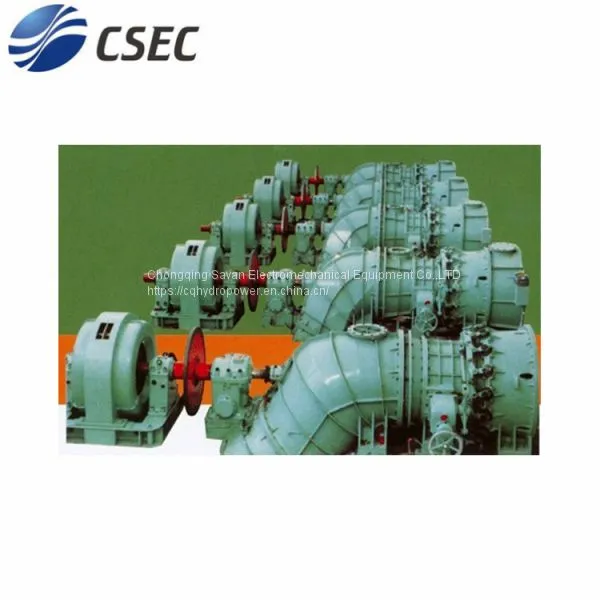

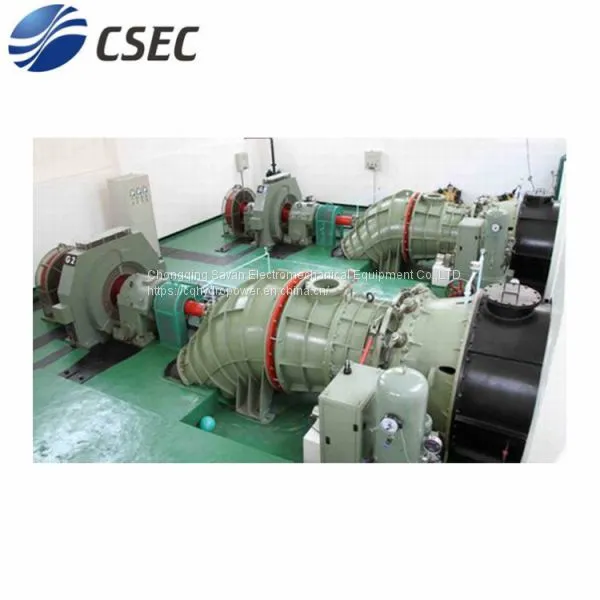

Shaft extension type tubular unit: The generator is installed outside, the main shaft of turbine extends to the outside of the draft tube.
Pit type tubular unit: The generator is installed inside a pit.
Hydro Turbine Generator units & Accessories with Unit Capacity 1 00KW- 1 00MW
Type of Hydro Turbine Generator Units: Francis, Kaplan, Pelton, Turgo, Tubular, Bulb etc.
Type Item | Francis | Kaplan | Pelton, Turgo | Tubular , Bulb |
Turbine | ||||
Model | HL | ZD, ZZ | CJ, XJ | GD, GZ |
Rated head (m) | 10 - 300 m | 2 - 70 m | 80- 1600 m | 2 - 20 m |
Rated flow (m 3 /s) | 0.3 - 100 | 1.0 - 200 | 0.1 - 20 | 1.0 - 250 |
Rated speed (rpm) | 68.2 – 1500 rpm | 68.2 – 750 rpm | 150 – 1500 rpm | 75 – 500 rpm |
Rated output (KW) | 100KW-100MW | 100KW-100MW | 100KW-80MW | 200KW-60MW |
Runner Diameter (M) | 0.4 – 6.0 m | 0.8 - 8.0 m | 0.8 - 6.0 m | 0.8 – 6.0 m |
Generator | ||||
Model | SF | SF | SF | SF |
Rated Capacity (KW) | 100KW-100MW | 100KW-100MW | 100KW-80MW | 200KW-60MW |
Rated output (KW) | 100KW-100MW | 100KW-100MW | 100KW-80MW | 200KW-60MW |
Rated voltage(KV) | 0.4, 6.3, 6.6, 10.5 | 0.4, 6.3, 6.6,10.5 | 0.4, 6.3, 6.6, 10.5 | 0.4, 6.3, 6.6, 10.5 |
Rated speed | 68.2-1500rpm | 68.2-750rpm | 150-1500rpm | 75-500rpm |
Pelton turbine Tubular turbine Francis turbine
Kaplan turbine Mini Hydro turbine Pelton Turbine Runner
PROJECTS REFERENCE
| ||||
Item | Project Name | Capacity | Scope &Service | Location |
1 | Mancahuara I Hydropower Plant | 1x1.6MW | Hydro Turbine Generator Set &Supervision | Peru |
2 | Georgia Hydropower Plant | 12MW | Pelton Runner &Installation | Georgia |
3 | Upper Madi Hydropower Plant | 2x12.5MW | Design, E&M Package, Installation and Commissioning | Nepal |
4 | Arisu Hydrpower Plant | 2×1.6MW+1×800KW | Hydro Turbine Generator Set &Supervision | Turkey |
5 | Dikshi Hydropower Plant | 3x200KW | E&M Package, Supervision and Commissioning
| India |
6 | Hidolena Hydropower Plant | 3×2.6MW | Hydro Turbine Generator Set &Supervision | Chile |
7 | HAVVA Hydropower Plant | 3x2.2MW | E&M Package &Installation | Turkey |
8 | Nicaragua Hydropower Plant | 2x1.7MW | Hydro Turbine Generator Set &Supervision | Nicaragua |
9 | Ecuador Hydropower Plant | 1x3MW | Pelton Runner | Ecuador |
10 | Tala Burn Hydrpower Plant | 1x2.4MW | Hydro Turbine Generator Set &Installation | New Zeland |
11 | Cehevers I &II Hydropower Plant | 2×4.54MW+2×3.45MW | E&M Package &Installation | Turkey |
12 | Adipasir 3 hydropower Plant | 1x320KW | Hydro Turbine Generator Set &Supervision | Indonesia |
13 | Shah Delir Hydropower Plant | 1x1.5MW | Hydro Turbine Generator Set | Afghanistan |
14 | Kukdong II Hydropower Plant | 1x800KW | Hydro Turbine Generator Set &Installation | South Korea |
15 | Russia Hydropower Plant | 1x1061KW | Hydro Turbine Generator Set &Supervision | Russia |
16 | Ilungu Ward Hydropower Plant | 1x370KW | Site Survey &Design, E&M Package, Installation and Commissioning, Supervision for Civil Engineering | Tanzania |
17 | Selishte Hydrpower Plant | 2x1000KW | Hydro Turbine Generator Set &Supervision | Albania |
18 | Misgar-II Hydropower Plant | 1x1000KW | E&M Package, Supervision and Commissioning | Pakistan |
19 | Barsuk Hydropower Plant | 3x1.7MW | Hydro Turbine Generator Set &Supervision | Russia |
20 | WPDA, Ghanche District | 2.7MW | Generators | Pakistan |
