Home > Packaging & Printing > Printing Machinery > Flexographic Printer > FX-series High Speed Flexo Press

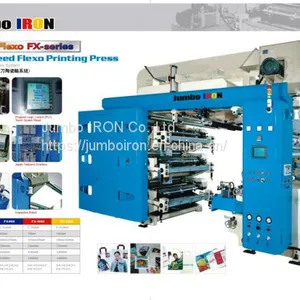

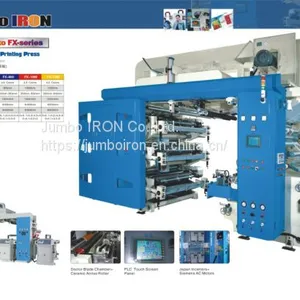

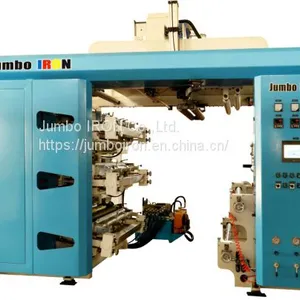

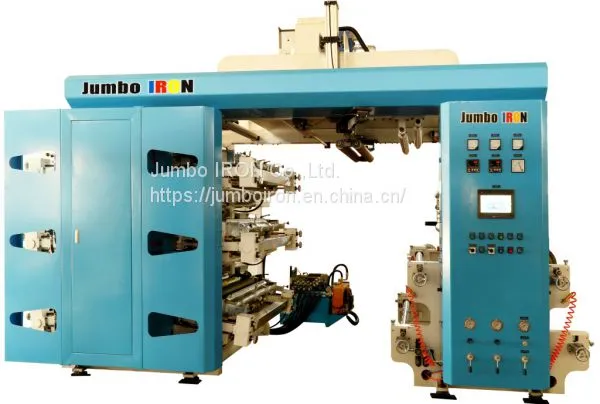

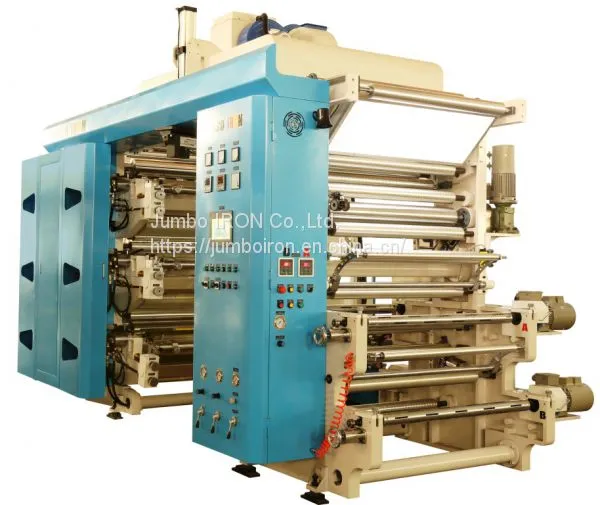

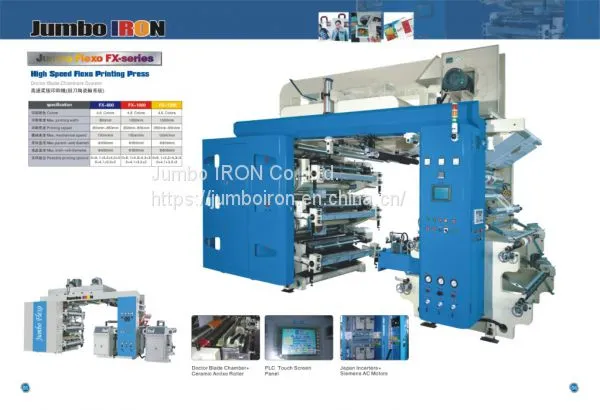

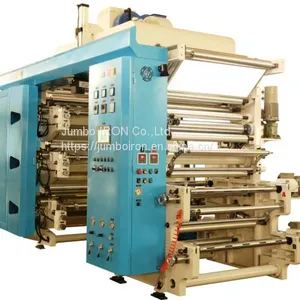

FX-series High Speed Flexo Press

Name: FX-series High Speed Flexo Press
Brand: Jumbo IRON
SKU: 158678748

FX-series High Speed Flexo Press thumbnail-1

FX-series High Speed Flexo Press thumbnail-2

FX-series High Speed Flexo Press thumbnail-3

FX-series High Speed Flexo Press thumbnail-4

FX-series High Speed Flexo Press photo-1

FX-series High Speed Flexo Press photo-2

FX-series High Speed Flexo Press photo-3

FX-series High Speed Flexo Press photo-4

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

Jumbo IRON

Place of Origin:

China

Model Number:

FX-800,FX-1000,FX-1300

Contact Supplier Request Quote Chat Now

Jumbo IRON Co.,Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name Jumbo IRON

Place of Origin China

Model Number FX-800,FX-1000,FX-1300

Usage Other, film printing

Condition New

Automatic Grade Other

Color & Page Multicolor

Plate Type Letterpress

FX-series High Speed Flexo Press

Doctor Blade Chambers+ Ceramic Anilox Rollers

Specifications	FX-800	FX-1000	FX-1300
Colors	4 , 6 colors	4 , 6colors	4 , 6 colors
Max. Printing Width	800mm	1000mm	1300mm
Printing Repeat	300mm-850mm	300mm-850mm	300mm-850mm
Max. Mechanical Speed	150m/min.	150m/min.	150m/min.
Max. parent-web diameter	Ø600mm	Ø600mm	Ø600mm
Maximum finish-roll diameter	Ø600mm	Ø600mm	Ø600mm
Possible printing options	0+6,1+5,2+4,3+3 0+4,1+3,2+2	0+6,1+5,2+4,3+3 0+4,1+3,2+2	0+6,1+5,2+4,3+3 0+4,1+3,2+2

Accessories	Optional Accessories
Unwind Air Shaft Ø3”	Doctor Blade Chambers with Inking Cyclic System
Rewind Air Shaft Ø3”	Ceramic Anilox Rollers
Unwind Auto Tension Controller	Ink Pneumatic Pump with ink tank
Rewind Auto Tension Controller	Cylinder Synchronous Forward/Backward
Edge Position Control (EPC)	Video Inspection system
Provisions For Reverse Printing	Double-Shafts Turret type Unwind section
Top Drying Chamber	Double-Shafts Turret type Rewind section

Jumbo Iron Technology Co., Ltd.

Contact: Jason Lee (Mobile:+8613829174864)

E-mail：jumboiron@outlook.com

Tel: 86769-87924191

Fax: 86769-87941117

Product Tags: High speed flexographic printing machine , Doctor Blade Chambers , Ceramic Anilox Rollers
