China machine manufacturer 3 phase 30kva automatic voltage regulator
1. SPECIFICATION
| Weight of the whole machine | 420kg |
| Phase | 3 phase |
| Rated Capacity | 30kva-500 kva |
| Frequency | 50 Hz |
| Rated Input voltage | 380 v |
| Rated Output voltage | 420v- 650v |
| Rated output current | 41A-577A |
| Size of Appearance of Machine | 88x130 CM |
| Item No. | TDJA-30 3 phase 30kva automatic voltage regulator |
| 3 phase 30kva automatic voltage regulator | Engineers available to service machinery overseas |
2. PRODUCTS

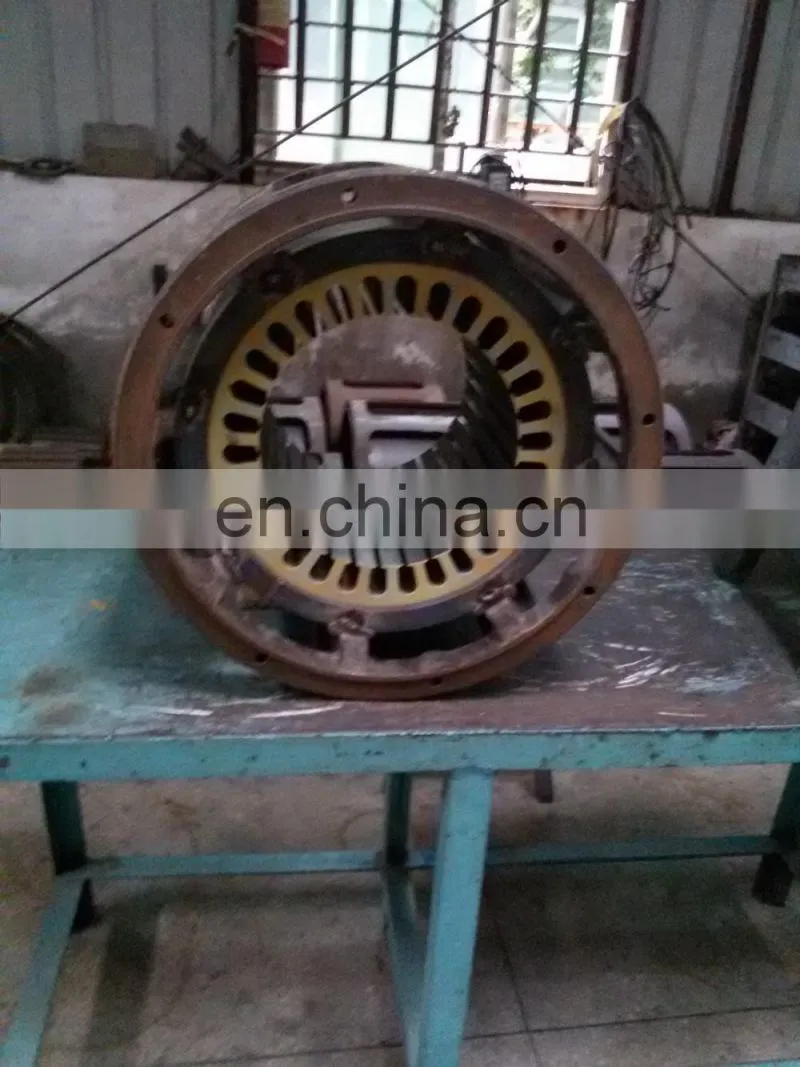

The structure of the induction voltage regulator is similar to the conventional vertical wound rotor asynchronous motor. When the relative position of stator is changed, the inductive potential phase( three phase) of stator winding will be changed, also the inductive potential amplitude(single phase), which ensures output voltage in a certain range. When the output voltage is beyond the range of rating accuracy, directly or indirectly take the output signal voltage of voltage regulator, by comparison with the reference voltage of voltage stabilizing controller, after amplification, the servo motor of voltage regulator drives reversible operation so that the output voltage can reach the rated value automatically in a certain accuracy range.
3. RELATIVE PRODUTS
Main products:automatic voltage regulator, Automatical molding machine, Low-pressure die casting machine, Gravity casting machine, Furnace, Core shooting machine, Mixing sand machine, abrator,etc..Widely used in plumbing, sanitaryware, car spares, vaives, iron cast lines, etc..
4. COMPANY PROFILE
Fujian HUIDA Voltage Regulator Manufacture Co.,Ltd. is one and only specialized company with more than 20 years production experiences of manufacturing high power voltage regulator and full-auto stablizator on our province. It is a member of China Power Source Society. It take the lead passed ISO9001 quality system certificate and has been well known for its science management, advanced technology, perfect inspect. The product is sold well at home and abroad including southeast Asia etc. It is deeply praised by the customers.
The company locates at Quanzhou Fuqiao Industrial Park Area in southeast coast of Fujian Province. The area reaches 9228 square meters. To meet the demands of power supply for large-medium-small size computer,National defence,Science and Research unit, import and high-precision equipment,we have eatablished good corporation relationship with many senior engineers with rich experiences from China and intellectualized person with ability research-empolder micro-computer automatic control voltage regulator series which assembled by adopts Motorola' parts, the accuracy of voltage regulator is very high,and has always been keeping its role as a pioneer in technique parameter, it has been chosen as 'famous-brand product of China" and "quality trustworthy product". All products have been insured by PICC.
