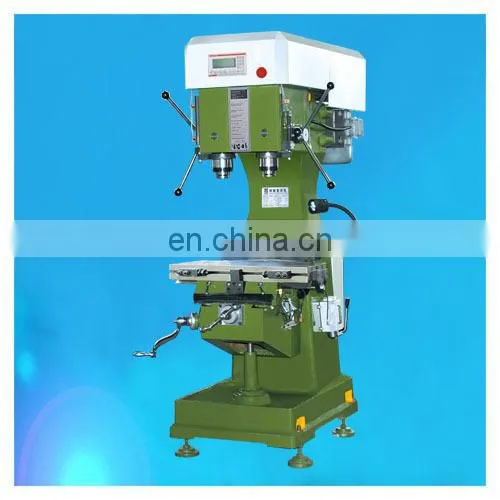

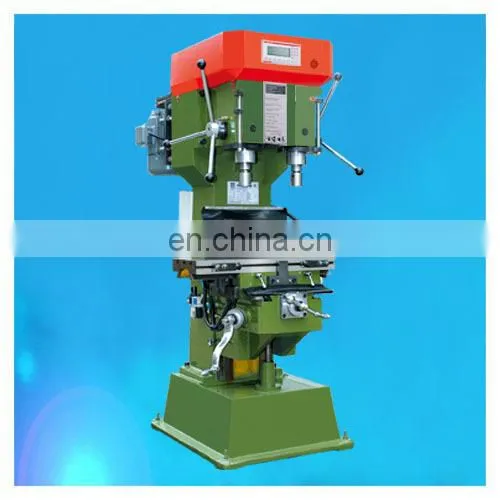

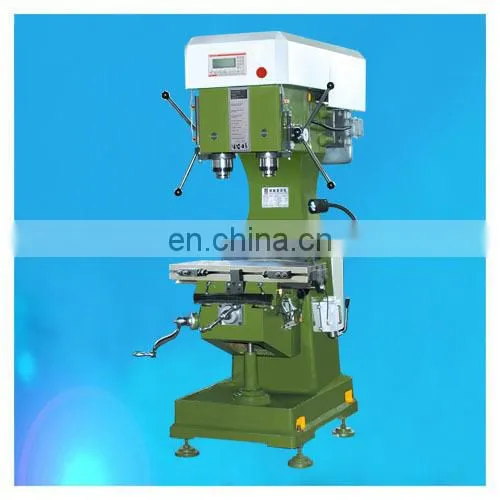

Automatic Double Spindle Drilling and Tapping Faucet Machine
US$ 1,000 - 4,000
MOQ: 1 Sheet
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Automatic Drilling and tapping machine
Model Number:
YD-95V Automatic Drilling and tapping machine
Payment & Shipping
Payment Methods:
Port of Shipment:
XIAMEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DL-70V/S Double-Shaft Manual Welding Combination Machine, Drilling and Tapping MachineUS$ 3,500 - 4,500MOQ: 1 Set -
DL-70V/S Hot Sales Vertical Drilling and Tapping MachineUS$ 3,500 - 4,500MOQ: 1 Set
-
DL-95V/S Multi Head Drilling and Tapping Machine, Combination MachineUS$ 5,700 - 6,700MOQ: 1 Set
-
DL-80V/S Manual Combination Welding Drilling and Tapping MachineUS$ 4,950 - 5,500MOQ: 1 Set
-
Hot Sale Multi Head Electric Drilling and Tapping MachineUS$ 5,700 - 6,700MOQ: 1 Set
Place of Origin
Fujian, China
Brand Name
Automatic Drilling and tapping machine
Model Number
YD-95V Automatic Drilling and tapping machine
After-sales Service Provided
Engineers available to service machinery overseas
Automatic Double Spindle Drilling And Tapping faucet Machine
| Max. Drilling Diameter:φ50mm |
| Max.Tapping Diameter: M45 G1 1/8″ |
| Drilling Spindle Motor: 3KW/4P |
| Tapping Spindle Motor: 2.2KW/6P |
| Spindle Rotation Speed: |
| Drillling: 790, 1200r/min |
| Tapping: 435, 620r/min |
| Spindle Feed Travel: Drilling: 140mm Tapping:120mm |
| Spindle Diameter: φ95mm |
| Spindle Taper: BT40(7:24-40#) |
| Distance between Spindles: 250mm |
| Distance from Spindle Face to Worktable: 460/160mm |
| Distance from Spindle Axis to Column:310mm |
| Worktable Size: 760×240mm |
| Worktable Travel: |
| Lateral Direction: 260mm |
| Longtitudinal Direction: 150mm |
| Diemensions: 1600×1900×2350mm |
| Weight: 1700kg |
| 1. Casted Iron 6 Pieces: Base, Column, Spindle Box, Lift Platform, Panel, Worktable |
| 2. All the spindle bearings come from NSK Japan. |
| 3. Power Heads with 2 Phase Feeding Speed Adjusting Device (The user can adjust the speed according to the pricision of the workpiece) |
| 4. All the spindle bearings come from NSK Japan. |
| 5. Electrical System: Electrical Control Cabinet, Imported Ermersion Programmable Controller(PLC), Man-machine Operating System, Schneider Touch Screen, Electrical Components. |

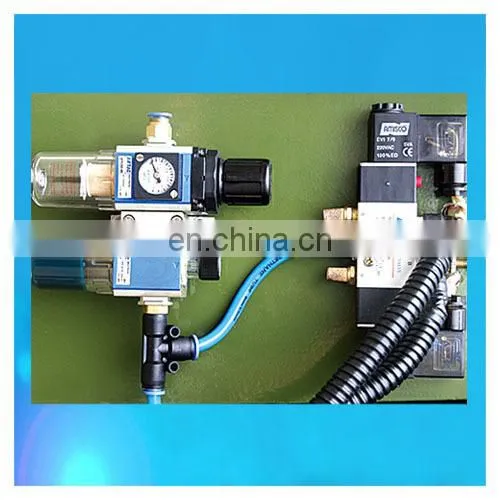

| 6. Hydraulic System: Individual Hydraulic station, with forced air cooling system, solenoid valve from Taiwan brand, Oil Pump from Taiwan CAMEL, Oil Pump Motor from Taiwan CT. |
| 7. Cooling System: Water Tank with volume 120L. |
| 8. Manual Lubrication system: with manual lubrication pump |
| 9. Sheet Metal |
| 10. Tool Box, including operating manual, guarantee Card, User Feedback Form, Qualified Certificate, Common Tools. |
| 11. Gravity Arbor, not including cutter tools. |
| 12. Optional: Hydraulic Vice YD-HQ-140 with Dove Tail Jaw |
