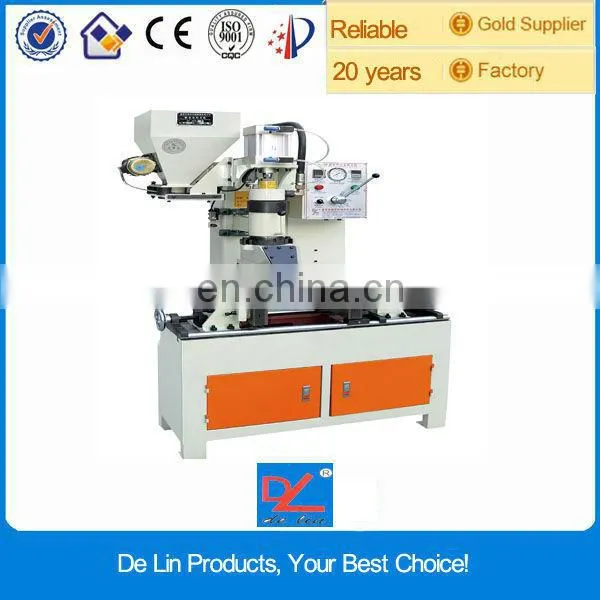

Hight quality mould Sand core box core shooting machine :
Introduction:
DL-400 heated core box shooter is a heated core box core-making equipment with a four-column operable structure which can be operated manually or automatically. It is applicable to sand core with a qualitative properties less than 3.2kg.
Its working principle is to shoot the dry resin bonded sand into a heated core-box. After being rapidly hardened to a certain thickness, high qualitysand core with a smooth surface and precise dimension is obtained.
Main features and working principle:
1. four-column operable structure which can be operated manually or automatically
2. shoot the dry resin bonded sand into a heated core-box.
3. High productivity: A cycle period only lasts for ten-odd seconds to tens of seconds, many sand cores can be produced at the same time.
4. the casting process redundancy is reduced.
Technical datas:
model |
Automatic Double Head Core Shooting Machine |
Maximum core box dimension |
(380x280x200)mm |
The maximum distance from worktable to shooting head |
(50-150)mm |
Shooting head right-and-left stroke |
125mm |
Effective clamping pressure of shooting head |
4900N |
Compressed air-pressure |
(0.45-0.7)kpa |
Sand hopper volume |
(5x2)kg |
Free air consumption |
0.1M3 |
Machine net weight |
855kg |
Electrical equipment installation capacity |
6.4kw |
|
Machine exterior dimension length* width* height
|
(1420x680x1650)mm |
Machine Certificate
Machine Show:
Production Process:
Samples Show:
Skype: Merry1004382637
Whatsapp: 86+13960339790
Wechat: Merry1004382637
