Specifications
used cnc vertical machining center1.Use imported PLC.
2.Use Man-Machine interface.
4.Use imported dividing disc
used cnc vertical machining center :
Vertical machining center, a fixture in continuous complete milling, drilling, expanding, reaming, boring, tapping and two-dimensional, three-dimensional surface, slope precision machining, aviation parts, auto parts, sanitary ware and other high-precision parts of the ideal processing equipment.
used cnc vertical machining center :
(A ) high-precision high-rigidity structure design
1 the main structural parts are made of high quality FC-30 cast iron, structural stability, permanent ensurequality.
2. spindle power head to rib reinforced structure, the spindle power head and the column contact length ratio appropriate to provide solid support spindle .
(B ) high rigidity , high speed feeding system
1. three-axis motor and direct drive precision ball screw adjustment , enhanced rigidity and improved accuracy.
2. Z -axis brake motor system in the fast displacement can maintain a high balance and agility to ensure accuracy.
3. three-axis linear slide, high rigidity , low noise, low friction characteristics, do rapid displacement and obtaining optimum cycle accuracy.
4. rapid displacement X / Y / Z axis 48m/min.
(C) Reliable ATC
(D ) man-machine interface
touch buttons , round , and text display , simple operation.
( E ) high-speed high-precision linear slide
1. linear slide zero gap , arc cutting , bevel cutting , surface texture uniform .
2. the choice of high-speed operation , and significantly reduces the required driver horsepower machine .
3. linear guides to rolling instead of sliding , friction loss, responsive, high positioning accuracy.
4. which can withstand the load of vertical and horizontal directions , and the contact surface of the track is still under load multiple points of contact , cutting rigidity does not decrease.
5. easy to assemble , with interchangeable , simple structure and lubrication .
6. high rigidity can provide smooth torque coupling link , to improve the stability of the servo positioning .

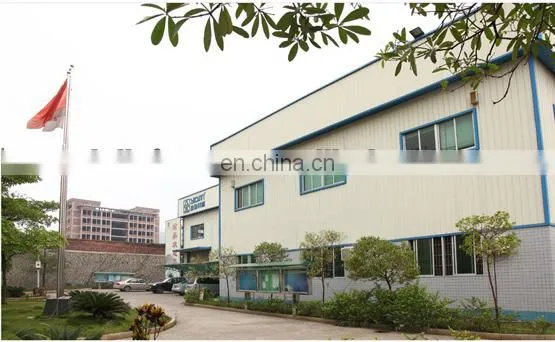

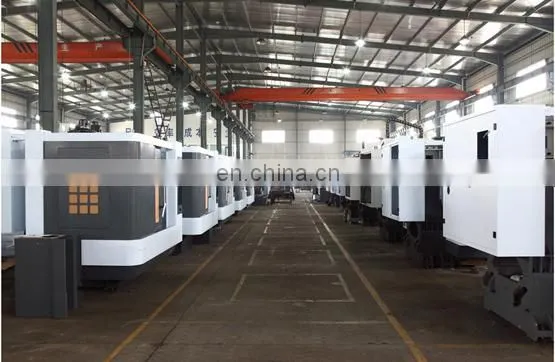

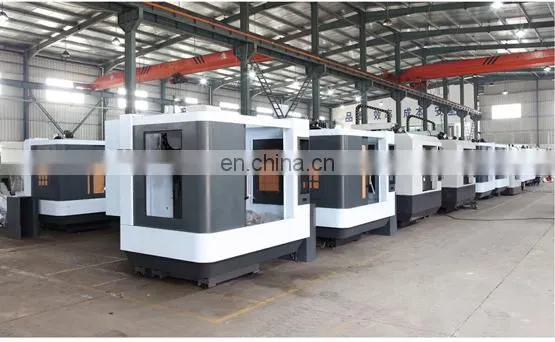

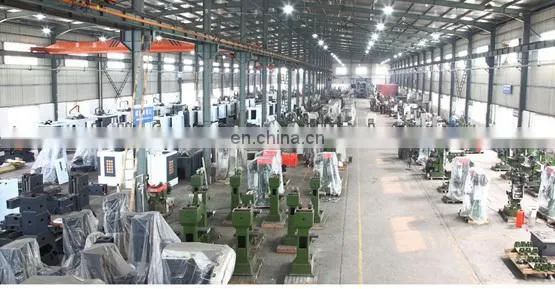

factory show:

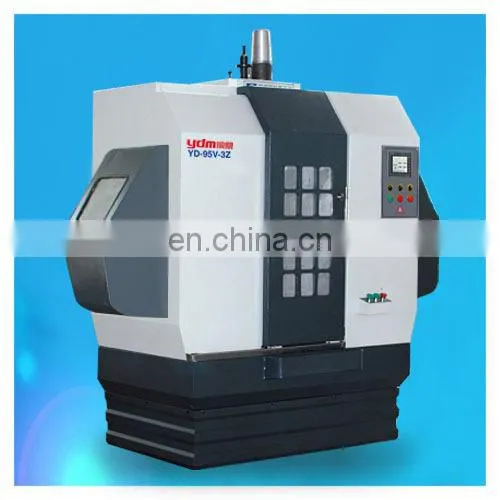

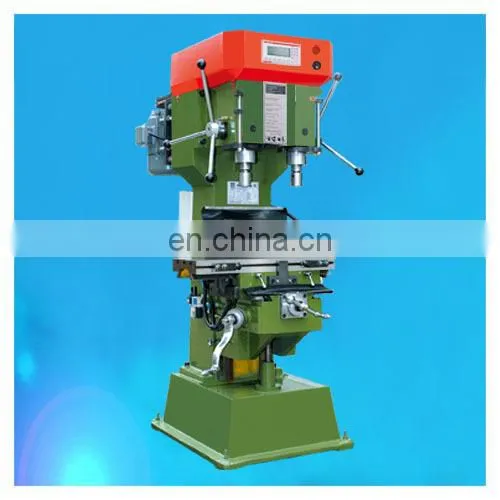

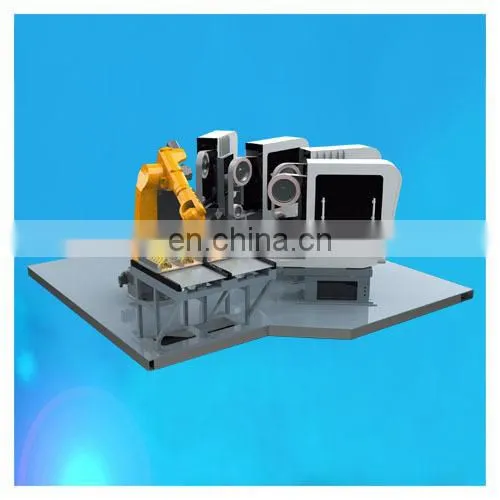

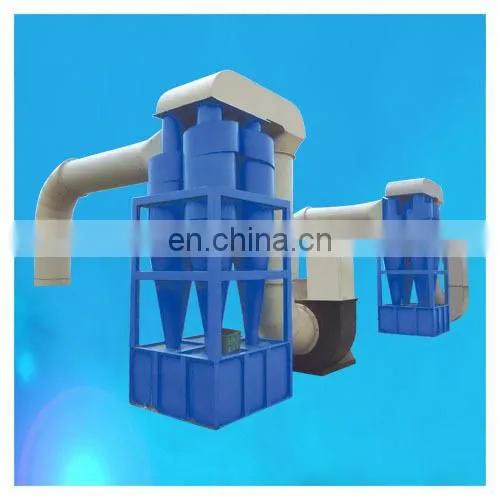

product show:
our service:
1.Reply your enquiry in 24 working hours.
2.Experienced staffs answer all your qyestions in professional and fluent english.
3.Customized design is availlable.
4.Exdusive and unique solution can be provided to our customer,by your our well-trained and professional engineers and staffs.
5.Special discount and protection of sales area provided to your distributor.
6.Do the best colorful metal cheep small wholesale in china.
contact us:
phone number: 86-13799540670
skype: nina2444264356
QQ:2444264356
