Specifications
cnc laser cutting machine producing line:1. dried sand shooting
2. sand core of any complicate level can be shot
Hight quality cnc laser cutting machine producing line and supplier :
Introduction:

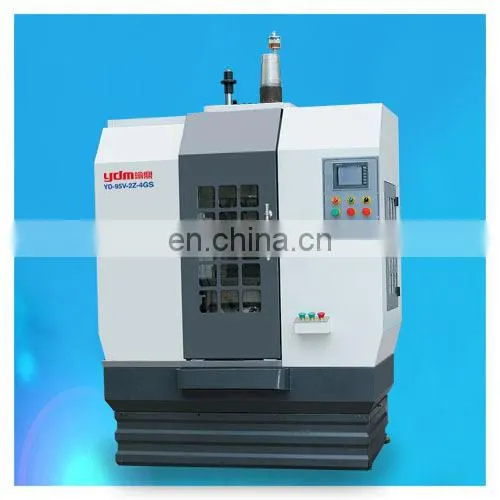

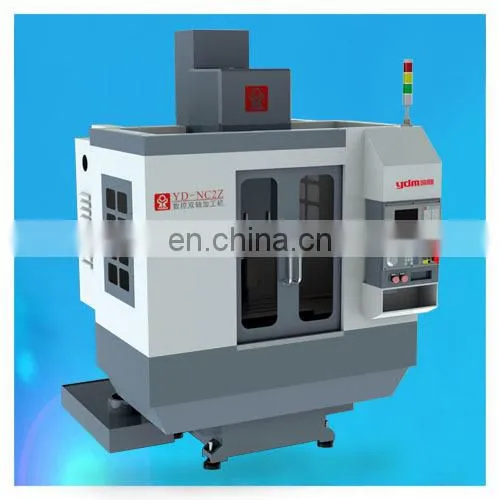

Vertical machining center, a fixture in continuous complete milling, drilling, expanding, reaming, boring, tapping and two-dimensional, three-dimensional surface, slope precision machining, aviation parts, auto parts, sanitary ware and other high-precision parts of the ideal processing equipment.
Vertical Machining CenterCharacteristic:
(A ) High-precision. High-rigidity structure design
1. the main structural parts are made of high quality FC-30 cast iron, structural stability, permanent ensurequality.
2. spindle power head to rib reinforced structure, the spindle power head and the column contact length ratio appropriate to provide solid support spindle .
(B ) High rigidity , High speed feeding system
1. three-axis motor and direct drive precision ball screw adjustment , enhanced rigidity and improved accuracy.
2. Z -axis brake motor system in the fast displacement can maintain a high balance and agility to ensure accuracy.
3. three-axis linear slide, high rigidity , low noise, low friction characteristics, do rapid displacement and obtaining optimum cycle accuracy.
4. rapid displacement X / Y / Z axis 48m/min.
(C) Reliable ATC
(D ) man-machine interface
Touch buttons , round , and text display , simple operation.
( E ) High-speed high-precision linear slide
1. Linear slide zero gap , arc cutting , bevel cutting , surface texture uniform .
2. The choice of high-speed operation , and significantly reduces the required driver horsepower machine .
3. Linear guides to rolling instead of sliding , friction loss, responsive, high positioning accuracy.
4. Which can withstand the load of vertical and horizontal directions , and the contact surface of the track is still under load multiple points of contact , cutting rigidity does not decrease.
5. Easy to assemble , with interchangeable , simple structure and lubrication .
6. High rigidity can provide smooth torque coupling link , to improve the stability of the servo positioning .
Factory showcase:
Being perfect is a dream.
Based on the principle of perfection. To give Best services to all customers.
Tel: 86+13960339790
