High purity iron billet,electric steel, electric magnetic iron, ultra low carbon magnetic iron bar,soft magnetic iron bar SUYB-1, Pure iron(SAE AMS 7707C Iron) ingot iron, iron billet,soft iron, Armco Pure iron, iron remelt ingot, Melting Grade Pure Iron Billet，ASTM A848 magnetic iron(alloy 1), Iron Cathode,were supplied by us, The chemical composition and physics characteristics, such as the coercive force is better than the International Standard. Our fabrication plant is equipped with large cutting machine, shearing machine, sawing machine, punch, lathe, mill machine, annealing furnace, and rattle barrel to meet the different needs of users. We check and audit the quality according to the quality certificate strictly.
Trademark B-A
Chemical composition %,max
C 0.003 Si 0.01 Mn 0.20 P 0.012 S 0.006 Al 0.15-0.50 Cr 0.02 Ni 0.01 Cu 0.02
Trademark B-AA
Chemical composition %,max
C 0.002 Si 0.006 Mn 0.12 P 0.007 S 0.001 Al 0.15-0.50 Cr 0.02 Ni 0.01 Cu 0.005
Trademark B-B:
C 0.003 Si 0.01 Mn 0.13 P 0.009 S 0.006 Cr 0.02 Ni 0.02 Al 0.03 Cu 0.02
Trademark B-BC:
C 0.002 Si 0.01 Mn 0.08 P 0.006 S 0.005 Cr 0.01 Ni 0.01 Al 0.01 Cu 0.01
Trademark B-CC:
C 0.002 Si 0.003 Mn 0.02 P 0.005 S 0.005 Cr 0.01 Ni 0.01 Al 0.005 Cu 0.004
Trademark B-CD:
C 0.002 Si 0.002 Mn 0.0005 P 0.0015 S 0.003 Al 0.002 Ni 0.005 Cr 0.002 Cu 0.0015
Type mm :

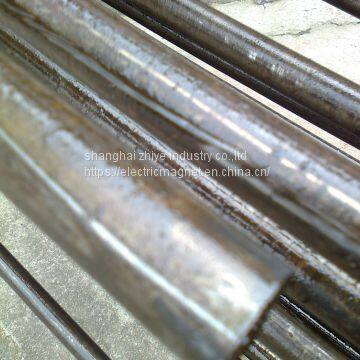

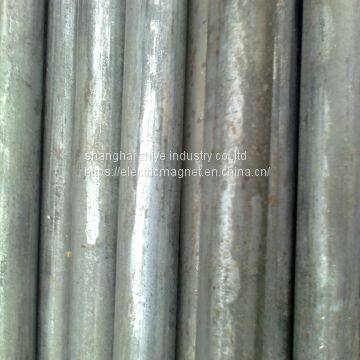

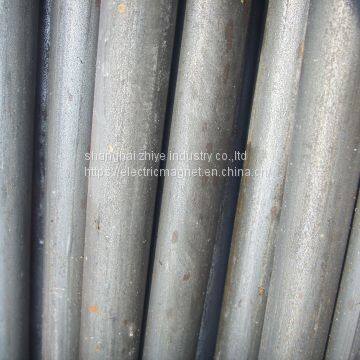

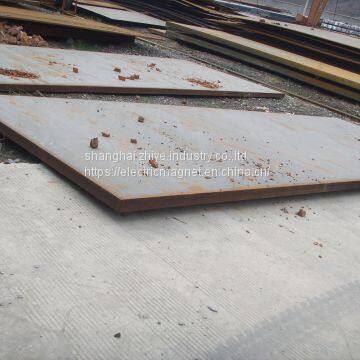

Medium plate and steel billet 8-250 ,plate coil 12-25 ,straight round steel dia6.5-dia300 ,round steel coil,cold drawn plate coil 0.5-2.5 tube,etc.
We can produce the special type which you ask
application:
a.make it in electric core.heel piece, gag bit in electric appliance device,telecommunication
b.Electric core of electric iron
c.Electromagnetic part of instruments and meters
d.Iron core and shell of direct-current dynamo
e.Electric part or magnetic part for car,tractor,lathe
f.Magnetic shielding apparatus
Charateristic
1 .good electromagnet character.Coercive force(Hc)low,high magnetic permeability. high saturation induction density Bs .stable magnet and no magnetic aging
2 high pure,electric pure iron,is full killed steel,refine,so the density is high,average,good,little gas, this is a reliable condition that customer simplify and cut down the anneal process of the parts.
3 cold drawn,hot roll,forge.Cold process,these is no problem such as lathe,drill,punch,bend,drawn.Hot process,such as forge,roll,there is little redsear sensibility,it is a good condition for doing in a large degree scope.
International standard
trademark |
coercive force Hc A/m oe |
coercive force aging Hc A/m oe |
Max.magnetic conductivity H/m Gs/Oe * not less than |
magnetic strength T Gs not less than |
||||||
B-A |
48.0 0.6 |
4.8 0.06 |
11.3 |
B200 |
B300 |
B500 |
B1000 |
B2500 |
B5000 |
B10000 |
1.20 |
1.30 |
1.40 |
1.50 |
1.62 |
1.71 |
1.80 |
||||
magnetic aging：keep 100 degree for 100 hours or Condition is 790 degree after 2 hours, after cooling with the furnace.
Applications
HIGH PURITY IRON is used largely as the basic material for (re-)melting of low-carbon,
stainless and acid-resistant steels, materials with a high nickel content, magnetic alloys as well as stainless and heat resistant steel castings in induction and vacuum furnaces.
HIGH PURITY IRON is also used in many applications of aviation construction, nuclear
technology, the production of magnets (pole cores, yokes and armatures), in automotive construction, as magnetic shielding, as welding rods and fuse wire, as gasket in the chemical and petrochemical industry, power station construction, as anti-corrosion anode and as galvanizing tank including equipment.
Mechanical Properties
Brinell Hardness (HB) |
||
HIGH PURITY IRON |
max. |
typical |
Cold-rolled strip / sheet |
105 |
90 |
Hot-rolled strip / plate |
105 |
90 |
Quarto plate |
100 |
90 |
Round bar |
110 |
95 |
Electrical and Magnetic Properties
Characteristics Typical Values
Initial Permeability |
300 – 500 |
Permeability |
3500 - 6000 |
Coercive Force |
60 – 120 A/m |
Saturation Induction |
2.15 T |
Density at 20 °C |
7.86 kg/dm³ |
Melting Point |
1536 °C |
Linear Expansion Coefficient |
12x10-6 1/°C |
Modulus of Elasticity |
207 kN/mm² |
The purer a metal is, the better it conducts electrical current. Materials of the greatest
possible purity are therefore required for current-carrying components. Even fractions of a percent of C, Si, P, S, Mn and Cu, which are found in normal types of steel, impact the electrical conductivity, which corresponds to the reciprocal value of the specific resistance.
Appliance of trademark from B-B to B-CD :
The raw material of all kinds precise alloy（super alloy）,electric alloy,soft magnet,amorphous alloy and permanent magnet such as NdFeB etc.
