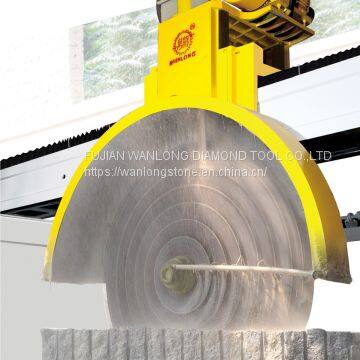

WANLONG Bridge Cutting Machine for Granite Block Cutting, China Multi Saw Blade Machine for Marble Block Cutting
US$ 20000 - 35000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
WANLONG
Place of Origin:
China
Model Number:
QSQ
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen port
Delivery Detail:
15 days
Related Products
-
QSQ-2200/2500/3000 Wanlong Granite Stone Cutting and Polishing MachineUS$ 18200 - 38000MOQ: 1 Set -
QSQ-2200/2500/3000 Quarry Stone Block Cutting MachineUS$ 18200 - 38000MOQ: 1 Set
-
QSQ-2200/2500/3000 Stone Block Saw Cutting MachineUS$ 18200 - 38000MOQ: 1 Set
-
QSQ-2200/2500/3000 Granite Stone Slab Cutting MachinesUS$ 18200 - 38000MOQ: 1 Set
-
QSQ-2200/2500/3000 Interlock Cutting Machine for StoneUS$ 18200 - 38000MOQ: 1 Set
Brand Name
WANLONG
Place of Origin
China
Model Number
QSQ
Type
Stone Cutting Machine
Use
Granite
Certification
ISO9001-2008,tuv
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
WANLONG
Weight
12000KG
Dimension(L*W*H)
7500*4000*5500
Production Capacity
100Sets/Month
Condition
New
Voltage
220/350v
Power(W)
45(55)

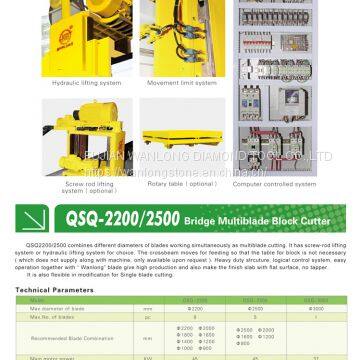

QSQ-2200/2500/3000 Bridge Multiblade Block CutterProduct Features：
QSQ2200 2500 3000 combines different diameters of blades working simultaneously as multiblade cutting
QSQ2200/2500/3000 combines different diameters of blades working simultaneously as multiblade cutting. It has screw-rod lifting system and hydraulic lifting system for choice. The crossbeam moves for feeding so that the table for block is not necessary ( which does not supply along with machine, only available upon request ). Heavy duty strcuture, logical control system, easy operation together with " Wanlong" blade give high production and also make the finish slab with flat surface, no tapper.
It is also flexible in modification for Single blade cutting.
| QSQ-2200 | QSQ-2500 | QSQ-3000 | ||
|---|---|---|---|---|
| Max.diameter of blade | mm | 2200 | 2500 | 3000 |
| Max.No. of blades | pc | 9 | 5 | 1 |
| Recommended Blade Combination | mm | 2200 2000 1800 1600 1400 1200 1000 800 600 | 2500 2000 1600 1200 800 | |
Recommend saw blade thickness |
mm | 6.5 | 32 | 8.0 |
| Main motor power | KW | 45(55) | 45(55) | 37(65) |
| Max.Cutting size(L x W x H) | mm | 3600*2100*950 | 3300(3800)00*2100*1100 | 2800(3800)*2100*1350 |
| Overall dimensions (L x W x H) | mm | 7500*4000*5500 | 7500(8000)*4000*5500 | 7500(8500)*4000*6100 |
| Water consumption | m3/h | 30 | 30 | 20 |
| Approximate weight | Kg | 12000 | 12000(13000) | 12000(14000) |
