NANAO ELECTRIC Manufacture NAZGF-Z Intelligent DC High Voltage Generator

NAZGF-Z Intelligent DC High Voltage Generator

Products Characteristics

1.NAZGF-Z series DC high voltage test set adopts the intermediate frequency doubler circuit, first to apply the latest PWM technology and high-power IGBT device. And according to the theory of electromagnetic compatibility, the use of special shielding, isolation and grounding and other measures. The DC high voltage test set to achieve a high quality, portable and can withstand the rated voltage discharge without damage.

2.It is used the modern single-chip microcomputer technology, the LCD display is used to replace the traditional meter and dial switch. it use the voltage feedback makes the voltage stability greatly improved. We specially designed 0.75UDC-1mA function to test Zinc Oxide Surge Arrester. In order to ensure the instrument is small in size, light weight, easy to carry, the instrument operating frequency is more than 30Hz.

3.We use high technical components from America and Japanese, and the international series chassis are made by Germany, which make it be practical and beautiful.

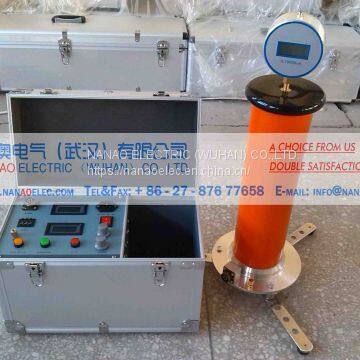

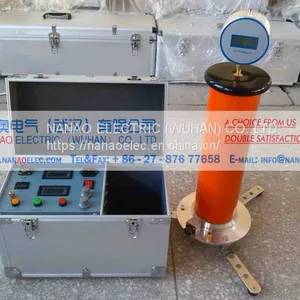

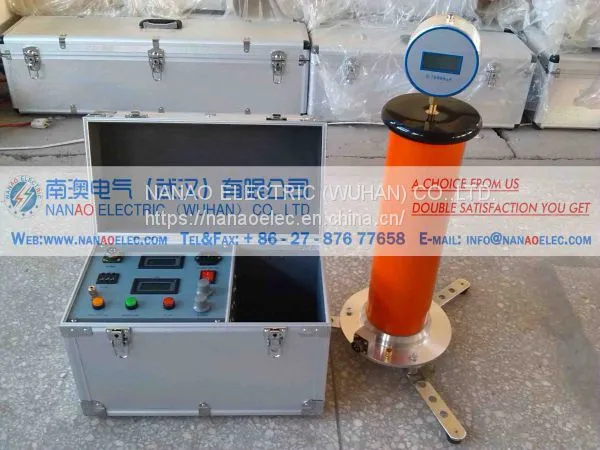

4.The multi voltage barrel is developed with Germany technology, medium frequency transformer is specially designed by our experts, with small size and large capacity. The foundation of multi voltage barrel is designed like the shape △- Y, it means when it is packed into the box, the foundation will shrink into triangle △, when you use the instrument, it will expand into the shape Y, that make the instrument more stable and convenient.

Product introduction

The new generation portable NAZGF DC Hipot test sets also named DC high voltage generator, it is NANAO ELECTRIC based on the latest national electric standard DL/T848.1-2004 "The technical specification of DC hipot tester". NAZGF DC hipot test sets are mainly used in the electric power sector, mining, metallurgy, steel and other power companies for DC hipot testing on MOA, power cables, transformers, generators and other electrical equipment.

Also called name

DC Hipot Tester, DC Dielectric Test Set, DC voltage generator, DC high voltage test set

The Characteristics of the products

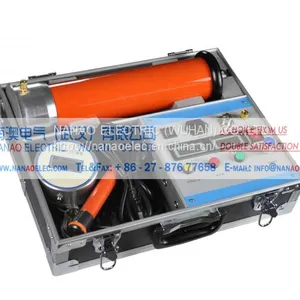

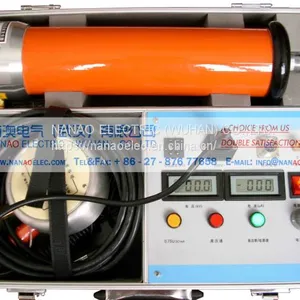

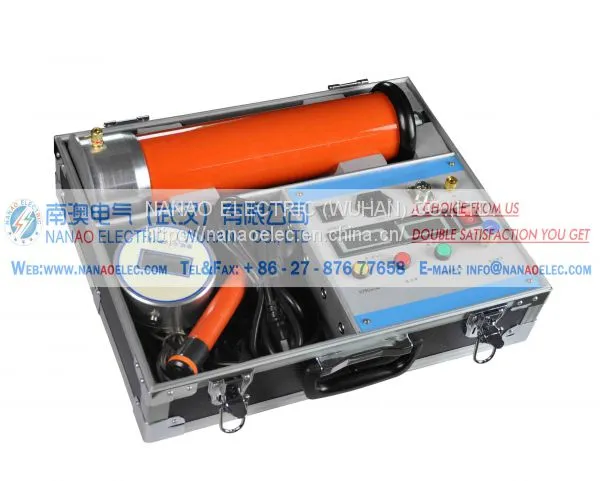

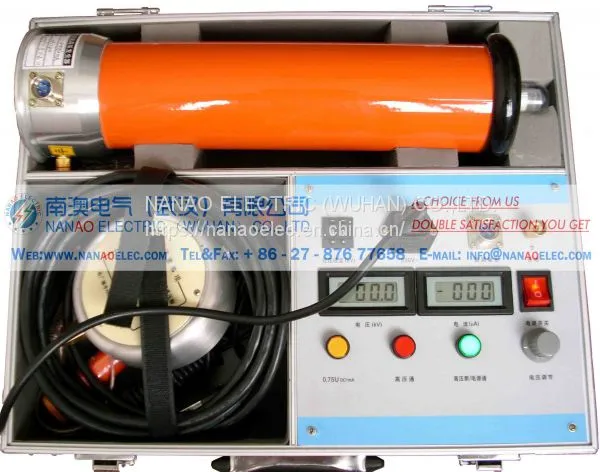

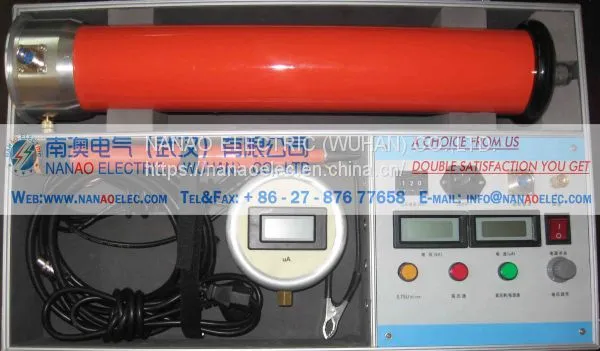

NAZGF Series DC Hipot test set(all in one、Separate type)

1.Adopt high frequency multi voltage circuit, PWM pulse width modulation technology and high-power IGBT devices.

2.Adopt voltage large feedback, output voltage is stable, ripple factor less than ≤1%.

3.Full range with smooth regulating, voltage regulate fitness precision ≤0.5%, stability≤1%，voltage / current error 1%（reading ±0.2KV）, current error ±1 digital.

4.Potentionmeter step up from zero.

5.75%UDC1mA functional button, easy for MOA testing, accuracy : 1% reading ±1%.

6.Over voltage protection adopts drawing code setting, is clear, error ±1%.

7.Multivoltage cylinder adopt new material, light weight, firm. The surface coated special insulation material, good electrical performance, strong moisture resistance.

8.Folding supporting type, long diameter, stable performance.

9.NAZGF-40KV integrated design, high voltage drag cable, easy for field testing.

10.NAZGF serious product meet the DL/T848.1-2004 technical requirement, and have been inspected by electric quality & inspection department, strict implementation of company standard.
