IFD57L series electromagnetic flowmeters is the advanced engineering designed magnetic flow meter; It has a dual cavity housing isolating the electronics from the environment. It uses the low frequency excitation, which provides noise free output.

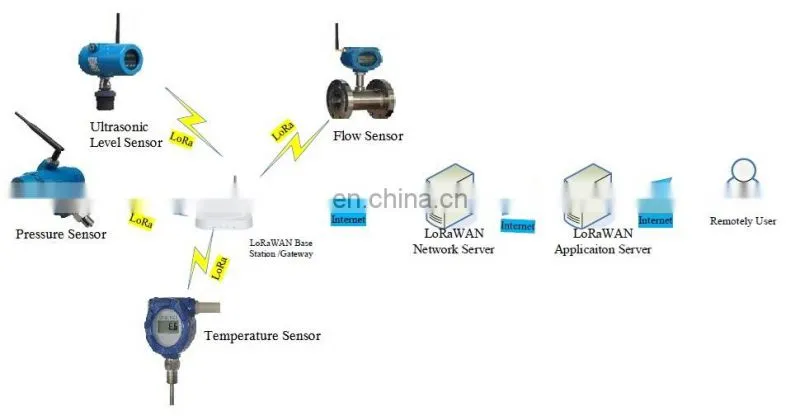

With LoRaWAN® module, it transmits the pressure via gateway to networks server and application server. User can monitor the status remotely. It is optional for different frequency, such as 470Mhz (China), 868Mhz (Europe), 915Mhz(USA), 923Mhz (Australia). As it is with algorithm of low power consumption, the internal battery can work for more than 1 years for one charge (With different parameter, 3 years lifetime is realized).
.
1)No Moving Parts, mostly No Pressure Loss;
2)Corrosion protection, abrasion resistant;
3)High accuracy, Stable performance;
4) LCD display, wireless signal output
5) Lora communication,emission range is 6-10KM
Power Supply |
24 VDC |
Power Consumption |
10W |
Accuracy |
± 0.5% accuracy of rate from 0.3-10 m/s ± 1.0% accuracy of rate from 0.1-0.3 m/s |
Repeatability |
0.2% |
Minimum Fluid Conductivity |
5.0 micromhos/cm |
Flow Direction |
Unidirectional or bidirectional, 2 separate totalizers (programmable) |
Zero-point Stability |
Automatic correction |
Ambient Temperature |
-4 to 140° F (-20 to 60° C) |
Electrode Materials |
SS316L; Optional: Titanium; Hastelloy Alloy C; Tantalum |
Liner Material |
PTFE, FEP, Hard Rubber |
Fluid Temperature |
PTFE: 120°C Standard (Customized: 180°C) Rubber: 60°C |
Pressure Limits |
1.0 Mpa; Optional 1.6; 2.5; 4.0 Mpa |
Coil Power |
Pulsed DC |
Pipe Spool Material |
SS316 |
Meter Housing Material |
Carbon Steel welded or SS304 (Sanitary Connection) |
Flange |
Carbon Steel - Standard (ISO 7005-1) ANSI, DIN and JIS Flange Connections Optional Stainless Steel Grounding Rings |
Small Size Pressure Size
GPRS,ZigBee,WiFi,433MHZ wireless Flow Sensor
GPRS,ZigBee,WiFi,433MHZ wireless Pressure Sensor
GPRS,ZigBee,WiFi,433MHZ wireless Temperature Sensor
GPRS,ZigBee,WiFi,433MHZ wireless Ultrasonic Level Sensor
