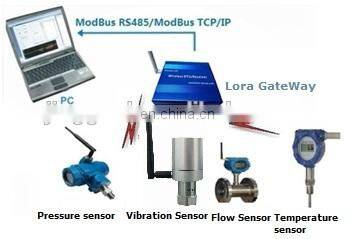

IVD57L Lora Vibration sensor is an online monitoring solution which can replace manual inspection work, developed for the key equipment of enterprises. The up to date wireless monitoring technology enables it to monitor both vibration and temperature signal, which will be transferred to database server. This will save large quantity of wiring work on site. Small workload of installation, easy maintenance, reduction of the reliability on the staff and the difficulty to monitor the dispersed equipment enable it to be widely used in enterprises.
l Wireless data transmission saves the wiring work of signal transmission, power supply and network.
l Free-frequency-range transmission frequency makes it possess strong anti-jamming capability and suitable for industrial on-site utility.
l Lora using can be not only save the consumption, but also raise the emission distance.
l Low consumption design; three batteries it can work for two years during normal operation.
l Small volume allows it to be mounted on various industrial fields
l It is capable of collecting both vibration and temperature signal simultaneously.
l Data backup diversifications: Received data can be transferred to the data server by net, or backup to local.
Acceleration range |
30g |
|
Frequency range |
10~10KHz |
|
Signal type |
Acceleration, velocity, displacement |
|
A/D conversion |
24bit |
|
Lines |
800,1600,3200 |
|
Temperature measurement | ||
Measuring range |
(-20~85)°C |
|
Measuring precision |
±1% |
|
Communication | ||
Communication type |
Lora |
|
Communication frequency |
433MHZ |
|
Transmission distance |
150 meters (plane distance) |
|
Basic index | ||
Dimensions |
Height: 80mm, Diameter:40mm |
|
Screw thread |
6mm |
|
|
Power supply |
(2/3AA) Three batteries |
2 years |
Protection grade |
IP65, waterproof, dustproof |
|
Weight |
220g |
|
Storage capacity |
128Kbytes |
|
Working temperature |
(-20~50)°C |
|
Chip |
SX1276 |
Spreading Factor |
6-12 |
Bandwidth |
7.8-500KHZ |
Bitrate |
0.018-37.5kbps |
Sensitivity |
-141dBm |
Frequency Range |
137 - 1020 MHz |
Emission Power |
17±1 dBm |
Sleep Current |
1.45uA |
Stand_By Current |
1.8mA |
Receiver Current |
12.15mA |
Emission Current |
93mA |
Max.DATA Rate |
300kbps |
Certification |
FCC&CE,IC,TELEC |
