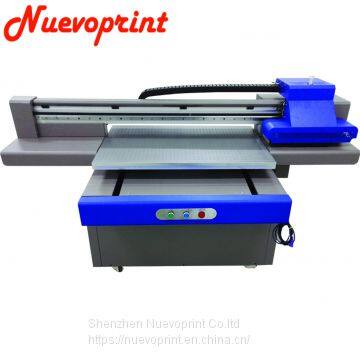

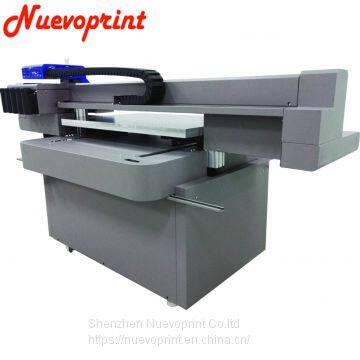

2018 newest uv printing glass machine with adhesion liquid suppliers NVP6090T
Feature:
1. This UV printer with Dual or three heads including TX800,DX5 and DX7 could be installed for your option.
One head for printing white, one head for color inks, CMYK and one head for varnish to improve printing speed and prolong head lifetime. Head TX800, DX5 or DX7 could be selected according to your preference.
2. Added vacuum platform device
The vacuum platform has installed onto printing machine already. Elaborately designed vacuum platform device make materials printed flat such as leather, sticker, etc.
3. Intelligent ink cartridge design
Staggered arrangement for uv printer heads to improve the printing efficiency of white, color inks and varnish oil. Two UV lamps make printing immediately dried.
4. Separate flash jet device
Separated flash jet groove to make uv printing head more smooth. Air cleaning system installed under beam to clean dust and water.
5. Max. 450mm height adjustment
Generally the max. printer height adjustment is 100mm.
But if you’d like, the height could be up to 450mm to meet your most printing requirements such as bucket, luggage box.
6.After-sale service
Training: Special engineers for 1-1 training
Service: Special English engineers to support you online from skype, Teamviewer for installation, operation and trouble-shoot in 24 hours Door service is available.
Max. Print Format |
24''*36'' (60x90cm) |
Max. Print Gap |
45cm |
UV Curing System |
LED UV lamp ( Water Cooling) |
Printing Direction |
Smart Uni/bi-directional UV Printing Mode |
Print Resolution |
· Standard Dpi: 720*1440dpi · Hi-def Dpi: 1440*1440dpi · Low Dpi: 720*720dpi · Max Dpi: 2880*2880dpi |
Printing Speed |
· CMYK+W · 720×720dpi/4Pass 4m2/H · 1440*720dpi/8Pass 3m2/H · 1440*1440dpi/16Pass 2.5m2/H · 2880*1440dpi/32Pass1.5m2/H · 2×CMYK · 720*720dpi/4Pass 4.5m2/H · 1440*720dpi/8Pass 3.5m2/H · 1440*1440dpi/16Pass 3m2/H · 2880*1440dpi/32Pass 2m2/H |
Materials to Print |
· Metal, Plastic, glass, wood, Ceramics · Acrylic, Leather, etc |
Power Requirement |
AC220/110±10,50HZ~60HZ，P 600W |
Print Quality |
True Photographic Quality |
Environment |
18℃-35℃ HR40%-80% |
Printer Head |
Three TX800/2*TX800+1*DX7 Printer Head |
RIP Software |
PhotoPrint RIP software |
Operation System |
Microsoft Windows 98 / 2000/XP/Win7/Win8/win 10 |
Interface |
USB Port |
Languages |
English |
Ink color |
CMYK+6W or 2*CMYK or CMYK+6W+6V |
Ink Type |
UV ink |
Ink System |
CISS Built Inside With Ink Bottle |
Ink Supply |
1000 ml/Bottle |
Height Adjustment |
Automatic with Sensor. |
Driving Power |
110 V/ 220 V. |
Power Consumption |
600W |
Ink Consumption |
30ml/SQM. |
Packing |
Wooden Case |
Machine Net Weight |
370Kg |
Machine Dimension |
L1450 x W950 x H850mm |
Media Feeding System |
Manual |
Our service
1.One year warranty
You can discuss operation and maintenance with our technician online support service by Skype, whatsapp, wechat, telephone etc. Remote control will be provided upon request.
2. Free exchange of new components
Our quality is guaranteed 100%, the spare parts can be replaced within one year free of charge, except for the print head and some consumable parts.
3. Free online consultation
The technician will keep online. No matter what kind of technical questions that you may have, you would get a satisfactory answer from our professional technician easily.
4. Free onsite installation and training
If you are able to help us with getting the visa and also would like to bear the costs involved like flight tickets, food, etc, we can send our technician to your office, and to give you a free installation and training for as long as you know how to operate it.
