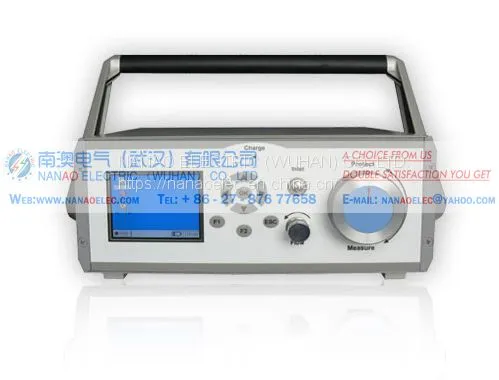

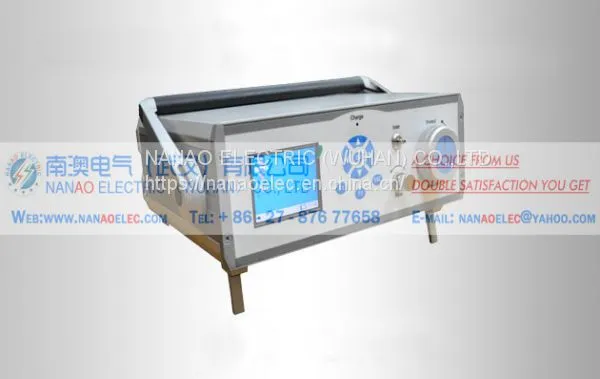

NANAO ELECTRIC Manufacture NAPZH type SF6 gas quality comprehensive analysis device

Also called name

SF6 gas quality comprehensive analysis and analysis device, SF6 gas quality comprehensive analysis and analysis device, SF6 gas quality concentration comprehensive detection and testing device, SF6 gas quality analyzer, SF6 gas quality analyzer

1.1 Functional Overview

   NAPZH SF6 gas quality comprehensive analysis and testing device, provides a simple SF6 gas discharge decomposition products on-site detection and fault diagnosis of new methods. The SF6 gas was flowed through the electrochemical sensor at a constant flow rate. The instrument directly measured the content of the main decomposition products of SF6 gas.

  All sensors use the British Alpha sensor, long-life design, to ensure the accuracy and reproducibility of measurement results.

  Main applications: fault location, routine testing, partial discharge monitoring, gas purification / filtration monitoring, fault high voltage contact inspection, SF6 decomposition product detection, check the switch decomposition products.

  The SF6 gas purity, concentration, temperature and humidity in the SF6 electrical equipment are analyzed and analyzed, and the gas quality of the SF6 gas is analyzed and judged by the dew point and the micro water content and the discharge decomposition product gas.

1.2 Main features

● Long-life SF6 ion detection module

●With fault diagnosis function: According to the concentration of the characteristic gas automatically fault diagnosis and put forward the corresponding treatment advice.

● No colorimetric tube, the sensor is directly measured

● High precision, good repeatability

● Built-in regulator and electronic mass flowmeter

● Large LCD display

● Lightweight and easy to use

● rechargeable battery-powered, AC-DC dual-use

● fast response, almost no warm-up waiting

● The measurement results are not affected by the ambient temperature

1.3 Technical Specifications

Measuring range

Sensor type: SF6 dedicated ion sensor

SO2 (including SOF2): 0 ~ 30ppm, sensitivity: ± 0.1ppm

             30 to 100 ppm, sensitivity: ± 0.5 ppm

H2S: 0 to 50 ppm, sensitivity: ± 0.1 ppm

        50 ~ 200ppm, sensitivity: ± 0.5ppm

Response time:<10 s

Working temperature: -20 ~ 50 ℃

Storage capacity: 100 test data

Sample flow rate: 0.3 ± 0.1L / min

Power supply: 220VAC ± 10% 50Hz, AC and DC, lithium battery, can work for hours

Working pressure:<1.5MPa

Display: LCD display in English, 3.6 color screen

Intake pipe: 5 m lengthened sampling tube, 2 m exhaust pipe

Gas interface: Fast interface

Communication Interface: USB2.0

Built-in expert diagnostic system SP2.0

Provides the data management analysis software, the historical survey management and so on the function, can produce directly reports the data file

Chassis shell: imported advanced wear-resistant plastic chassis, suitable for field operations
