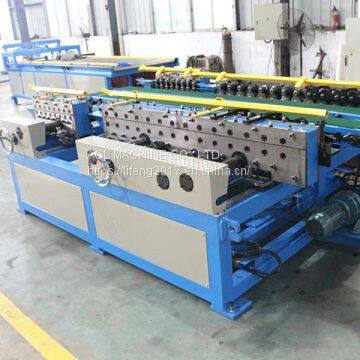

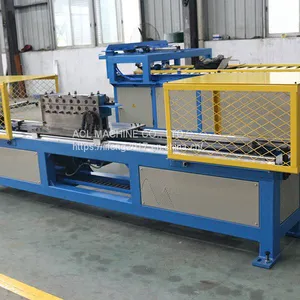

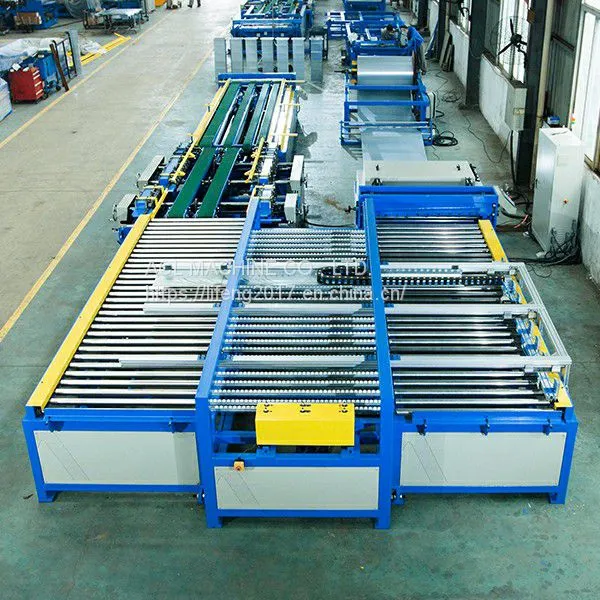

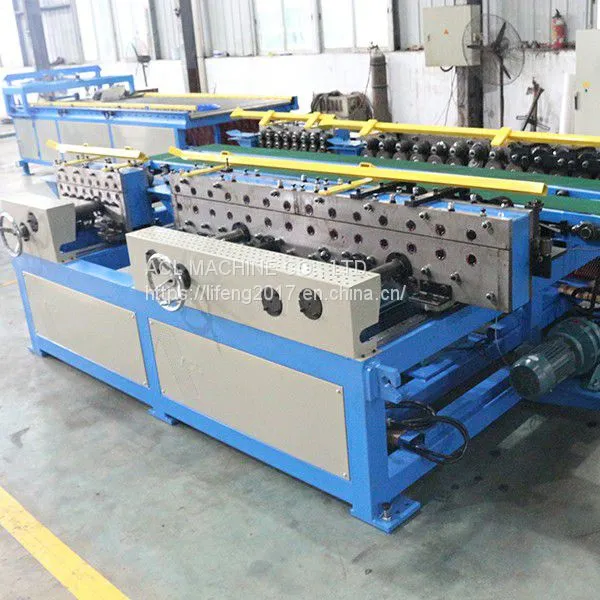

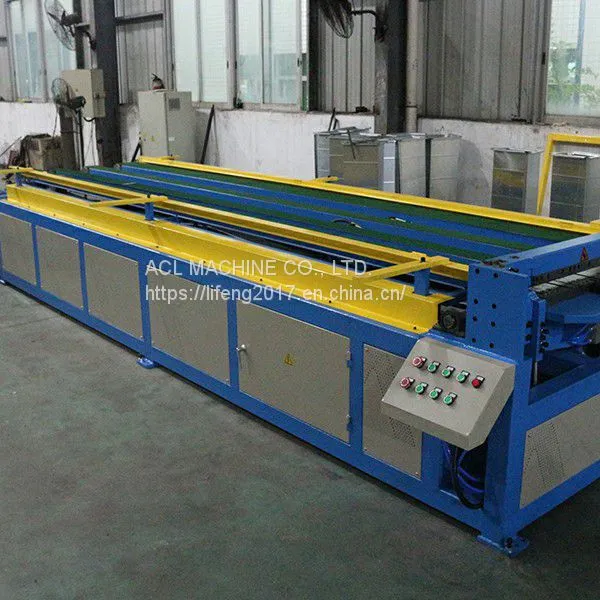

DUCT MANUFACTURE AUTO LINE V

Name: DUCT MANUFACTURE AUTO LINE V
Brand: Lifeng
SKU: 158544864
Availability: InStock

US$ 1800 - 2900 MOQ: 100 Sets

Key Specifications

Brand Name:

Lifeng

Place of Origin:

China

Model Number:

DUCT MANUFACTURE AUTO LINE V

Acl Machine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

foshan

Delivery Detail:

15 days

Brand Name Lifeng

Place of Origin China

Model Number DUCT MANUFACTURE AUTO LINE V

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Warranty lifeng

Weight 3500

Dimension(L*W*H) 1700*1400*2200

Condition New

Fuel Diesel

Start Electric Start

Cold Style Air-Cooled

Stroke 4 Stroke

Usage Automobile

Cylinder Single Cylinder

Model: DUCT MANUFACTURE AUTO LINE V
MATERIAL OF COIL: GALVANIZED STEEL
WEIGHT OF COIL: 6T, 8T, 10T
INNERDIA OF COIL: φ508mm; φ460~630mm
OUTERDIA OF COIL: ≤φ1100mm
THICKNESS: 0.5~1.2mm
WIDTH OF WORKING PIECE: 1000~1250mm (machine width 1300mm); 1220mm~1530mm (machine width 1600mm)
MACHINE DIMENSION: 27m x 4.2m
MINIMUN DUCT SIZE: SHAPE 150X150mm; L SHAPE 300X300mm
LENGTH OF WORKING PIECE: 600~4000mm

PRODUCT DETAIL INFORMATION

PRODUCT DETAILS

The basic parameters of the machine	Handling steel plate capacity	Thickness（mm）		0.5～1.2（Galvanized sheet）
		Galvanized sheet standard		GB/T2518-2008
		Plate width（mm）		1000～1250	1220～1530
		Board long（mm）		600～4000
	Number of Coil Specifications	Single weight（t）		6
		Inner diameter（mm）		508
		Outside diameter（mm）		≤1300
		Can be placed in quantity（volume）		4
	Productivity	Flat sheet speed（m/min）		≤15
		Production of L-type duct speed（second/Pieces）		≥47
		Production □ type duct speed（second/Pieces）		≥56
	Cutting accuracy	Length error（mm/m）		±0.5
		Diagonal error（mm/m）		±0.8
	Flip Accuracy	Fold position errormm/m		±1
		Folding angle error		±5°
	Duct processing capacity	Flange forming size（mm）	Angle flange	7～9
			Plane flange	35
			Hook bone flanges	12
		Joint angle seams Size（mm）		12
		The smallest cross section of the duct（mm²）	L Type	300×300
			□Type	160×140（t=0.5～1.0）
