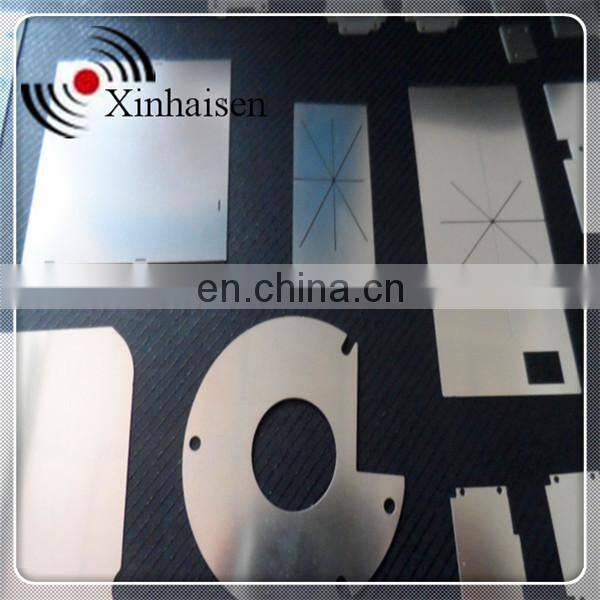

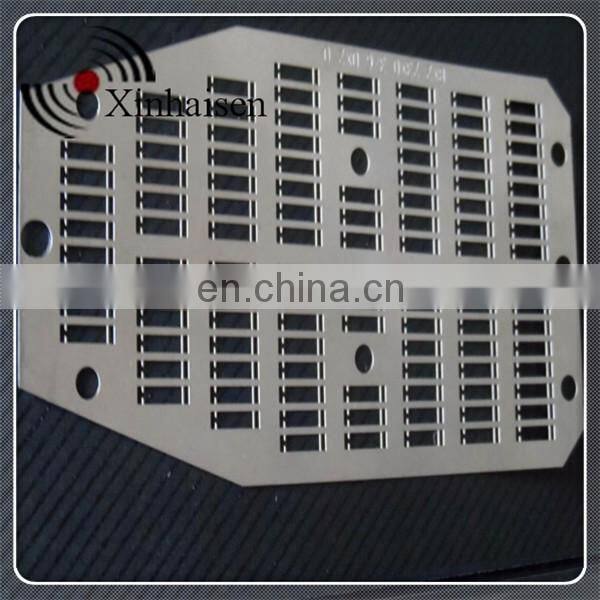

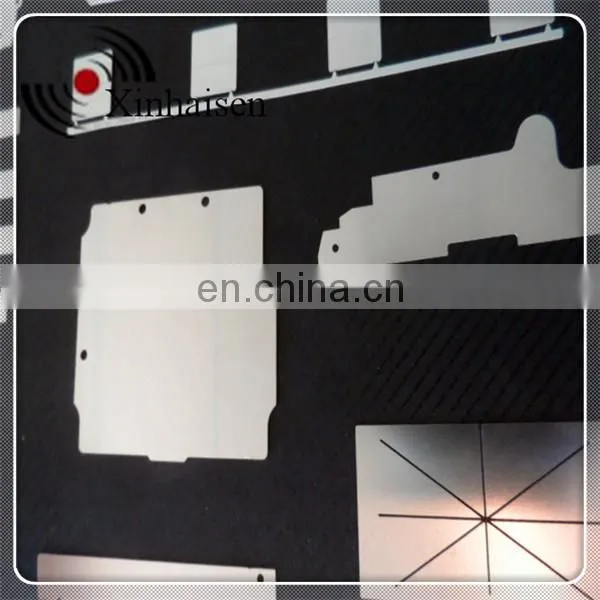

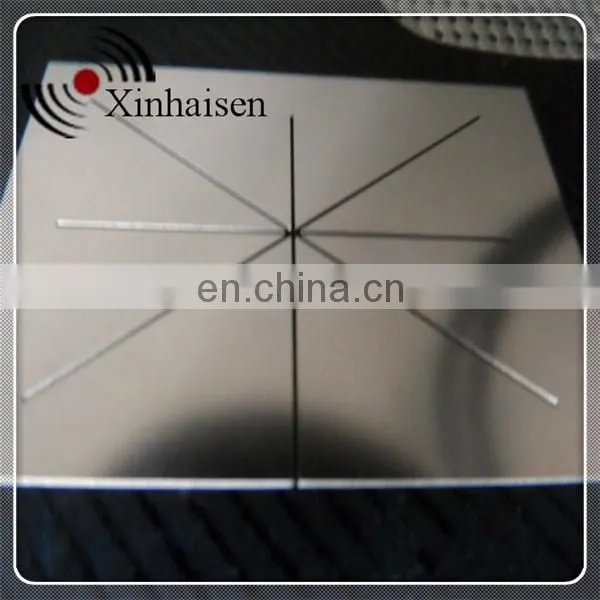

High precise chemical etched metal gasket/shims
Specification for the vcm spring | |
Part name: |
metal shims |
Material : |
stainless steel,brass,aluminum or customized |
Thickness(mm): |
0.03-0.04-0.05MM |
Application : |
used as parts of mobile phone camera,Tablet PC camera and video camera |
advantage of etching: |
burr free, smooth edge, good flatness |
Unit price: |
base on the material, material thickness , tolerance requirement and order quantity |
production capability: |
Mass production can be made by reel to ree exposure machine. 1000 square meter/day |
samples : |
Leadtime 1-3 working days |
Lead time for mass: |
usually 7 -10 working days |
checking machine: |
2D gauge |
We can provide different kinds of metal etching products according to the drawings offered by client.
1,Product thickness can be achieved between 0.03 to 1.5mm.
2,Product size can be achieved between 1* 1mm to 600*700mm
3,Smallest open hole is Ø 0.1mm.
4,Smallest line width is 0.025mm.
5,Product precision is ± 0.01mm (common difference). It’s generally 20% of material thickness
We can provide different kinds of metal etching products according to the drawings offered by client.
1,Product thickness can be achieved between 0.03 to 1.5mm.
2,Product size can be achieved between 1* 1mm to 600*700mm
3,Smallest open hole is Ø 0.1mm.
4,Smallest line width is 0.025mm.
5,Product precision is ± 0.01mm (common difference). It’s generally 20% of material thickness
Packing & Delivery:
packing detail:
Polybags, Packaging Paper, Protective Membrane or otherwise specified by customer
Delivery date:
within 7 days after payment(according to your quantity)
Our Advantages:
1. Low cost for gasket/meshes.
2. Advanced & Standardization workshops and facilitates.
3. High-tech and high precision manufacturing equipment.
4. Strict ISO14001:2004 , ISO9001:2008 standards.
5. ROHS compliant & enviroment friendly products.
6. Professional technical specialists and management personel
7. 100% in house inspection before delivery
8. All OEM/EDM is welcom
Tolerance we can achieve
thickness below 0.2 mm, tolerance can be controled in +/-0.015mm
thickness below 0.5 mm, toleracne canbecontroled in+/-0.05 mm
About our service :
1.Your inquiry related to our products or prices will be replied in 12 hours.
2.Well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM&ODM,any your customized requirements we can help you to design
4.Distributorship are offered for your unique design and some our current models.
5.Protection of your sales area,ideas of design and all your private information.
6.Sample can be supplied.
7.We also have strictly quality control
8.Delivery time strictly according to the contract
Quality control
Quality is always the key to our success and success of our customers. Our seventy highly experienced and well-trained and well-trained staff understood various industries' needs and be ready to deliver the best quality product on ime to each of our customers.Mission of company Customer focused, Pursuit of excellence, Continuous innovation.
QC Process
Strict control of work flow Purchase raw materials from reliable suppliers, Random checks and strict inspections on products before packing, no inferior products allowed, Finished products go through strict quality inspections before dispatc
CAD drawing
We will make the printer grid according to your CAD drawing (dxf or .dwg format will be better).
We promise will not leak any information to the third part. It will be ok if you want us to sign a NDA file.
Any requirements please don’t hesitate let me know.I will contact you at the first time.
