Help CenterPhoto Chemical Etching Fine Micro Filter Mesh Stainless Steel Filter Mesh
Related Products
-
Stainless Steel Etching Plate With High PrecisionUS$ 1.2 - 2.8MOQ: 500 Pieces -
Stainless Steel Perforated Metal Mesh Speaker GrilleNegotiableMOQ: 1000 Pieces
-
Chemical Etched Filter Screen With Competitive PriceUS$ 1.1 - 3.5MOQ: 500 Pieces
-
High Precision Quality Gold Coffee Filter Meshes With Factory PriceUS$ 0.5 - 1.99MOQ: 500 Pieces
-
High Precision Coffe Filter in Gold With LogotypeUS$ 1.5 - 2.8MOQ: 500 Pieces
Features:
- Design flexibility
- Low tooling cost
- Fast lead-times
- Simple assembly
- Explore multiple designs
- Saves board space
- Cost efficient
- Prototype to production
Filter mesh Specifications:
Name: |
filter mesh |
Material: |
quality 304 stainless steel |
Size: |
76*76mm |
Thickness: |
0.02mm-1.5mm |
Design: |
Welcome custom design Or we can help deign on your demand |
Surface finish: |
Plating, Polish, Brush Or on your demand |
Package: |
Plastic bag, Carton, wooden case |
OEM/ODM: |
Available |
MOQ: |
1000pcs (Negotiable) |
Features: |
Burrs free, No Plugging holes, Smooth edge |
Lead time: |
Within 3 days for samples, within 7-10 days for mass production |
Certificate: |
RoHS, ISO9001, ISO14001 |
Technique datas:
Process Capability | |
Material |
metal, Copper, Stainless steel, aluminum |
Material Thickness |
0.02-1.0mm can be etched, more than 1.0 mm to stamp |
Etch thru. Or Open holes |
0.02-0.1mm thick, T=+/-0.02mm 0.1-0.25mm thick, T=+/-0.03mm-+/-0.05mm 0.5-1.0mm thick, T=+/-0.1mm Smallest hole size are as same as material thickness. |
The Min. Size |
1mm*1mm |
The Max. Size |
700mm*600mm |
The Min. Opening precision |
Φ 0.02mm |
The smallest diameter |
0.01mm |
Elastic line tolerances |
+/-0.005mm |
Depth accuracy tolerance |
+/-0.005mm |
Special Technique |
Second on the bit,No connection point,etching and stamping |

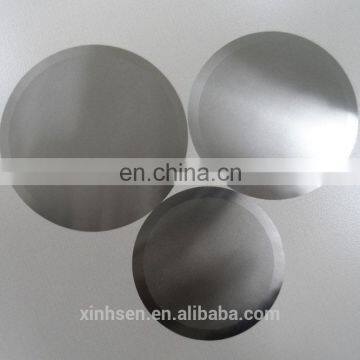

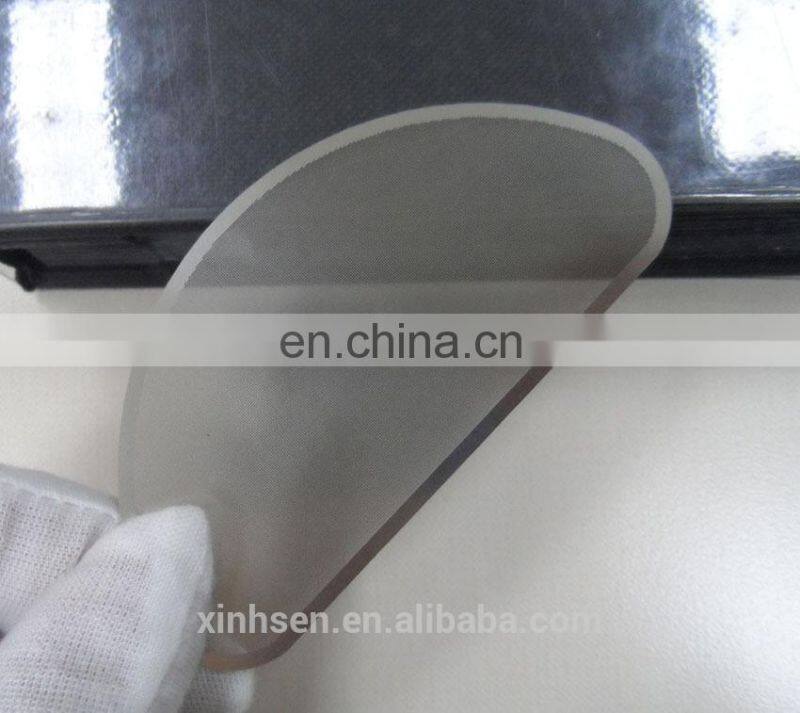

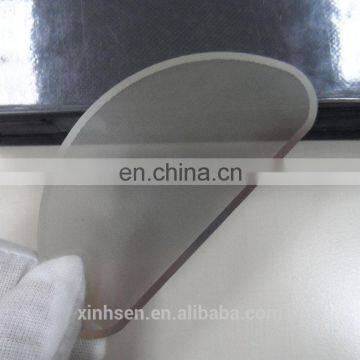

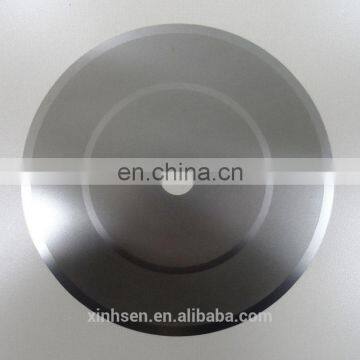

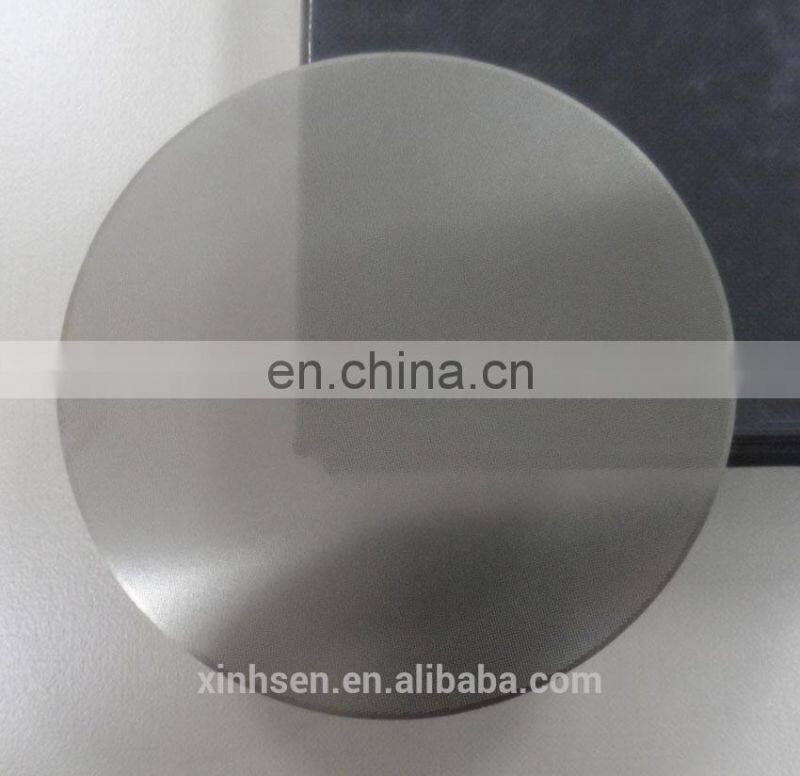

Filter mesh Images:

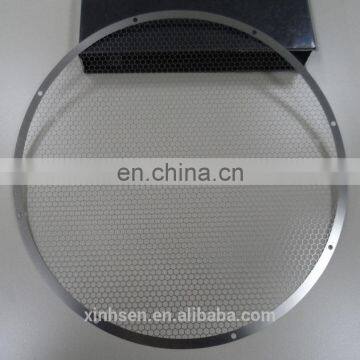

Hole patterns and Size:
Trading terms:
Product Name: |
filter mesh |
Price: |
According to specification |
Payment |
T/T, PAYPAL |
Trade terms: |
FOB,CFR,CIF,FCA,DDP,CPT,ELC,etc. |
MOQ: |
1000pcs |
Packing |
Paper, Plastic bag, carton, wooden case |
Shipping |
DHL, FEDEX,TNT,UPS,EMS,etc. |
Delivery time |
Within 1 day after production finished |
Load port |
Shenzhen |
Packing and Shipping:
Company Information:
About us
Photo etching
Photo etching - also know as chemical etching - is a highly precise, tightly controlled corrosion process which is used to produce complex metal parts with very fine detail.
Benefits of Photo etching
1, Burr and stress free
2, Fast and economical
3, Low risk for molding and design
4, Material diversity
5, High precision and Micro
6, No cost for complexity
7, Much Flexible
Production Flow:
Why Partner with Xinhaisen:
Advantages:
- 8 years`experiences and professional engineers can offer constructive suggestions on your item no matter what it is if on photo etching.
- We specialise in the challenging projects that other suppliers may shy away from.If decide to handle,we will keep working on it until to be the best.With this spirit, we have worked out many new production and technique challenges for our customers .
- Added value services, such as stamping,PVD coating,electronic plating,etc, can be used individually or in combination to meet the special requirements.
Quality Control:
Want to know more?
v Send an inquiry to us
Our professional sales are on hand to help with your item,your inquiry will be replied not later than 12 hours
v Call us
You can check our phone number on Contact us or in any product details on our website
v Visit our Company
Welcome to visit our company and factory,you can get the address in Contact info,or just call us to ask,best service will be offered.
We are waiting for you!!!
Contact Information:
Please feel free to contact me for more details, we will do our best to helpl.
Send Inquiry to This Supplier
