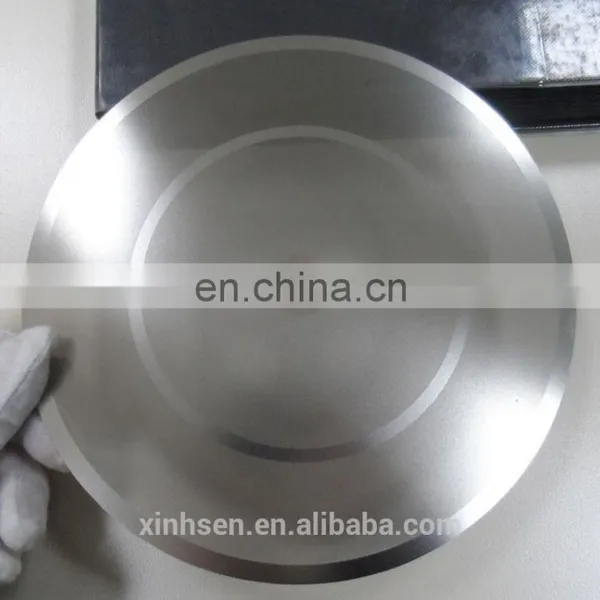

photo-chemically machined precision screens
We are professional in high precision metal meshes/screens for 8 years and welcome custom design. Ultra-precise Mylar tools are produced on precision plotters using conical light sources for direct etching of a transmittal image onto the screen. Custom shapes, sizes and filters are available in metals such as nickel, stainless steel, and copper.
- No burrs or rough edges
- No built in mechanical stresses
- Base metals are consistent and unaltered
Chemically etched stainless steel meshes/screens are key parts of rotary screen applications such as fruit separators, sugar processing, micro electronics, telecommunications, optics, aviation, computers, bio metrics and medical Celerons.
- Varius sizes are available with minimum orders
- Precision mesh designs are available in stock or by custom order
- Quality control includes statistical sampling for measurement compliance and 100% visual inspection
- Low sampling cost and short lead time

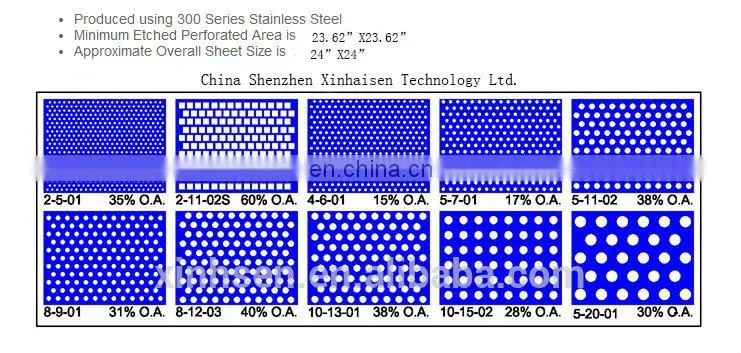

Below are the some standards on hole,but Custom design is welcome.
| Part No. | Thick.(inch) | A hole size | Tolerance | B on-center | Open% |
| 2-5-01 | 0.002 | 0.005 | +/-0.001 | 0.008 | 35% |
| 2-11-02s | 0.002 | 0.011 | +/-0.001 | 0.014 | 60% |
| 2-20-03s | 0.002 | 0.02 | +/-0.001 | 0.023 | 80% |
| 2-33-04s | 0.002 | 0.033 | +/-0.001 | 0.042 | 60% |
| 4-6-01 | 0.004 | 0.006 | +/-0.001 | 0.01 | 15% |
| 5-7-01 | 0.004 | 0.007 | +/-0.001 | 0.012 | 17% |
| 5-11-02 | 0.005 | 0.011 | +/-0.001 | 0.017 | 38% |
| 8-9-01 | 0.008 | 0.009 | +/-0.0015 | 0.0155 | 31% |
| 8-9-02** | 0.008 | 0.009 | +/-0.0015 | 0.0155 | 31% |
| 8-12-03 | 0.008 | 0.012 | +/-0.0015 | 0.018 | 40% |
| 10-13-01 | 0.01 | 0.013 | +/-0.0015 | 0.02 | 38% |
| 10-15-02 | 0.01 | 0.015 | +/-0.0015 | 0.025 | 28% |
| 15-20-01 | 0.015 | 0.02 | +/-0.002 | 0.035 | 30% |
| 15-50-02 | 0.015 | 0.05 | +/-0.002 | 0.075 | 40% |
| 15-25-03 | 0.015 | 0.025 | +/-0.002 | 0.044 | 25% |
| 18-20-01** | 0.018 | 0.018 | +/-0.002 | 0.035 | 25% |
| 25-33-01** | 0.025 | 0.025 | +/-0.003 | 0.055 | 28% |
Product Details On Above Products:
photo-chemically machined precision screens
Product Description | |
Product name: |
precision screens |
Material: |
Stainless steel or customized |
Size: |
80mm*80mm |
Thickness: |
0.1mm |
Technique: |
High precision etching |
Hole: |
0.01mm |
Spacing |
0.018mm |
Hole shape: |
Round |
Surface finish: |
Polished |
Features: |
No burrs,No broken point,no plugging holes |
Application: |
Fiber filter,Textile machines or customize |
Certificate: |
RoHS,ISO |
Inspection: |
Two-dimension inspection machine,magnifier |
Other Related Items | |
Price: |
According to product specification |
Sample Offer: |
Within 3-6 days |
Payment: |
T/T,L/C,Paypal,Western Union |
Lead time for mass production: |
Within 6-10 days after payment |
Production ability: |
10000pcs/week |
Metal process methods available: |
Stamping,Chemical etching,Laser cutting |
Acceptable file format: |
DWG,DXF,IGES,PDF,JEPG |
| standard met: | Customer specification,2D CAD drawing |
Please feel free to send us an inquiry on stainless steel tiny hole mesh, we will do our best to help.
