Xinhsen manufactures various custom metal meshes with photo chemical etching, including filter meshes, seives, screens and grilles. Widely used in Medical implants, Particle separation, Smoke detectors, High-end automotive interiors, Fuel filtration amd so on.
With advanced photo etching technique, we can make sure:
1,consistent cross-sectional thickness
2,accurate aperture shapes / sizes
3,Flexible opening area
4,Special features and differing aperture shapes
5,Burr and stress free and no sharp edge meshes
6,Various material options
Professional filter mesh manufacturer, specilising in photo chemical etching...
Filter mesh Specifications:
Name: |
Etching perforated stainless steel sheet water filter shower with low price |
Material: |
quality 304 stainless steel |
Size: |
customized |
Thickness available: |
0.03mm-1.0mm |
Design: |
Welcome custom design Or we can help deign on your demand |
Surface finish: |
Plating, Polish |
| Package: | Plastic bag, Carton, wooden case |
OEM/ODM: |
Available |
MOQ: |
1000pcs (Negotiable) |
Features: |
Burrs free, No Plugging holes, Smooth edge |
Lead time: |
Within 3 days for samples, within 7-10 days for mass production |
Certificate: |
RoHS, ISO9001, ISO14001 |
Hole patterns and Size:
Photo etching
Photo etching - also know as chemical etching - is a highly precise, tightly controlled corrosion process which is used to produce complex metal parts with very fine detail.
Benefits of Photo etching
1, Burr and stress free
2, Fast and economical
3, Low risk for molding and design
4, Material diversity
5, High precision and Micro
6, No cost for complexity
7, Much Flexible

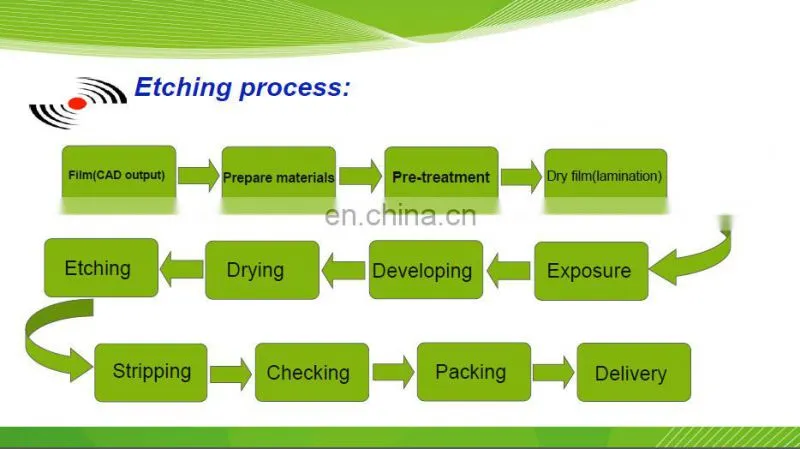

Production Flow:
Technique datas:
Process Capability | |
Material |
metal, Copper, Stainless steel, aluminum |
Material Thickness |
0.02-1.0mm can be etched, more than 1.0 mm to stamp |
Etch thru. Or Open holes |
0.02-0.1mm thick, T=+/-0.02mm 0.1-0.25mm thick, T=+/-0.03mm-+/-0.05mm 0.5-1.0mm thick, T=+/-0.1mm Smallest hole size are as same as material thickness. |
The Min. Size |
1mm*1mm |
The Max. Size |
700mm*600mm |
The Min. Opening precision |
Φ 0.02mm |
The smallest diameter |
0.01mm |
Elastic line tolerances |
+/-0.005mm |
Depth accuracy tolerance |
+/-0.005mm |
Special Technique |
Second on the bit,No connection point,etching and stamping |

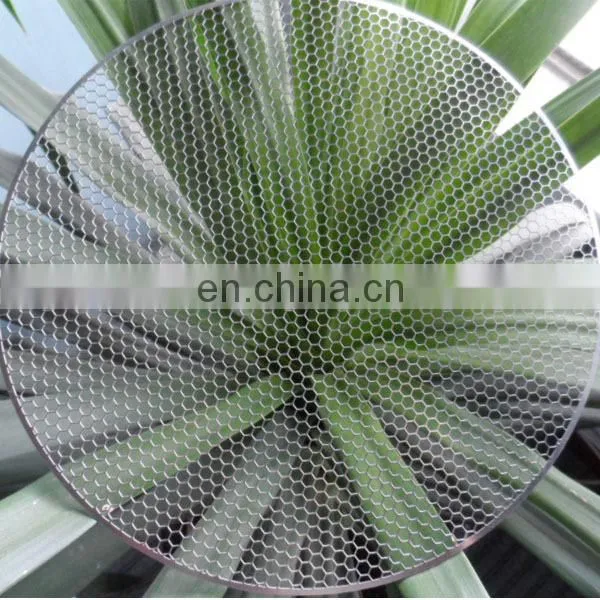

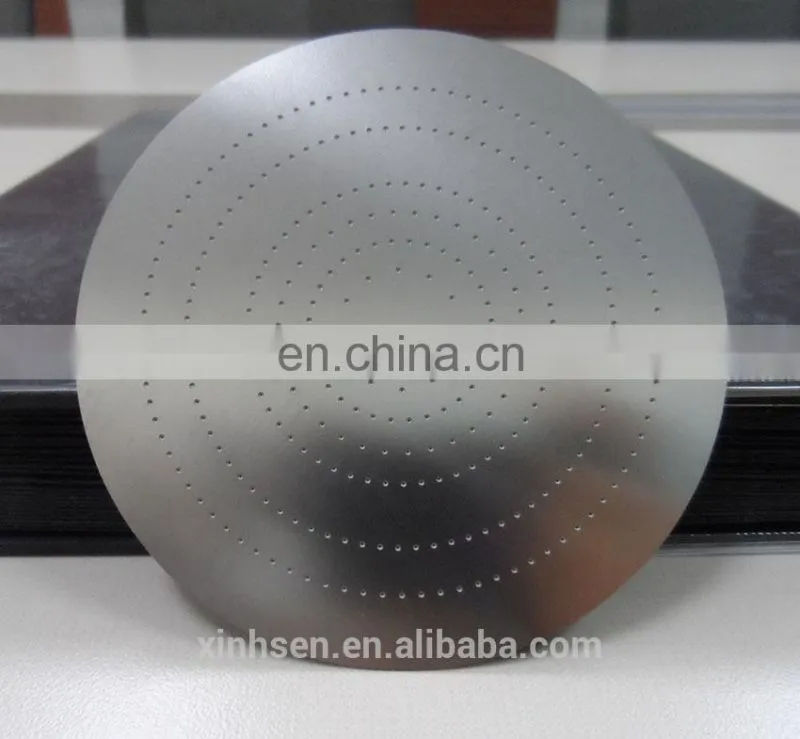

Etching perforated stainless steel sheet water filter shower with low price

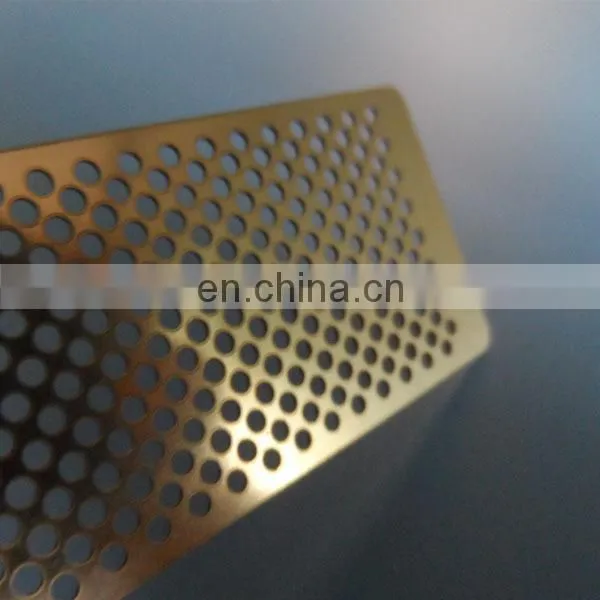

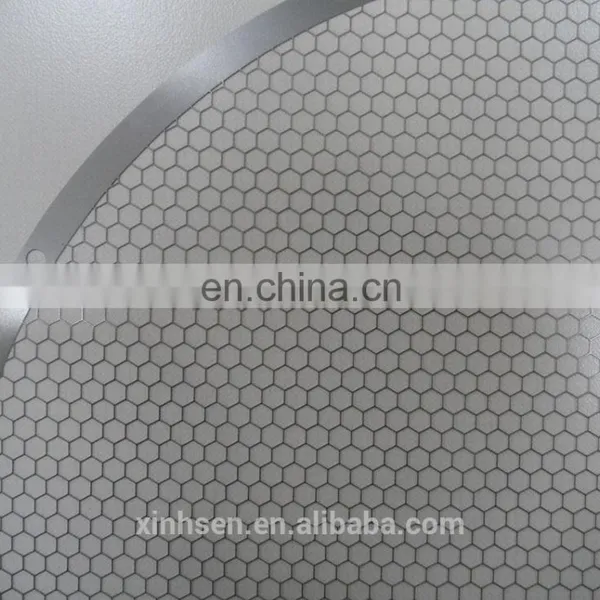

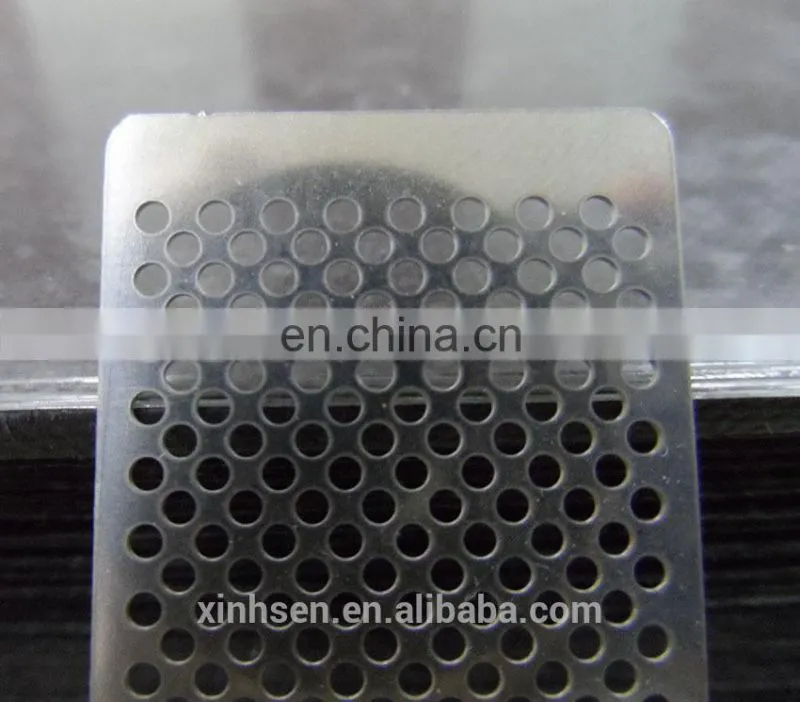

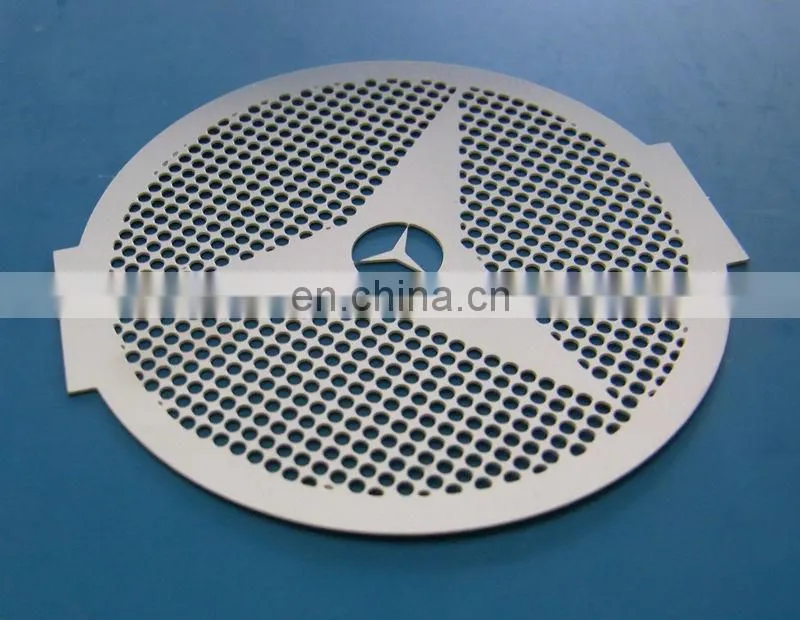

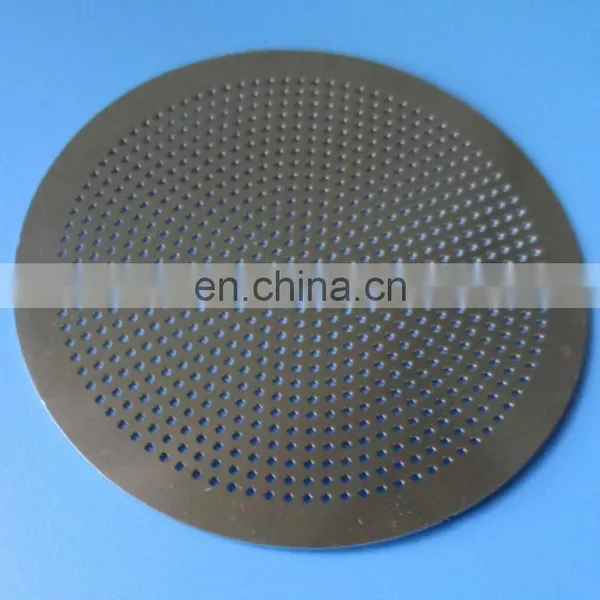

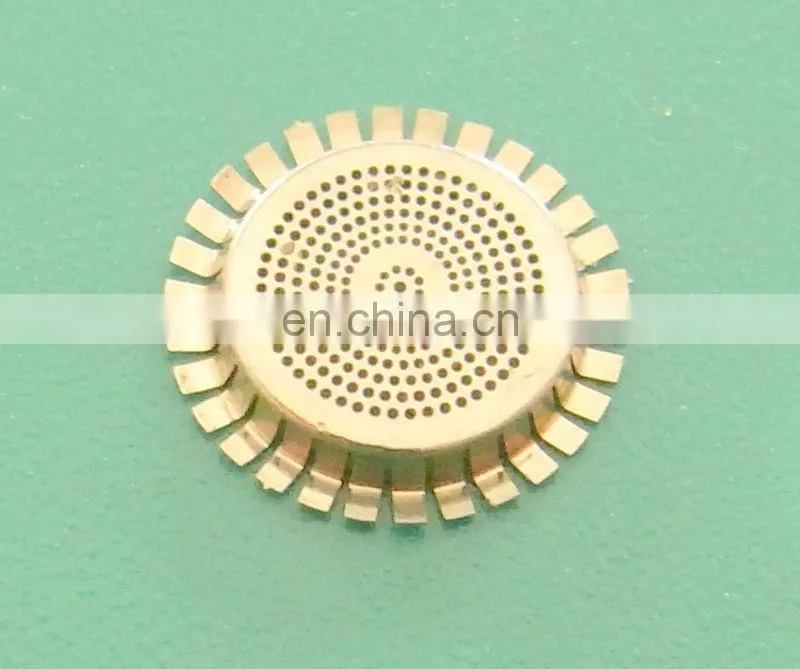

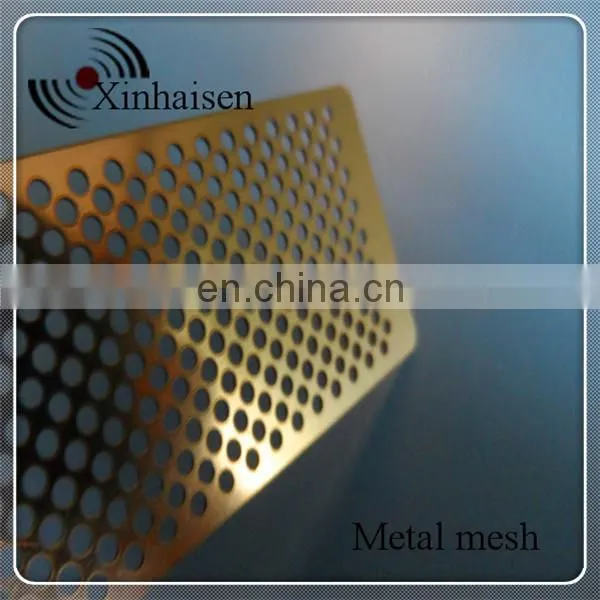

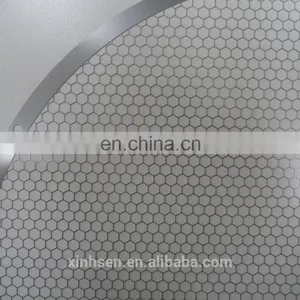

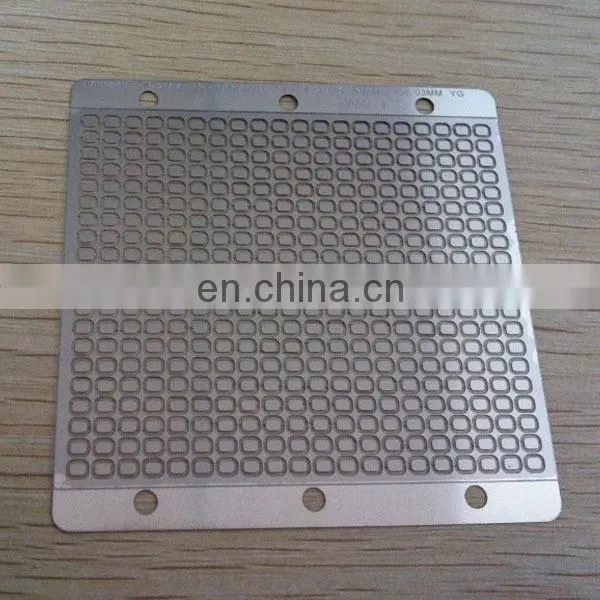

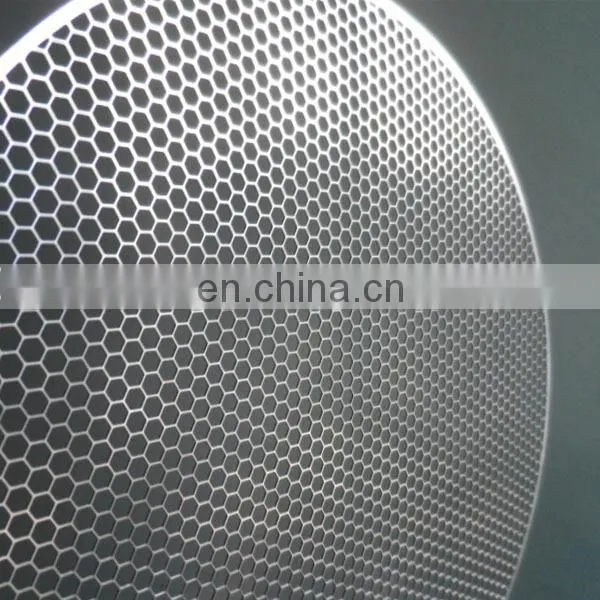

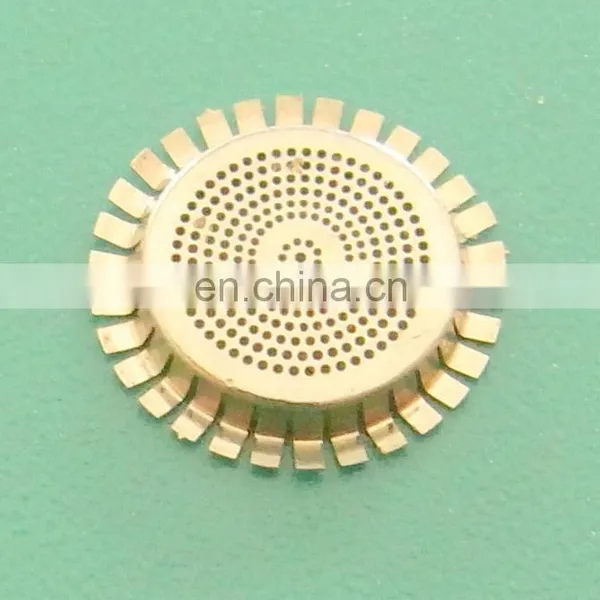

Filter mesh Images:
Founded in 2012, Xinhaisen has been devoted to offer photo chemical etching solutions for precision metal components. We have served industry sectors including Automotive, Aerospace & Defence, Electronics, Medical, Precision Engineering and Decorative Etchings with super fine, stress and burr-free products.
We have exported our products to many countries,please click here to view our transaction history:
Click here →Xinhsen Transaction History
1, Precision Meshes & Filters: Seives&Screen, Coffee Filter, Tea filter, Fire Alarm Filter Mesh, Speaker Mesh Grille
2, Metal Shims & Gaskets
3, Optical Encoder Disks & Strips
4, EMI/RFI Shielding
5, Leadframes
6, Flat Springs
7, Lampshade Frame & Decorations
8, High-end Automotive Interiors
9, Printing Stencils & Foils
10, Drum clean blades
Why Partner with Xinhaisen:
1, ISO9001 and ISO14001 qualified
2, Dust-free workshop and 3000 m2 factory
3, Six production line, 2 Horizontal etching machines and 4 Vertical etching machines
4, Advanced inspection machines: Auto 2D measuring instrument, Electron microscope, and Electronic Magnifier
5, Professional QC team to guarantee a well quality control
6, Experienced employees
7, Professional developing team with 10 engineers

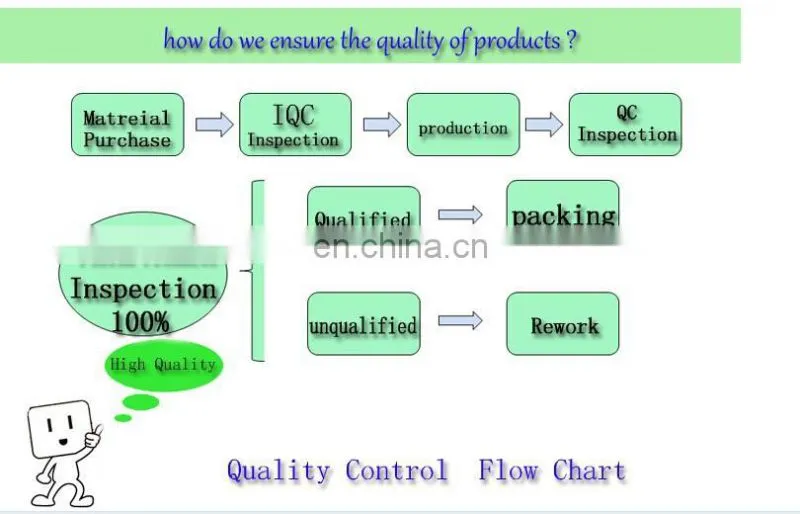

Quality Control:
Xinhaisen is working to be the best photo etching supplier, we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction. Welcome to visit our factory or send an inquiry.
Please feel free to contact me for more details, we will do our best to help.
