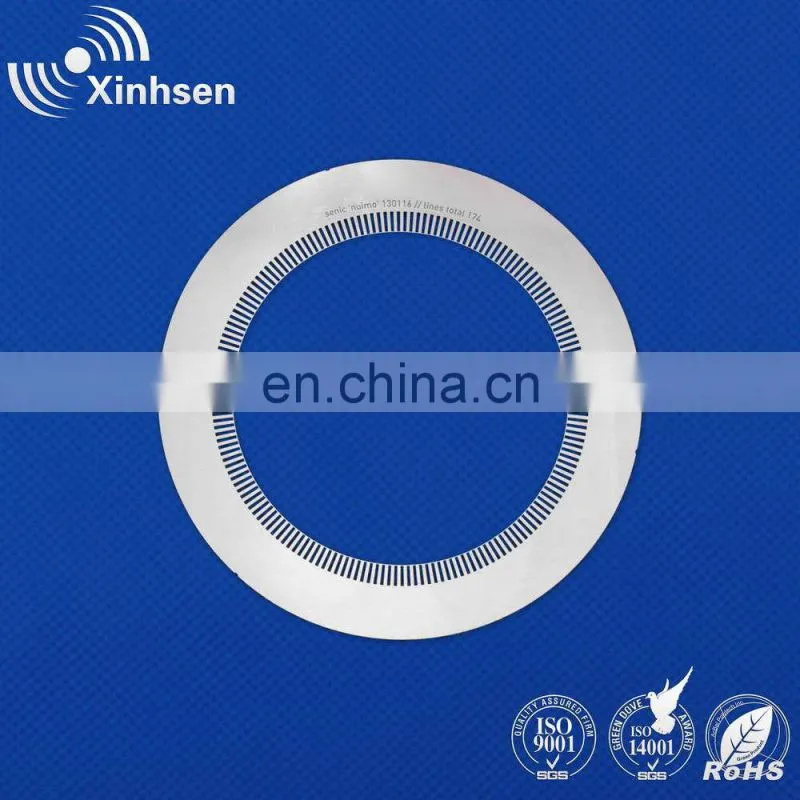

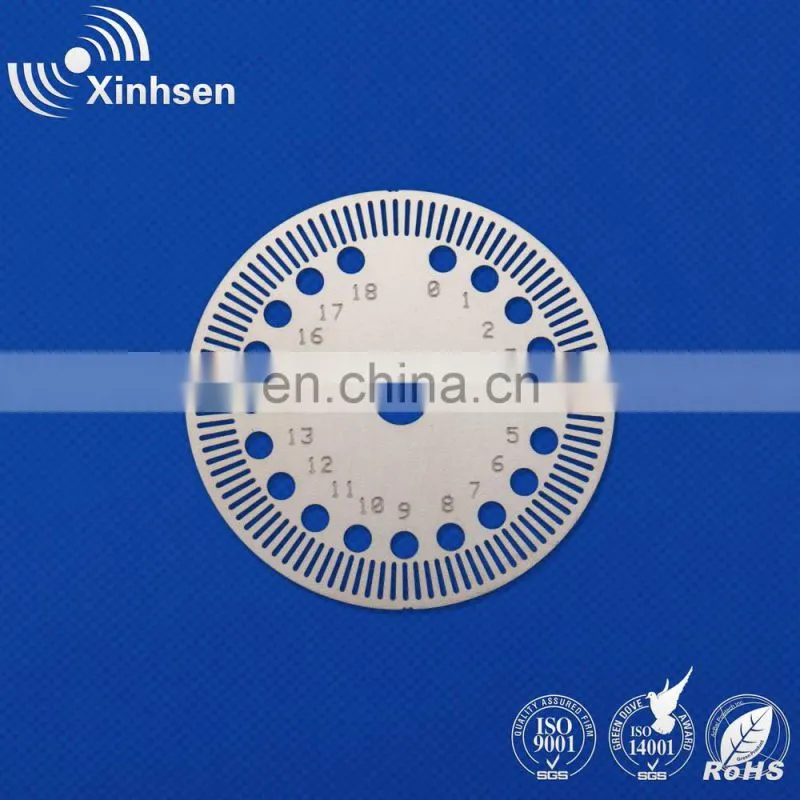

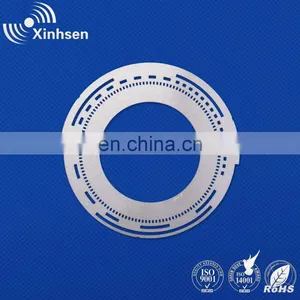

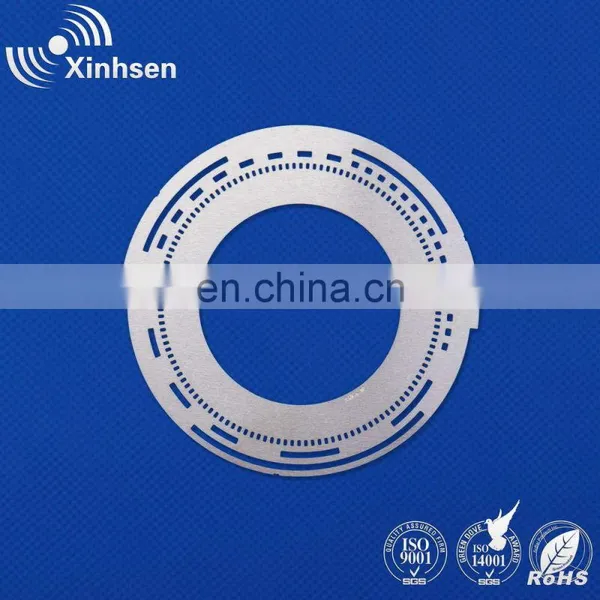

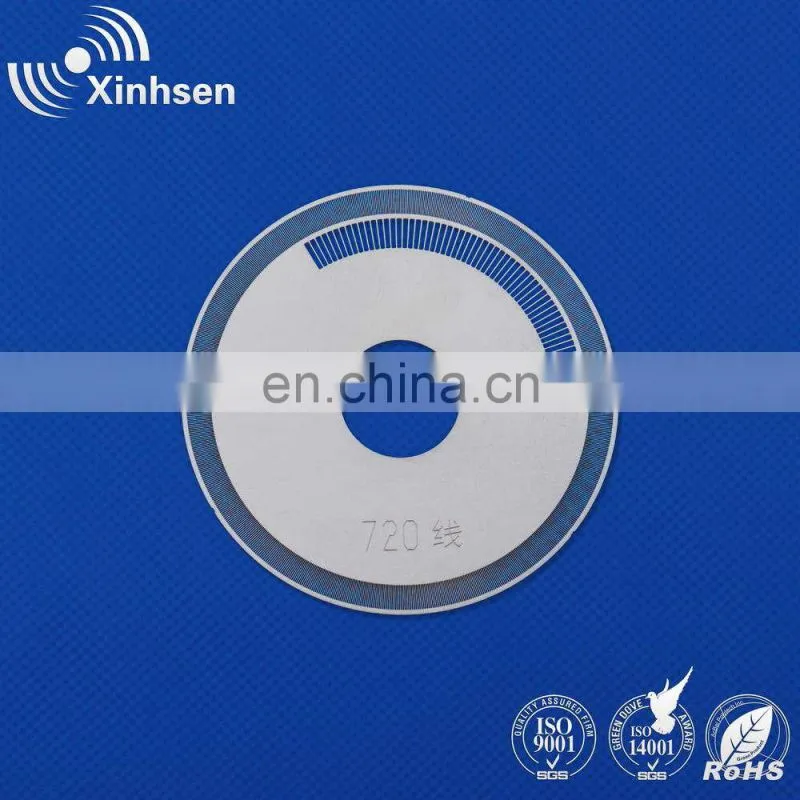

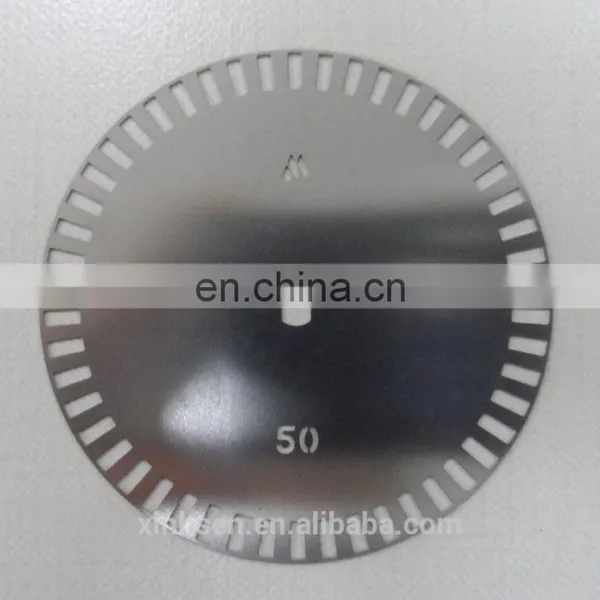

Encoder disks, etching coupling plate ,Acid etching metal for encoder wheel
Application & Features
Encoder disks and linear code strips are essential components in many motion control and positioning applications. Xinhaisen photo etching manufactures high slot count and great precision encoder pulse plate with stress and burr free.
With advanced photo etching technique, we can make sure:
♦Flexible opening area
♦Various material options
♦Accurate aperture shapes / sizes
♦Consistent cross-sectional thickness
♦Special features and differing aperture shapes
♦No burr and stress free and no sharp edge meshes
1.SUS304 planarity sheet for photo etching is used.
2.Minimum bar code width is around 0.1mm(t=0.05 mm)
3.Bar pitch tolerance within ±0.02 mm, max and min difference of bar code tolerance in the same lot within 0.02.
4.Center run-out within 0.01, circularity within 0.01 is possible.
5.Internal dia. accuracy range is within 0.03 (0.01 is possible when finished with a reamer.)
6.Technology highlights: Standard processing
7.SUS304 planarity sheet for photo etching is used.
8.Minimum bar code width is around 0.08(t=0.05)
9.Bar pitch tolerance within ±0.003, max and min difference of bar code tolerance in the same lot within 0.04.
10.Center run-out within 0.015, circularity within 0.015 is possible.
11.Internal dia. accuracy range is within 0.04 (0.01 is possible when finished with a reamer.)
12.Note:Prices based on your drawings qty etc...
| Send the CAD drawings,start from a sample |
| Xinhsen's Story |
Founded in 2006, Xinhaisen has been devoted to offer photo chemical etching solutions for precision metal components. We have served industry sectors including Automotive, Aerospace & Defence, Electronics, Medical, Precision Engineering and Decorative Etchings with super fine, stress and burr-free products.
