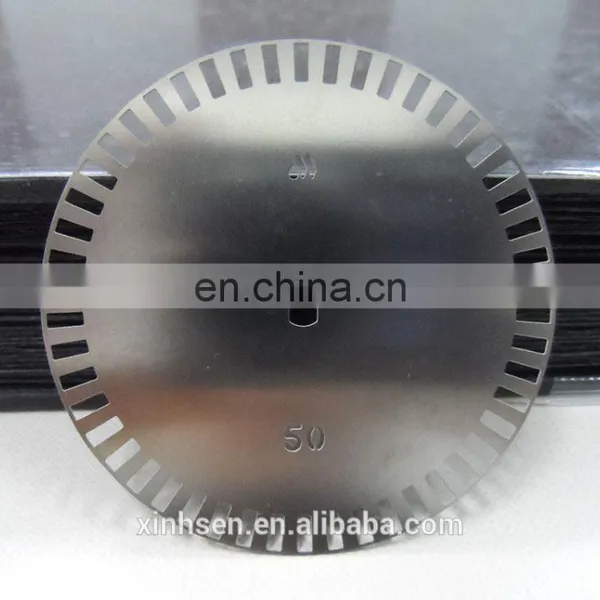

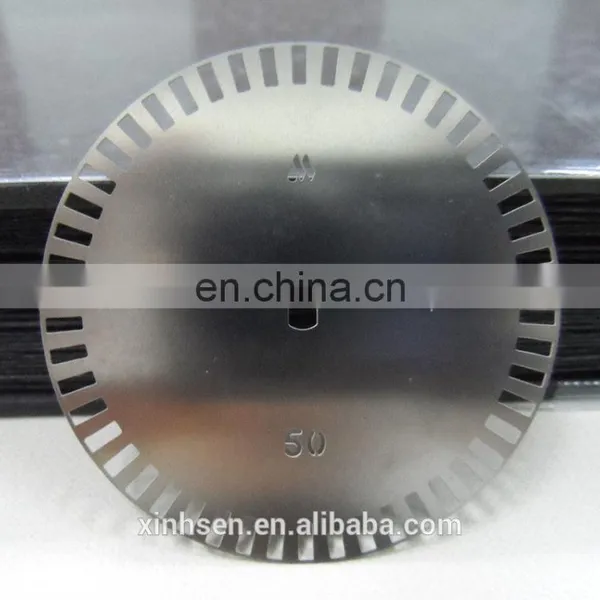

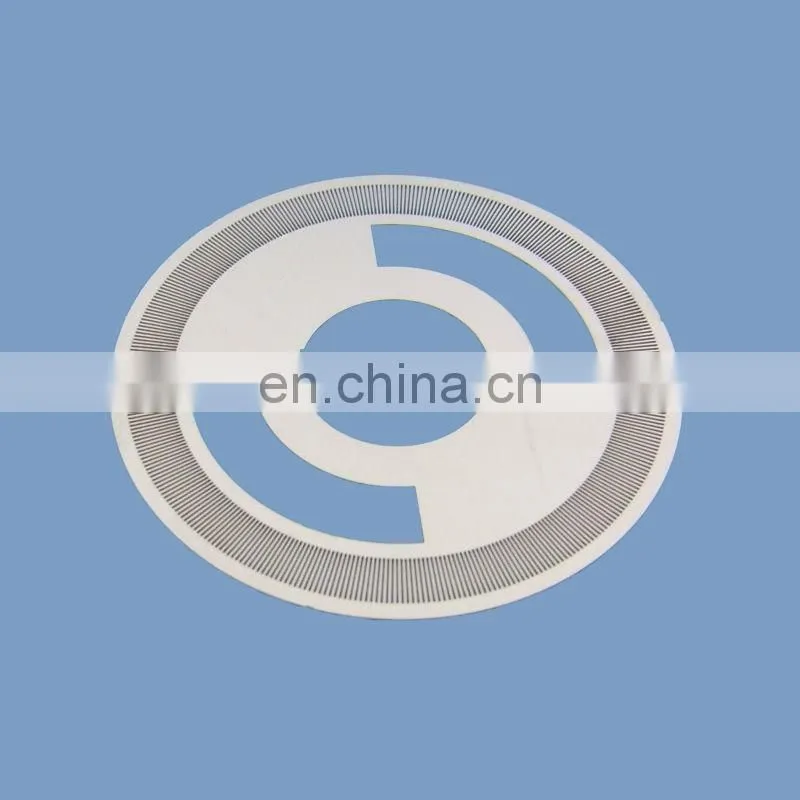

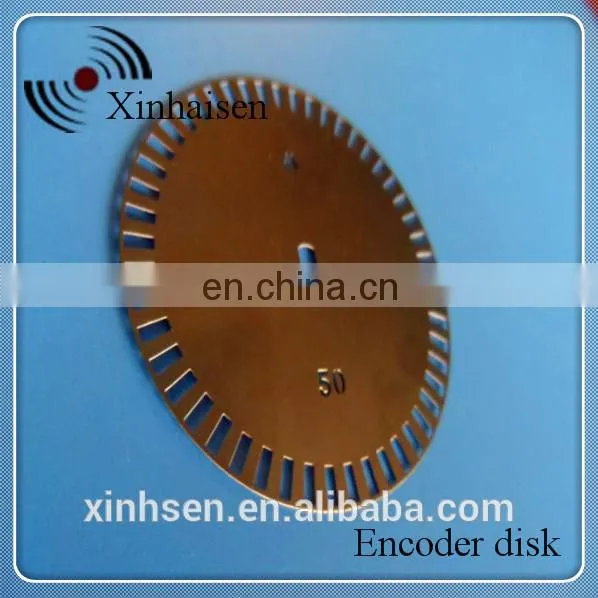

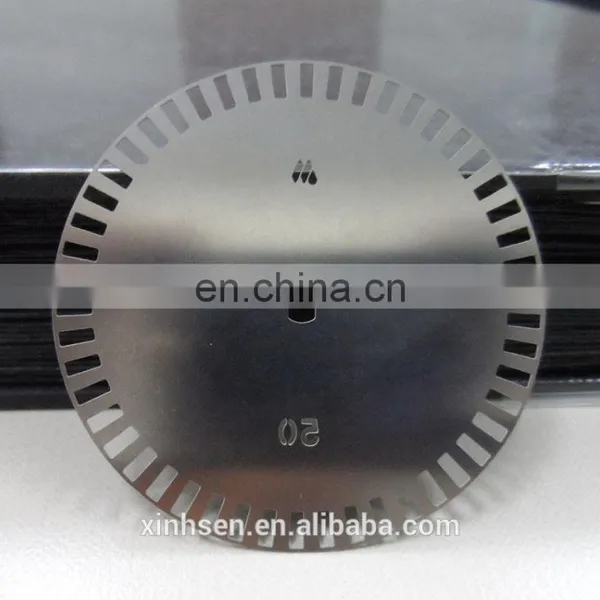

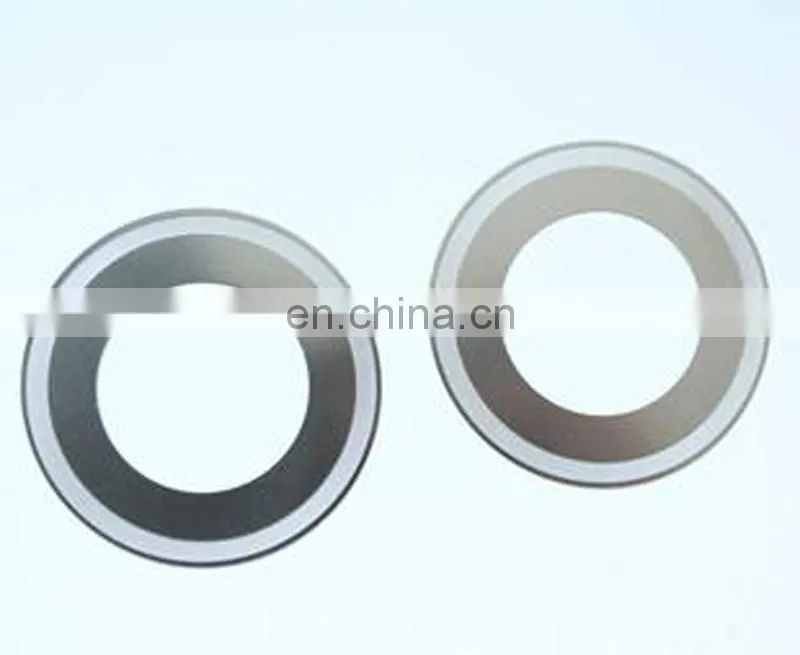

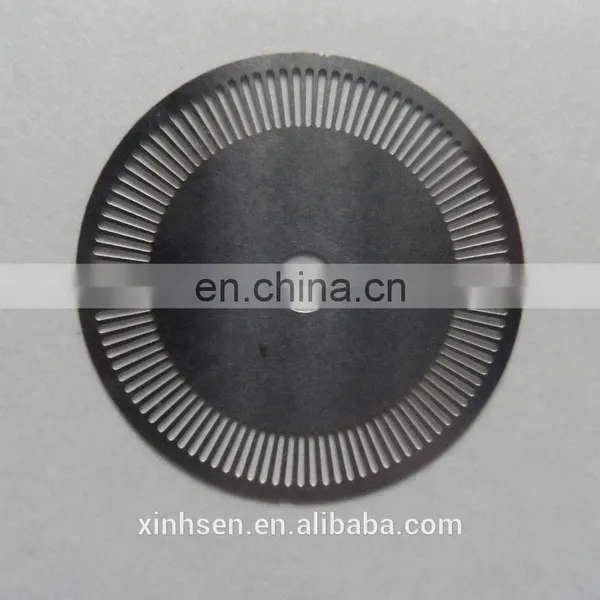

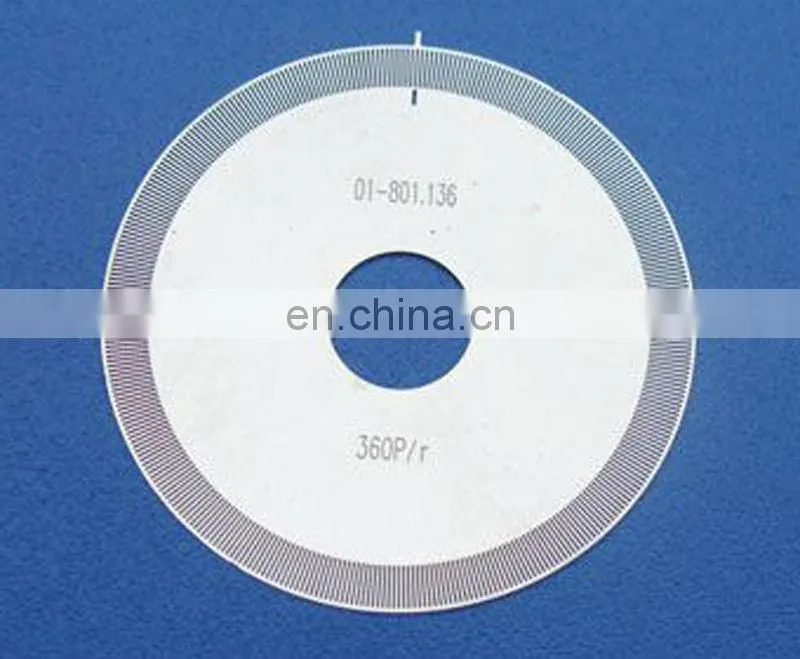

chemical etching stainless steel 304 encoder disk made in China
1.Technology:etching
2.Material :sus 304/316
3.Certificate:ISO9001
4.Thickness:0.08-1.0mm
Product Name |
optical rotary encoder disks |
Material |
Stainless steel, copper, silicon steel plate,or customize |
Thickness |
0.03mm-1.5mm |
Tolerance |
+/-0.01mm |
size |
1*1mm2 - 300*500mm2 |
Smallest Open Hole |
0.1mm |
Smallest Line Width |
+/-0.025mm |
Price |
According to specific products,FOB shenzhen |
Package Options |
1.Left in sheet2.Detached3.Bulk packed4.Box in foam layer5.PE, Boxes6,Customized |
Delivery |
DHL,EMS,Fedex,By Sea or by Air |
MOQ |
500PCS |
Payment |
T/T,L/C,Moneygram,Paypal,West Union |
Supply Ability |
1000pcs/day |
Lead Time |
Within 3-6 days |
Machine Type |
Chemical etching / photo etching, Laser cutting, stamping |
Notes: | |
1,We will do our best to meet your special requirements | |
2,No need open tooling or moulding can change the dots as requirements in any condition with low cost | |
3,Half etching can be achieved and Company Logo can be added | |
4,High tolerance standard with tolerance +/-0.01mm | |
5,Complex out shape can be etched without extra cost | |
6,No burrs,No dents,No deformed,No broken point | |
7,Material can be customized | |
8,Nearly all kind of metal can be etched and no limited to the drawing | |
9,Etching can be achieved on parts of the product you made | |
We etch too many kinds of high precision metal parts,there are some datas you can refer to :
We welcome the customer who need optical encoder disk ,optical encoder disk customized) and we will provide the best price,and believe our technology will take you the core competiton.
Technical Data:
Machining Type |
Chemical etching / photo etching, Laser cutting, stamping |
Material Capabilities |
Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Aluminum, Alloy (Thickness from 0.03 mm up to 1 mm) |
Product Dimension |
220*280 mm |
Smallest open hole |
D= 0.1mm when Thickness range from 0.03mm to 0.05mm 1.5*Thickness |
Centre to Centre for holes |
1.5*Thickness |
Smallest line width |
0.05mm. |
Product precision |
± 0.01mm (common difference). It’s generally 20% of material thickness. |
Surface treatment for choice |
Planting / Painting, electro-polishing |
paching &shipping
Packaging term :
Package available :Plastic tray ,tape reel ,PE bag ,EVA ,bubble bag ,pazza inner carton ,etc....
If you have designated packing please advise , We will do it as your require .
Shipping term :
Generally delivery by express for small package like Fedex ,UPS ,DHL ,TNT ...
For the high weight goods will delivery by sea
Our Advantages
1. Low cost for molding or tooling
2. Advanced & Standardization workshops and facilitates.
3. High-tech and high precision manufacturing equipment.
4. Strict ISO14001:2004 , ISO9001:2008 standards.
5. ROHS compliant & enviroment friendly products.
6. Professional technical specialists and management personel
7. 100% in house inspection before delivery
8. All OEM/EDM is welcom
Company Name |
Shenzhen Xinhaisen Technology Ltd. |
Business Type |
Manufacturer,Trading |
Business Scope |
Chemical etching,stamping, High precision metal mesh,Encoder disc, VCM,EMI/TF shield,Filter mesh,Coffee Filter mesh,Metal Cards,Metal Crafts,Metal bookmark,logo,label,sign,tags,Etc. |
Location |
Guangdong, Shenzhen, China |
Year Established |
2012 |
Year Export |
2006 |
Employees |
100-200 |
|
Engineers |
10 |
Total Revenue |
US$2.5 Million-US$5 Million |
Main Market |
China mainland,America,Eastern Europe,Eastern Asia,Etc. |
Factory Area |
3000 m2 |
Certificate |
ROHS, ISO9001:2008, ISO14001:2004 |
2.Tolerance we can achieve
thickness below 0.2 mm, tolerance can be controled in +/-0.015mm
thickness below 0.5 mm, toleracne canbecontroled in+/-0.05 mm
FAQ:
1. What kind of material can be used to make the encoder disk?
A: Generally, the encoder disk can be made of stainless steel, nickel or glass
2. Can you Make the glass encoder disk?
A: our company is specializing in the metal etching area only, So most encoder disks are made of
Stainless steel 304, full hard
3. What's the thickness of the encoder disk?
A: Generally, thickness can be 0.05 mm, 0.1 mm, 0.15 mm and 0.3 mm.
This depand on the slots width of your encoder disk, The smaller of the slots,
the thinner of the material thickness we suggest.
4. If we want to custom the encoder disk , What should we do?
A: Firstly, please send us the CAD drawing in DXF or DWG format.
We need to know all the details of the disk, especially the accurancy, slots tolerance.
5. What's the MOQ of the encoder disk?
A: No MOQ here, but if the quantity is too small, we charge them as tooling cost.
QC system
We have a serious and professional QC team to guarantee the quality of the goods.The QC team is composed of skilled engineers and technicians,including 6 to 10 highly skilled staff as technical Support. We strictly implyment quality control process according to ISO9001 standards, including raw materials and finally finished products inspection. With the advanced detecting instrument, we
ensure that the products quality rate is 100%
After Sales:
1).We are very glad that customer give us some suggestion for price and products.
).If any question,please let us know it in the first by E-mail or Telephone.We can deal with them for you in time.
