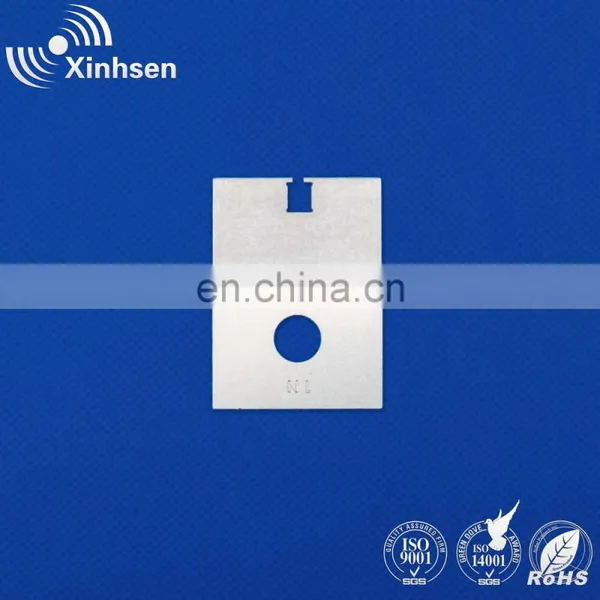

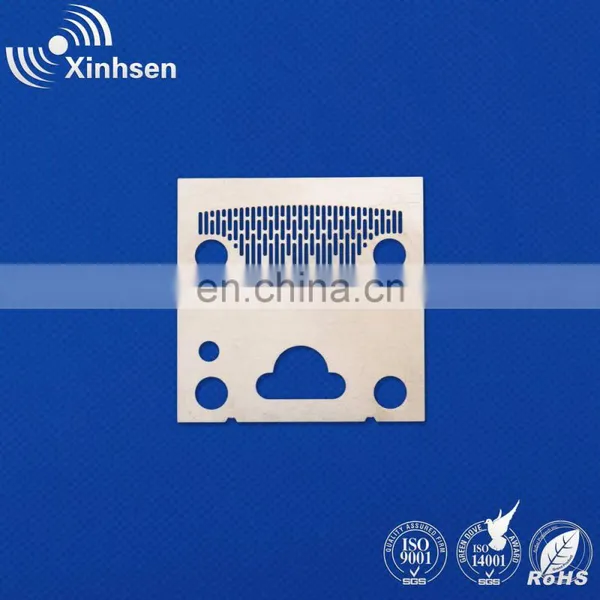

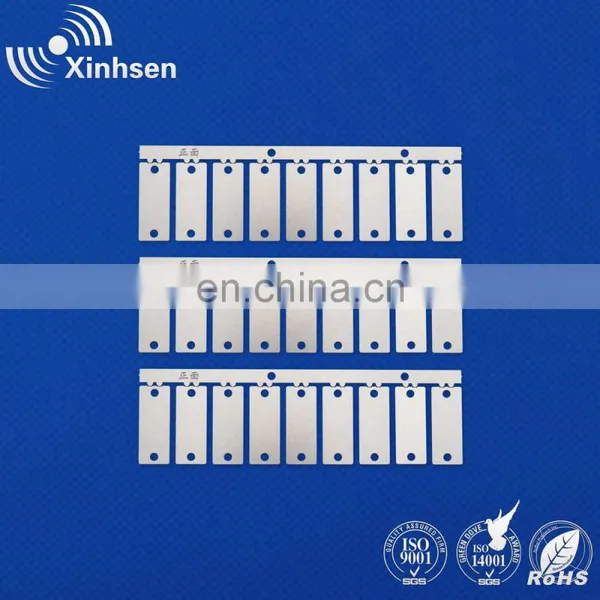

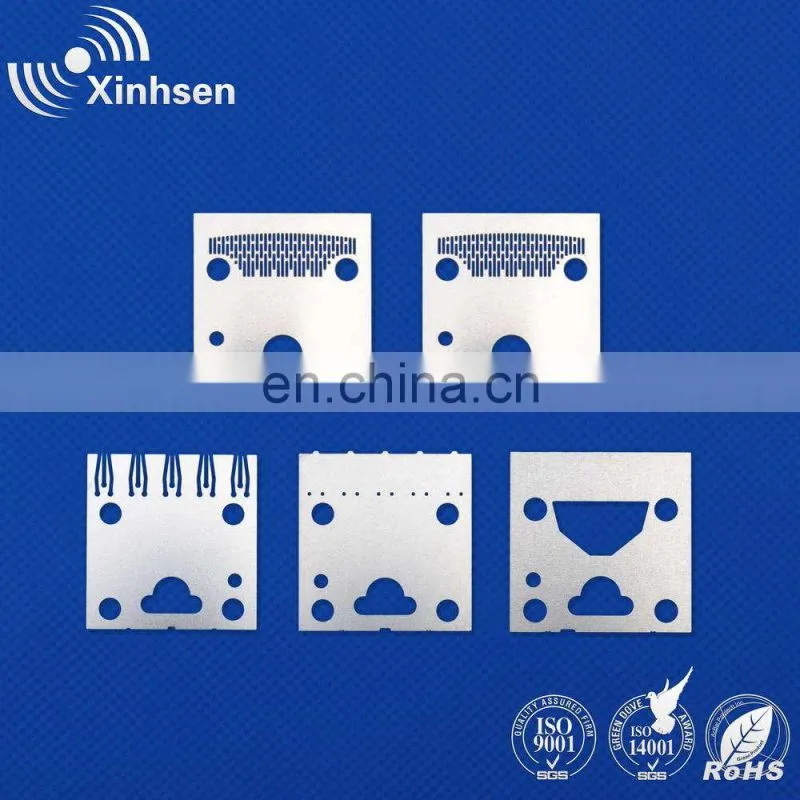

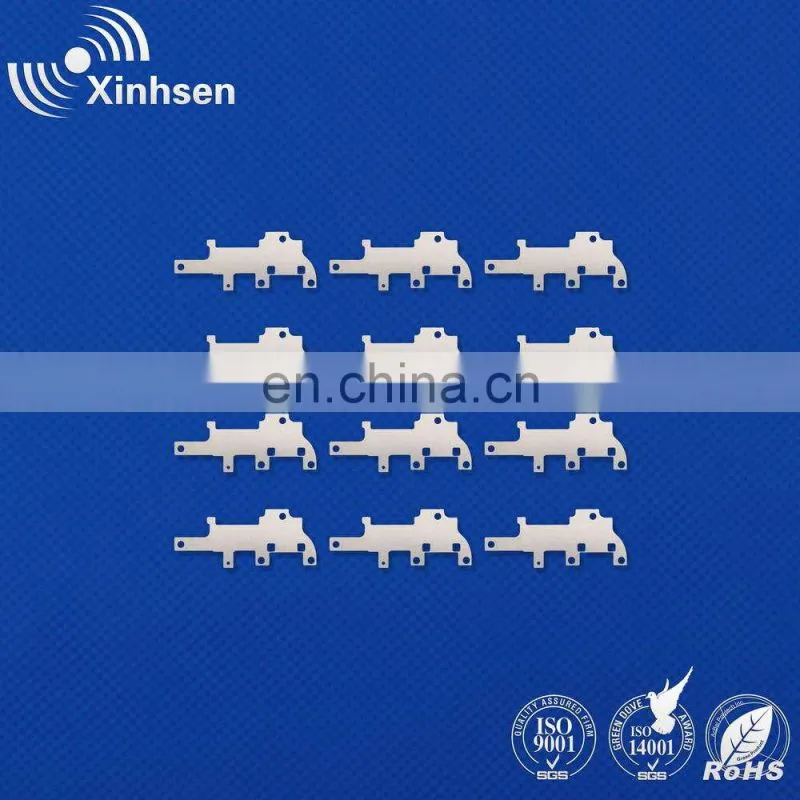

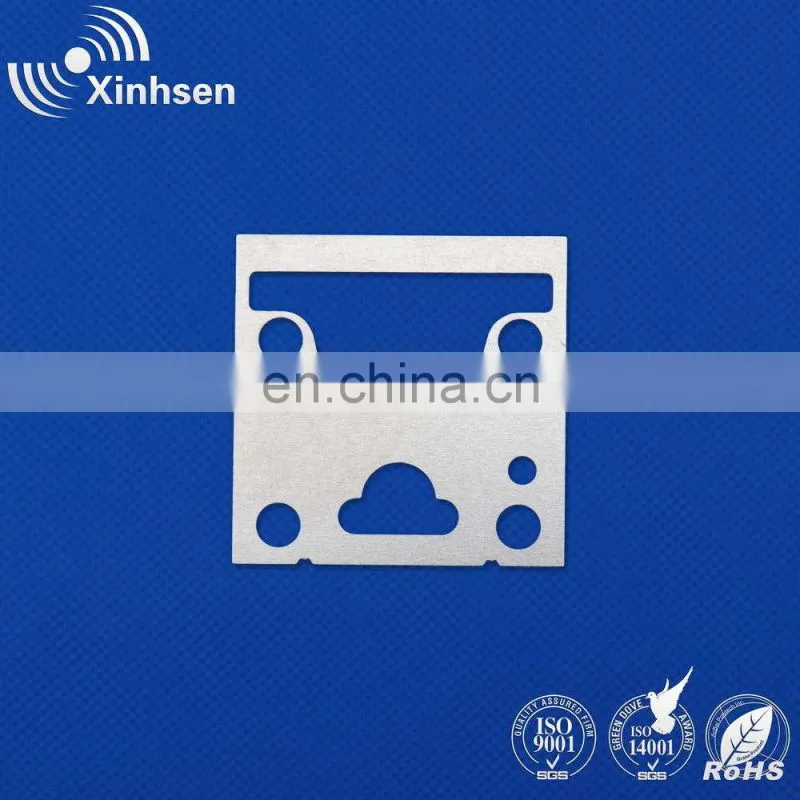

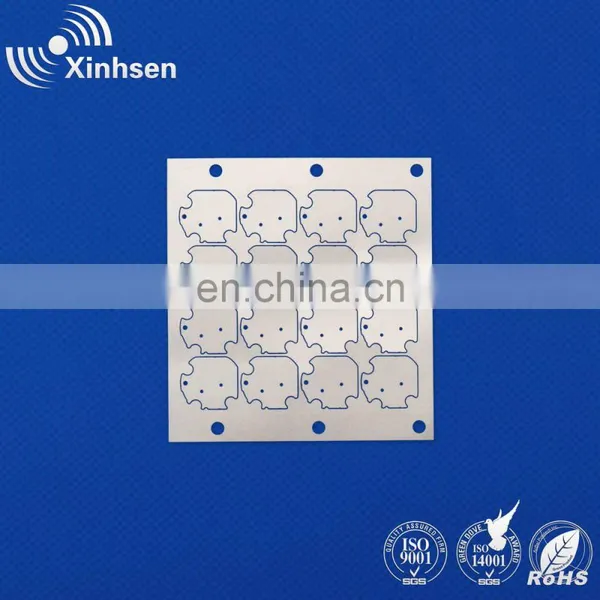

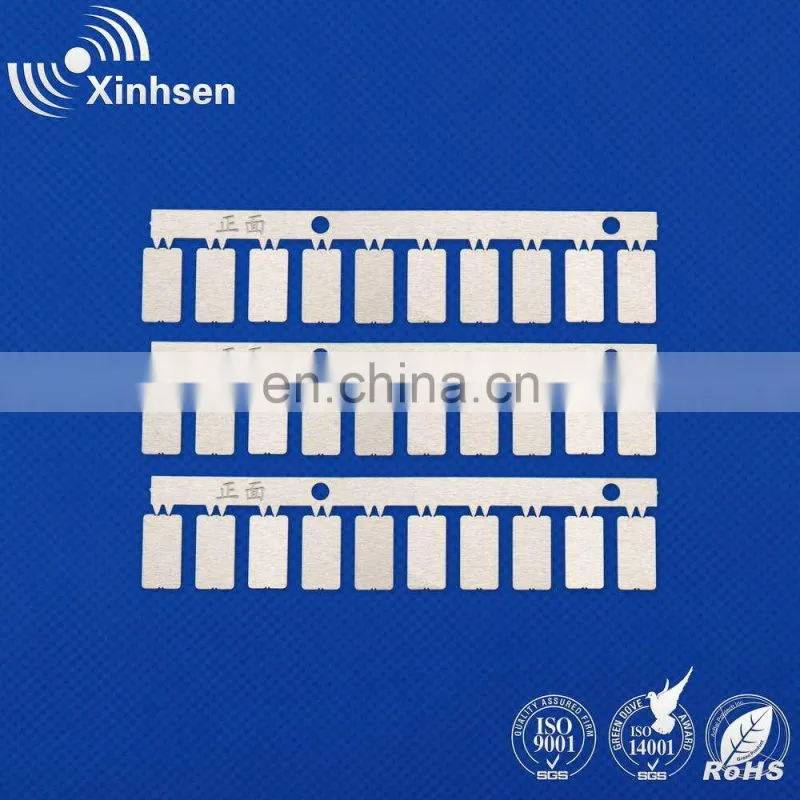

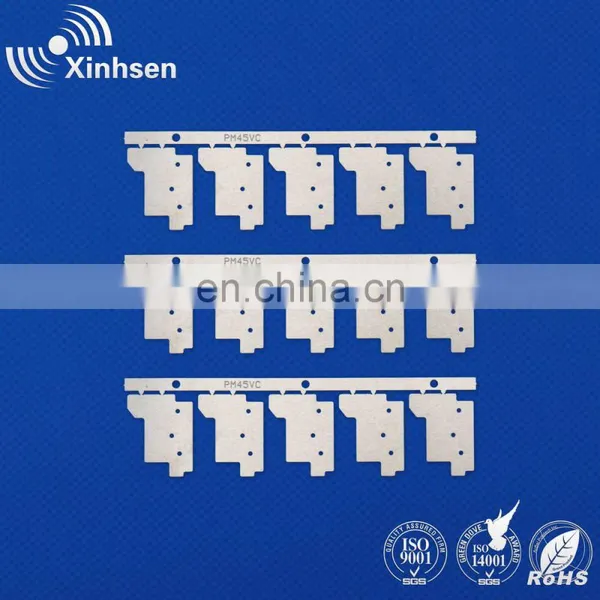

ROHS/ISO china supplier precision steel shim washer
Application & Features
Metal shims and gaskets are widely used in Electronic equipment,mold manufacturing, precision machines, Petrochemical industry, Chemitry industry, Power Industry and other industries.
With advanced photo etching technique, we can make sure:
♦Flexible opening area
♦Various material options
♦Accurate aperture shapes / sizes
♦Consistent cross-sectional thickness
♦Special features and differing aperture shapes
♦No burr and stress free and no sharp edge meshes

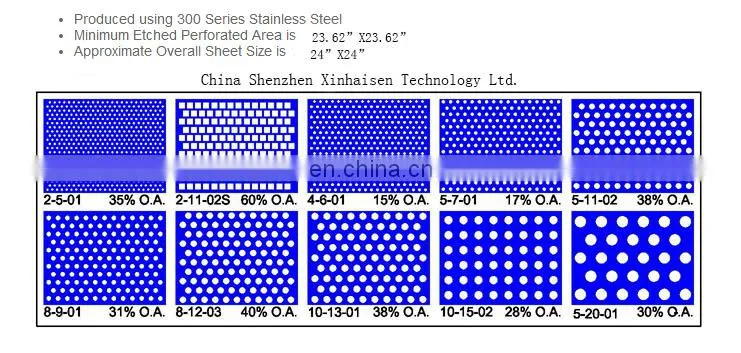

Hole Type Show
Thickness (mm) |
Smallest hole Diameter |
Tolerance |
0.025--- 0.08 |
0.1 mm |
+/-0.015 mm |
0.1 --- 0.2 |
1.5 * thickness |
+/-0.015 mm |
0.25 --- 0.3 |
1.5 * thickness |
+/-0.03 mm |
0.35---- 0.4 |
1.5 * thickness |
+/-0.05 mm |
0.5--- 0.6 |
1.5 * thickness |
+/-0.05mm |
0.7 --- 0.8 |
1.5 * thickness |
+/-0.1mm |
1.0 ---1.2 |
1.5 * thickness |
+/-0.1 mm |
| Product description | |
| Item | ROHS / ISO china supplier precision steel shim washer |
| Material | Stainless steel or customize |
| Size | 1mm*1mm-700mm*600mm |
| Hole | ≥0.03 mm |
| Flatness | ±0.03 mm |
| Thickness | 0.02mm-1mm |
| Line width | ≥0.015 mm |
| Tolerance | +/-0.01 or according to customer |
| Shape | custom design available or we can help design |
| Sample | Available within 6-15 days |
| Payment | T/T,negotiable |
| delivery | DHL,Fedex,TNT,EMS or according to custom |
| Packing | Paper,plastic bag,paper case,wooden case or customize |
| Prices | Based on the drawings , qty etc... |
| Photo chemical etching is more suitable for coffee filter mesh.Try it!~ |

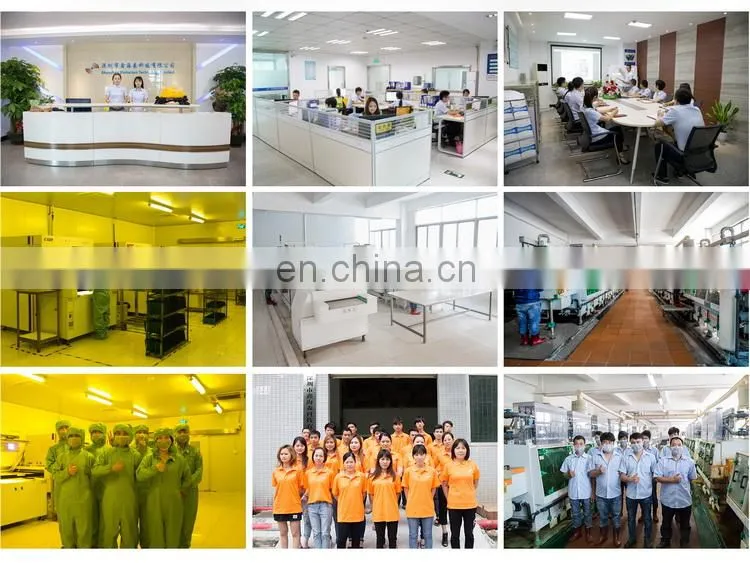

| Xinhsen's Story |
Founded in 2006, Xinhaisen has been devoted to offer photo chemical etching solutions for precision metal components. We have served industry sectors including Automotive, Aerospace & Defence, Electronics, Medical, Precision Engineering and Decorative Etchings with super fine, stress and burr-free products.
What we can do
Precision Meshes & Filters
Metal Shims & Gaskets
Optical Encoder Disks & Strips
EMI/RFI Shielding EMI / RFI

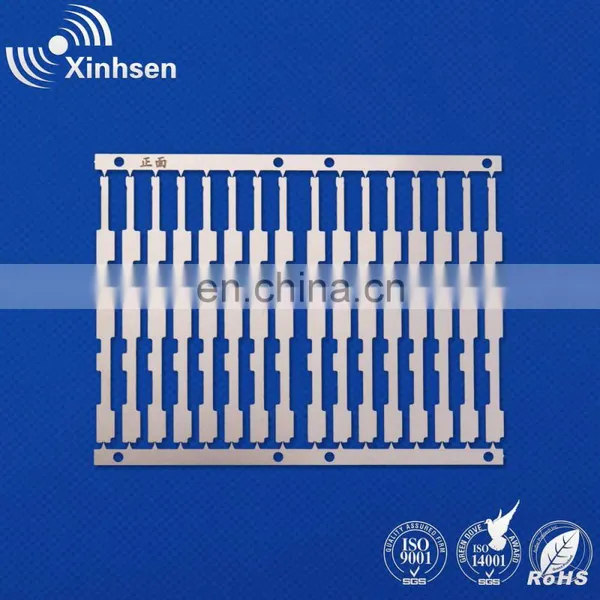

Leadframes
Flat Springs
Lampshade Frame & Decorations
High-end Automotive Interiors
Printing Stencils & Foils
Drum clean blades

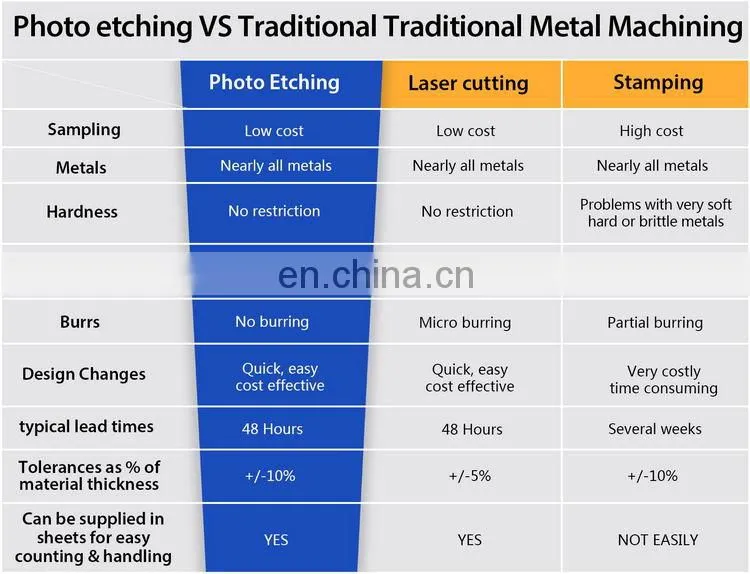

| The advantages of the etching process,You can try! |
We have exported our products to many countries
Please click here to view our transaction history
