chemical etching 0.2mm thickness filter mesh
1. Neat and precise, without bug.
2. Regulate and precise mesh
3. Reliable filtering precision
4. High compressive strength
5 stainless steel aeropress filters disk
6 Material:Stainless steel 304,316
7 Own factory
8 Good quality
Product Description | |
Product name: |
metal mesh filter |
Material: |
SS 300 series |
Size: |
according to customers |
Thickness: |
0.03-1.5mm is available |
Technique: |
High precision etching |
Hole: |
0.01mm(customize) |
Spacing |
0.018mm(customize) |
Hole shape: |
Round |
Surface finish: |
Polished |
Features: |
No burrs,No broken point,no plugging holes |
Application: |
Fiber filter,Textile machines or customize |
Certificate: |
RoHS,ISO |
Inspection: |
Two-dimension inspection machine,magnifier |
Other Related Items | |
Price: |
According to product specification |
Sample Offer: |
Within 3-6 days |
Payment: |
T/T,L/C,Paypal,Western Union |
Lead time for mass production: |
Within 6-10 days after payment |
Production ability: |
10000pcs/week |
Metal process methods available: |
Stamping,Chemical etching,Laser cutting |
Acceptable file format: |
DWG,DXF,IGES,PDF,JEPG |
standard met: |
Customer specification,2D CAD drawing |
We etch too many kinds of high precision metal parts,there are some datas you can refer to :
| Technical Data: |
| Machining Type Photo chemical etching, Laser cutting, stamping and E-forming |
| Material Capabilities Stainless Steel, Brass, Bronze, Copper, Hardened Metals, Precious Metals and Aluminum alloy. |
| Product thickness: 0.02 – 1.2 mm |
| Product Dimension: Min size: 0.25mm up to Max 600*600 mm |
| Smallest opening hole D= 0.1mm when thickness range from 0.03mm to 0.05mm |
| Centre to Centre for holes 1.5*Thickness |
| Product dimensional tolerance ± 0.01mm (depending on the thickness). It’s generally 20% of material thickness. |
| Surface treatment for choice Silver/Gold/Tin plated, Matt finish, paint, or other surfaces treatment can be discussed when needed. |

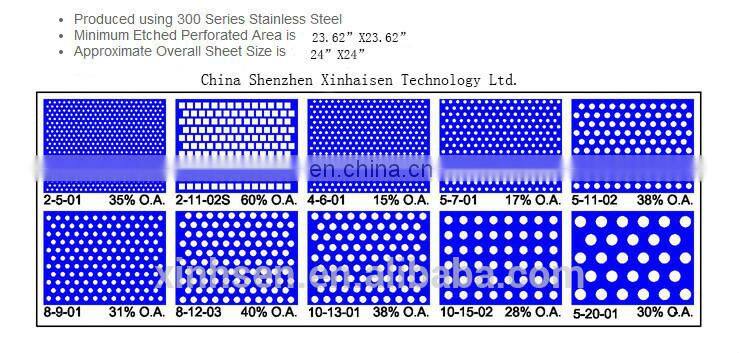

Below are the some standards on hole,but Custom design is welcome.
Packaging Detail: 1.Using paper bag in the fist layer 2.Then PE bag in the second layer 3.Foam in the packing box 4.wooden box outside
Delivery Detail: 5-7days
our service :
1.Special size can be made customized
2.Sample can be supplied.
3.We also have strictly quality control
4.Delivery time strictly according to the contract
2.Tolerance we can achieve
thickness below 0.2 mm, tolerance can be controled in +/-0.015mm
thickness below 0.5 mm, toleracne canbecontroled in+/-0.05 mm
Want to customized the mesh:
1. Please send us your drawing in .dxf or .dwg format, telling us the size of the mesh, hole diameter and hole open area.
2. We can also supply the Injection molding. Mould open time is about 15-25 working days.
3. Material of the coffee filter mesh can be stainless steel or Ti-Titanium, thickness is about 0.1, 0.12, 0.15, 0.2 mm. Smallest hole diameter 0.1 - 0.4 mm
Company Basic Information | |
Company Name |
Shenzhen Xinhaisen Technology Ltd. |
Business Type |
Manufacturer,Trading |
Business Scope |
Chemical etching,stamping, High precision metal mesh,Encoder disc, VCM,EMI/TF shield,Filter mesh,Coffee Filter mesh,Metal Cards,Metal Crafts,Metal bookmark,logo,label,sign,tags,Etc. |
Location |
Guangdong, Shenzhen, China |
Year Established |
2012 |
Year Export |
2006 |
Employees |
100-200 |
Engineers |
10 |
Total Revenue |
US$2.5 Million-US$5 Million |
Main Market |
China mainland,America,Eastern Europe,Eastern Asia,Etc. |
Factory Area |
3000 m2 |
Certificate |
ROHS, ISO9001:2008, ISO14001:2004 |
Process Capability | |
The Min. Size |
1mm*1mm |
The Max. Size |
700mm*600mm |
Thickness |
0.03mm-1.5mm |
Thickness Tolerance |
+/-0.005mm |
The Min. Opening precision |
Φ 0.02mm |
The smallest diameter |
0.01mm |
Dimension Tolerance |
+/-0.008mm |
Elastic line tolerances |
+/-0.005mm |
The shallowest depth |
0.01mm |
Depth accuracy tolerance |
+/-0.005mm |
Special Technique |
Second on the bit,No connection point,etching and stamping |
product show
about us
1.Your inquiry related to our products or prices will be replied in 24 hours.
2.Well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM&ODM,any your customized lighting we can help you to design and put into product.
4.Distributorship are offered for your unique design and some our current models.
5.Protection of your sales area,ideas of design and all your private information.
2.Tolerance we can achieve
thickness below 0.2 mm, tolerance can be controled in +/-0.015mm
thickness below 0.5 mm, toleracne canbecontroled in+/-0.05 mm
