•Major Features
ØZero power to maintain still image
ØFlexible area background color design(customer design)
ØHigh contrast
ØHigh reflectance
ØWide viewing angle
ØPure reflective mode without backlight or polarizer
ØFlexible Dot Matrix display to show complex information and barcode
Øpaper like reading performance
ØMulti- languages enabled
ØError rate: less than 1/10,000,000
Please contact to +86 0512 69561805
or Email to sales@halation.com for specific prices
The HLCM panel is a dot-matrix passive-driven LCD using flat glass substrate. It contains Halation’s proprietary bistable liquid crystals and its driver is COG (chip on glass) based.
MSLC display module is using the similar structure of dot matrix STN LCD and its process, but has advantages in many different application fields
Flexibility for Customer Size
Halation provide standard sizes from 2inch to 4inch, but customer sizes could also be provided by low cost tooling within short period and limited volume.
High Yield Existing Supply Chain
Halation is using existing STN production line for MSLC display volume production with high yield rate. The volume can easily ramp up.
|
Contrast Ratio (Konica Minolta CM-2300d) |
5.5 : 1 |
|
Max. Reflection (Konica Minolta CM-2300d) |
35% |
Viewing Angle |
175° |
Supply logic voltage |
3.0V |
Name |

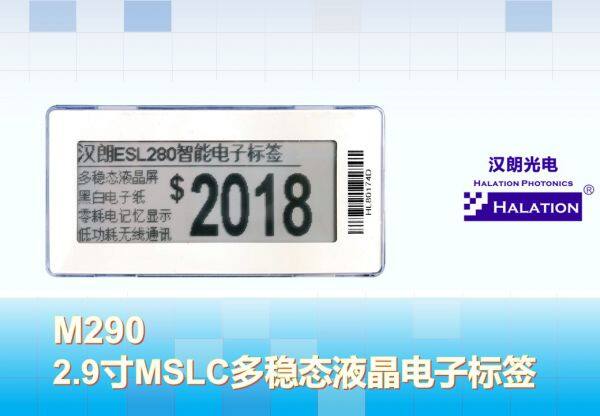

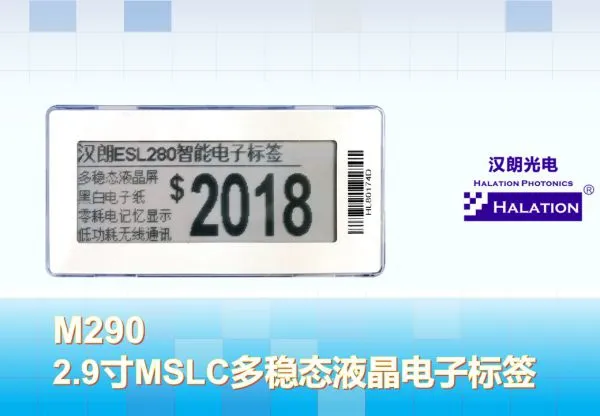

ESL-Epaper Display Label 2.9inch (MSLC) dot matrix lcd module |
Model Number |
M290 |
Size |
2.9" inch |
Product Size (mm) |
88x43.1x13.1 |
Display Area (mm) |
66.81(H) × 25.33(V) |
Display Color |
Black/White |
Display Resolution |
232(H) × 88(V) pixels |
PPI |
89 |
Pixel Pitch (mm) |
0.284×0.293 |
Display Type |
MSLC |
Working Temperature |
0℃~40℃ |
RF |
433M |
Transfer |
Text/Graphic |
Working Life |
5years (one refresh/day) Room Temerature |
Used |
For ESL and other E-paper display Devices |
Warranty |
12 Months |
Lead time |
1 day |
Inspection |
100% One by One, Visual inpection + Function inpsection |
