Home > Manufacturing & Processing Machinery > Rubber Machinery > Rubber Raw Material Machinery > 0.5 Liters Precision PLC Control Banbury Kneader

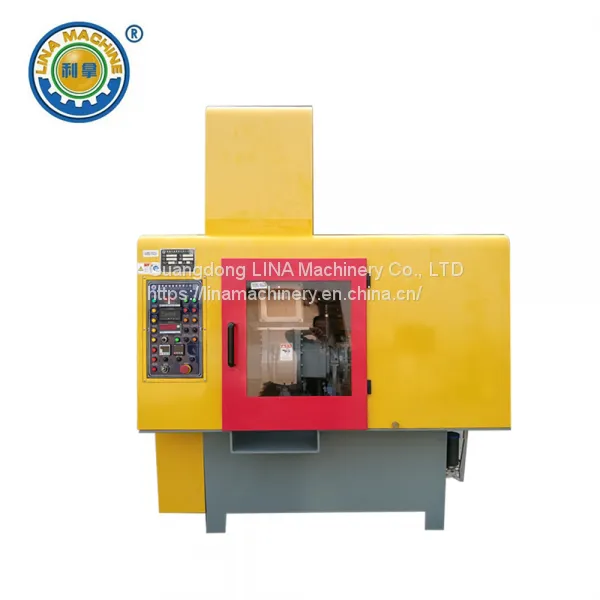

0.5 Liters Precision PLC Control Banbury Kneader

Name: 0.5 Liters Precision PLC Control Banbury Kneader
Brand: LINA
SKU: 158496702
Availability: InStock

0.5 Liters Precision PLC Control Banbury Kneader thumbnail-1

0.5 Liters Precision PLC Control Banbury Kneader photo-1

US$ 41000 - 55000 MOQ: 1 Unit

Key Specifications

Get Latest Price

Brand Name:

LINA

Place of Origin:

China

Model Number:

LN-75

Contact Supplier Request Quote Chat Now

Guangdong LINA Machinery Co., LTD

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

75 days

Product Details
Company Profile
Contact Us

Brand Name LINA

Place of Origin China

Model Number LN-75

Type Rubber Kneader

Certification CE SGS-9001

After-sales Service Provided Engineers available to service machinery overseas

Warranty 1 year

Weight 10800kg

Dimension(L*W*H) 3800*2300*3200mm

Condition New

Voltage 380

Power(W) 37000

LINA Data Exporting System Rubber Banbury Kneader can monitor the machine’s working process precisely such as temperature control, mixing time control, pressure control and data import and export to offer your details. Besides, touch screen is installed to manage the system and shows graphic data, ethernet communication interface and 20% of the control points are reserved. An ethernet communication interface and 20% of the control points are reserved to ensure best dispersion effect. LINA Laboratory Used Higher Precision Intelligent Control Rubber Kneader is suitable for a wide range material including high filling rubber, plastic, elastomers, ceramics and mental, and other solids, semi-solid and powder materials. In order to ensure the maximum dispersion effect, the specification of rotor, top and down ram is optimized, about 47% domestic science and research institution and universities are using LINA Rubber Kneader with Simens PLC takes the lead in China’s rubber and plastic machinery industry. High precision and high safety are our main advantages.

Characteristics of LINA 0.5L PLC Control System

1. Higher cleanness: Clean up the material without dead corners; the mixing chamber and rotors can be separated completely; All surface that directly contact with the material is mirror polished, which ensure all the materials easy to clean without stickiness.

2. Wearable inner cavity: Imported special new alloy steel and Vacuum heat treatment are adopted. Strong wear resistance, resistance to horizontal erosion, corrosion resistance and high glossy finish effects are achieved.

3. Adjustable rotor speed ratio: The speed ratio of rotors is adjustable, which target at some special material function requirements and achieve best dispersion effect and efficiency.

4. Temperature control system: A lot of trials report that stage temperature control has the essential effect of ceramics’ color difference.

5. PLC intelligent control system: 1. Real-time data record and export of kneading time, temperature (mixing chamber and front/rear rotors), ram pressure, current, torque and recipe code. 2. The control system can be set up to 20 mixing steps, save 20 recipe spaces. 3. The control system is capable of remote importing of the process recipe and data monitoring, and communicating with MES via Ethernet communication interface. 4. An Ethernet communication interface and 20% of the control points are reserved. Touch screen is provided.

1. Comprehensive safety devices like ergonomics security devices, reverse braking devices, infrared sensor and 360 degrees emergency stop button etc.

2. LINA high quality carbon steel roller, which is treated by nitriding and the surface is plated hard chromium. And the medium hole of the roller ensures the cooling efficiency.

3. PLC intelligent soft control system is not only easily import or export but also accurately in control and measurement of mixing temperature and ratio.

4. Multifunctional options ensure easier operation and lower maintenance rate is designed for mass production to plasticizing, mixing and performing, Heating system, cooling system or double functions system are available to meet the mixing requirements of a variety of materials and improve flow production efficiency.

LINA After-Sales Services

1. On-site installation assistance is available. (There are no charges on installation and trial running, but VISA fees, accommodation fees and transportation fees etc. of the supplier’s side are charged by the buyer.)

2. Training of customer's operators and maintenance personnel and long-term technical consultation is provided.

3. One year's non-charge warranty period is provided for units in normal operation and long-term spare parts/components are available. During the warranty period, the supplier, within three hours since receipt of purchaser's notice of any equipment fault, shall provide express solution, and, if necessary, assign service engineer(s) to site across China within 72 hours or site in Pearl River Delta within 5 hours (excluding travel time). Response time for customers overseas shall be agreed upon otherwise based on application for visa and accessibility to the customer's location.
