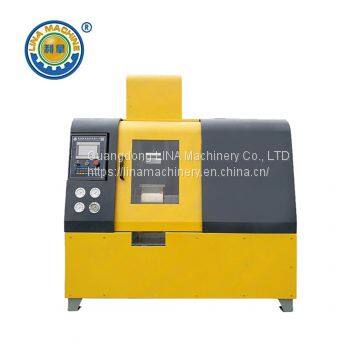

Lab Test Intermeshing Type Dispersion Kneader

Lab Test Intermeshing Type Dispersion Kneader

LINA 1 liter Lab Test Precision Intermeshing Type Rubber Kneader Machine’s main parts are imported from Germany, Japan and Taiwan and the new design of LINA has been taken the lead in China’s rubber and plastic machinery industry. LINA Intermeshing type Dispersion Kneader is one of kneader mixer’s rotor types and it is different with tangential rotors or any other traditional rotors. With LINA’s new design, the rotor is driven by a constant speed connecting gear, the large diameter of one rotor interacts with the small diameter of the opposite. Besides, the ridges are helically shaped along the rotor to allow the mixing material to move axially within the mixing chamber. Dispersion mixing is mainly carried out in a small gap between two sizes of rotors. However, Rubber Intermeshing Type Kneader is not only suitable for a wide range material including high filling rubber, plastic, elastomers, ceramics and mental but also other solids, semi-solid and powder materials. In order to ensure the maximum dispersion effect, the specification of rotor, top and down ram is optimized, ans this type of Rubber Dispersion Mixing Machine is designed on the base of Pressurized Dispersion Mixer, the flipping type is hydraulic or electric, and the double dust proof device is developed.

Characteristics of LINA Intermeshing Type Dispersion Mixer

1. Higher cleanness: Clean up the material without dead corners; the mixing chamber and rotors can be separated completely; All surface that directly contact with the material is mirror polished, which ensure all the materials easy to clean without stickiness.

2. Wearable inner cavity: Imported special new alloy steel and Vacuum heat treatment are adopted. Strong wear resistance, resistance to horizontal erosion, corrosion resistance and high glossy finish effects are achieved.

3. Adjustable rotor speed ratio: The speed ratio of rotors is adjustable, which target at some special material function requirements and achieve best dispersion effect and efficiency.

4. Temperature control system: A lot of trials report that stage temperature control has the essential effect of ceramics’ color difference.

5. PLC intelligent control system: 1. Real-time data record and export of kneading time, temperature (mixing chamber and front/rear rotors), ram pressure, current, torque and recipe code. 2. The control system can be set up to 20 mixing steps, save 20 recipe spaces. 3. The control system is capable of remote importing of the process recipe and data monitoring, and communicating with MES via Ethernet communication interface. 4. An Ethernet communication interface and 20% of the control points are reserved. Touch screen is provided.

1. Comprehensive safety devices like ergonomics security devices, reverse braking devices, infrared sensor and 360 degrees emergency stop button etc.

2. LINA high quality carbon steel roller, which is treated by nitriding and the surface is plated hard chromium. And the medium hole of the roller ensures the cooling efficiency.

3. PLC intelligent soft control system is not only easily import or export but also accurately in control and measurement of mixing temperature and ratio.

4. Multifunctional options ensure easier operation and lower maintenance rate is designed for mass production to plasticizing, mixing and performing, Heating system, cooling system or double functions system are available to meet the mixing requirements of a variety of materials and improve flow production efficiency.

LINA After-Sales Services

1. On-site installation assistance is available. (There are no charges on installation and trial running, but VISA fees, accommodation fees and transportation fees etc. of the supplier’s side are charged by the buyer.)

2. Training of customer's operators and maintenance personnel and long-term technical consultation is provided.

3. One year's non-charge warranty period is provided for units in normal operation and long-term spare parts/components are available. During the warranty period, the supplier, within three hours since receipt of purchaser's notice of any equipment fault, shall provide express solution, and, if necessary, assign service engineer(s) to site across China within 72 hours or site in Pearl River Delta within 5 hours (excluding travel time). Response time for customers overseas shall be agreed upon otherwise based on application for visa and accessibility to the customer's location.
