LTE 4G Router Introduction

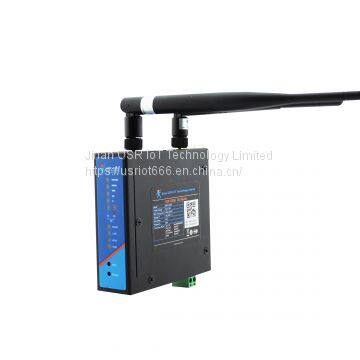

USR-G806 is a Wireless 4G LTE Router which adopts industrial high-performance and embedded structure, and it is widely used in industrial control, smart electricity, personal health care, smart home to transmit data.
Wireless | WIFI / 3G/4G |
Power Supply | DC 5-36V |
Frequency band | GSM/GPRS/EDGE, WCDMA, TD-LTE, FDD-LTE, TD-SCDMA |
Configuration | Web page |
Function | Watchdog, QOS management, DDNS, port-forwarding |
Network | VPN(PPTP/L2TP), PPPOE, DHCP, Static IP |
Certification | CE/RoHs |
1.1*LAN,1*WAN (WAN can switch to LAN), Auto MDI/MDIX/ WIFI 802.11b/g/n
2.Restore factory setting
1.Static Router configuration and firewall
2.Traffic service can limit the speed depends on interface
SIM Card | Standard 6 Pin SIM card, 3V/1.8V card |
Work Temp | -20~70C |
Working Current | Average: 120mA, Max 246mA |
| Operation Band | ||||||
| Network Type | G806 (Asia ) | G806-E (Europe ) | G806-AU ( Australia ) | G806-A ( USA ) | ||
| 4G | FDD-LTE | 1/3 | 1/3/5/7/8/20 | 1/2/3/4/5/6/7/8/28 | 2/4/12 | |
| TDD-LTE | 38/39/40/41 | 38/39/40/41 | 40 | |||
| 3G | WCDMA/HSPA/UMTS | 1/8 | 1/8 | 1/2/5/8 | 2/4/5 | |
| 2G | GPRS/GSM/EDGE | 3/8 | 3/8 | 2/3/5/8 | ||
4G card slot: self-locking type card slot; usim card, APN card and IOT card are available, support APN private network setting, can set priority network, when there are both wired network and 4G
RS232: four transmission protocols of TCP Server, TCP Client, UDP Server and UDP Client; realize transparent data transmission, AT command control
LED light: All eight LED lights indicate the running state of LAN port, WAN port, 4G network and wifi network.
