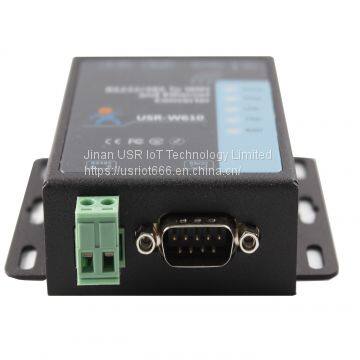

Serial To WiFi and Ethernet Converter USR-W610, which can realize bidirectional transparent transmission between RS232/RS485 and Ethernet/WiFi.
Features
1.Supports Modbus RTU to TCP, Modbus Polling
2. Hardware watchdog, 24 hours works stable
3.Support DC adapter and terminal power supply 5-36V
4. Serial to WIFI or WIFi to Ethernet
WIFI 2.4GHz 802.11b/g/n wireless standards.
Work Mode: TCP Server/TCP Client/UDP Server/UDP Client/HTTP Client mode.
AP, STA, AP+STA.
Modbus gateway: Modbus RTU to Modbus TCP, Modbus Polling
Electrostatic protection
WatchDog, 24 hours stable operation.
Function of identity packet function, heartbeat packet function,Websocket function
Supports timeout reset function, timing reset function
Configuration by Web Server, setup software, serial/network AT command
Supports hardware reload.
Passed EFT test, when there is instantaneous high current in the circuit (such as lightning, power switch, etc.), it can ensure that the device hardware is not damaged.
Power: 2KV, Ethernet interface 232 485: 2KV
1.Modbus Polling Mode
In this mode, it supports Modbus TCP and Modbus RTU mutual conversion.
2. Heartbeat Packet Function
USR-W610 supports network heartbeat packet and serial heartbeat packet. The network heartbeat packet notifies the server that it is in an active state, and it maintains the normal connection with the server by continuously sending the heartbeat packet.Serial port heartbeat packet notifies the serial device that USR-W610 is in an active state, and takes the initiative to grab the sensor data can not be initiative to push.
3. Socket Distribution Protocol
USR-W610 suppports SDP, you can add certain header in serial data. It will send the data to differetnt socket by different header. The data received from different
socket will be added different header before they are sent to serial.
4. Regular Restart Function
USR-W610 supports timing and timeout restart function, which makes the system run more stable.
Industrial Detection
1. According to the site environment to choose WiFi or wired networking.
2. Real-time detection of air leakage products mixed in
bottle buckles.
3. High sensitivity transmission monitoring data, the accurate data can ensure that monitoring without omission.
