TPH0512S 2W DC/DC Converters 5Vin +/-12Vout DC/DC Converters Power Supply
US$ 0.3
≥60000000 Pieces
Key Specifications
Get Latest Price
Brand Name:
Top Power
Place of Origin:
China
Model Number:
TPH Series
Payment & Shipping
Payment Methods:
Port of Shipment:
GZ
Delivery Detail:
7 days
Related Products
-
TPK0305SA 2W DC/DC Converters DC/DC Converters Power SupplyUS$ 0.55MOQ: 599999000 Pieces -
TPE1212D is 1W DC/DC Converters DIP 12Vin12Vout Power SupplyUS$ 0.55MOQ: 599999000 Pieces
-
TPG2415S 2W DC/DC Converters Power Supply ModuleUS$ 0.3MOQ: 60000000 Pieces
-
TPK1224SAP F1224S-2WR2 2W DC/DC Converters Power SupplyUS$ 0.78MOQ: 2147483647 Pieces
-
TPB1205S-W75 IB1205LS-W75 0.75W DCDC Isolation Power SupplyUS$ 0.3MOQ: 60000000 Pieces
Brand Name
Top Power
Place of Origin
China
Model Number
TPH Series
Weight
2.8G
Application
ALL
Frequency
HZ
Rated Voltage
VDC
Rated Torque
N
Rated Input Power
N
No-Load Speed
N
Max. Drilling Diameter
N
Drill Type
Other, N
TPH0512S 2W DC/DC converters 5Vin +/-12Vout power supply
replcaement for
Murata NMH0512SC
RECOM RD-0512D
TRACO TMH 0512D
konwertery dc / dc преобразователи постоянного / постоянного тока
The TPH series are miniature, isolated 2W DC/DC converters in a SIP and DIP package. They offer the ideal solution in many space critical applications for board level power distribution. The internal SMD construction makes it possible to offer a product with high performance at low cost. The series offers smaller size, improved efficiency, lower output ripple noise and 3KVDC isolation.
Part Number Nominal Input Voltage Output Voltage
V V
TPH0505D 5 ±5
TPH0509D 5 ±9
TPH0512D 5 ±12
TPH0515D 5 ±15
TPH0505S 5 ±5
TPH0509S 5 ±9
TPH0512S 5 ±12
TPH0515S 5 ±15
TPH1205D 12 ±5
TPH1209D 12 ±9
TPH1212D 12 ±12
TPH1215D 12 ±15
TPH1205S 12 ±5
TPH1209S 12 ±9
TPH1212S 12 ±12
TPH1215S 12 ±15
TPH2405D 24 ±5
TPH2409D 24 ±9
TPH2412D 24 ±12
TPH2415D 24 ±15
TPH2424D 24 ±24
TPH2405S 24 ±5
TPH2409S 24 ±9
TPH2412S 24 ±12
TPH2415S 24 ±15
TPH2424S 24 ±24
TPH4805D 48 ±5
TPH4809D 48 ±9
TPH4812D 48 ±12
TPH4815D 48 ±15
| Summary Description: | |||||||||||||
| 2W Isolated Dual Output DC/DC Converters The TPH series of industrial temperature range DC/DC converters are the standard buliding blocks for on-board point-of-use power systems. They are ideally suited for providing dual rail supplies on single rail boards | |||||||||||||
| Basic Terms: | |||||||||||||
| 1 | Type | TPH Series | |||||||||||
| 2 | Efficiency | up to 86% | |||||||||||
| 3 | Power density | up to 1.44W/cm3 | |||||||||||
| 4 | Wide temperature performance | at full 2 Watt load, –40°C to 85°C | |||||||||||
| 5 | Related certificate | RoHS compliant | |||||||||||
| 6 | Isolation voltage | 1kVDC | |||||||||||
| 7 | Iutput voltage | 5V, 12V, 24V & 48V input | |||||||||||
| 8 | Output voltage | 5V,9V.12V and 15V Output | |||||||||||

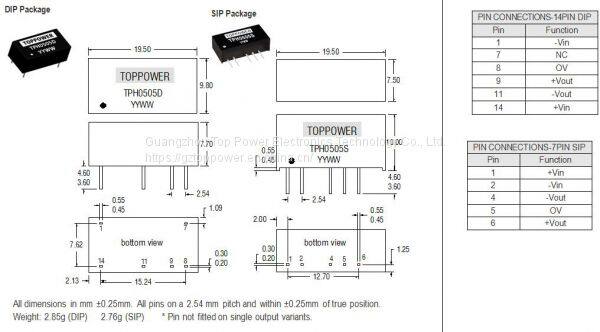

| 9 | Pin connection/14 PIN DIP | 1(-Vin),7(NC),8(OV),9(+VOUT),11(-Vout),14(+Vin) | |||||||||||
| Pin connection/7 PIN SIIP | 1(+Vin),2(-VIN),4(-VOUT),5(OV),6(+Vout) | ||||||||||||
| 10 | MOQ | 1 pc (no ltimited for considered the long coorperation relations) | |||||||||||
| 11 | Terms of payment | Western Union,T/T | |||||||||||
| 12 | Terms of delivery | DHL / UPS / EMS / TNT | |||||||||||
| 13 | Delivery time | 7-12 working days | |||||||||||
