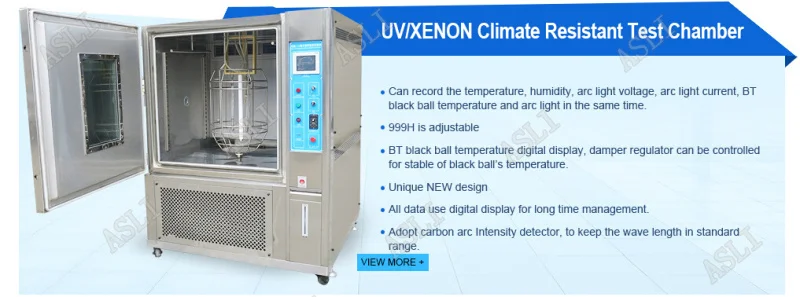

XL - 1000 Standard Xenon Arc Test Chambers Manufacturer
XL - 1000 Standard Xenon Arc Test Chambers Manufacturer Application:
Xenon Test Chamber is a comprehensive climate testing machine, it can do climatic aging test , and also can do fading acceleration test under color effect or color changed. The test range including: dying and finishing, printing, leather, plastic, plyglass, painting, textile, printing ink, rubber and also the industry relative color. Light fastness and fade grade can be known in short time. Those materials exposed at simulated sunlight to evaluated the material’s light fastness performance. To simulate and strengthen the test according to light energy, temperature, rain fall or condensation, humidity, .etc these main climate factors. Adopt simulated sunlight spectrum’s Xenon arc light to create destructive waves under different environment. It can be used for choosing new materials, improving existing materials, or assessment of durability change after material composed.
XL - 1000 Standard Xenon Arc Test Chambers Manufacturer Features:
1. Advanced design technology and concept.
2. EXcellent technology of producing and outstanding system of quality management.
3. Xenon lamp tester can be the most realistic simulated solar spectrum, including ultraviolet,visible and infrared.
4. Be tested in the range of the full spectrum, necessary for most textile sun and color fastness test.
5. To determine the color fastness and aging to sunlight, weather resistance, etc.
XL - 1000 Standard Xenon Arc Test Chambers Manufacturer Technical Parameters:
| Model | XL - 1000 | |
|
Internal Dimension WxHxD (mm) |
900x900x900 | |
|
External Dimension WxHxD (mm) |
1500x2000x1400 | |
| Tube Using Life (H) | 1500 | |
| Tube Power | 1KW/6KW | |
| Illumination intensity |
340nm 0.4~1.5w/m2 |
Full spectrum 1200±200w/m2 |
| Lighting Filter Type | Inner filter | Quartz |
| Outer filter | Quartz | |
| Simulated Test Status |
Test samples: Explore under outer space |
|
| Cooling System | Water cooling or wind cooling | |
|
Temperature Control Range of the Test Cabinet |
RT+15℃~80℃ | |
|
Humidity Control Range of the Test Cabinet |
30%~98% | |
|
Rotating Speed of the Samples Holder(RPM) |
1~5 adjustable | |
| Diameter of Sample Shelf(mm) | 500±50 | |
| Sunlight Exposure Cycle | 0.01~999 hours 59mins | |
| Raining Period/ Time | Raining Period:1~240mins,discontinuous-type, adjustable | |
|
Raining Time:1~9999mins, adjustable, water spray pressure 70~130Kpa | ||
| Spray Water Flow (L/min) | 1~2.4 | |
| Explore Area(cm2) | 7500 | |
| Power | AC 380V, 50/60HZ , 3 ph 5 Lines | |
