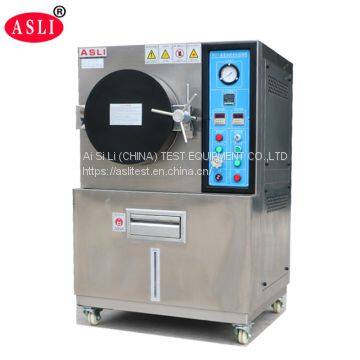

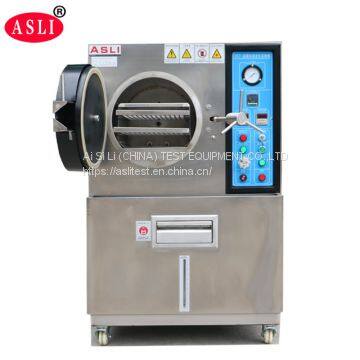

High Pressure Accelerated Aging Testing Machine for Testing LED Products

High Pressure Accelerated Aging Testing Machine for Testing LED Products Application:
ASLi Unsaturated Pressure Cooker Test (PCT chamber) is widely applied for the testing of sealing property for multi-layer circuit board, IC sealing package, LCD screen, LED, semi-conductor, magnetic materials, NdFeB, rare earths and magnet iron, in which the resistance to pressure and air tightness for above mentioned products can be tested out.

High Pressure Accelerated Aging Testing Machine for Testing LED Products Safety device:
1. Safety device for the pot: If the inner box is not closed , the machine can not start
2. Safety Valve: When the inner box's pressure higher than the machine's undertake value, it will self-relieve.
3. Double overheat protection device: When inner box's temperature is too high, it will alarm, and Automatic cut off the heating power.
4. Cover protection: The inner box's cover is made of aluminum alloy, can protect the worker from scald.

High Pressure Accelerated Aging Testing Machine for Testing LED Products:

1.Professional Manufacturer

2.Operation easy
3.Customized Size
4, Fast Delivery

High Pressure Accelerated Aging Testing Machine for Testing LED Products Specific Sheet:

Model	PCT - 25	PCT - 35	PCT - 45	PCT - 55	PCT - 65
Internal  Dimension Φ×D (mm)	300×250	350×450	450×550	550×650	650×750
External  Dimension Φ×D (mm)	750×1200×800	800×1250×800	900×1380×900	1050×1550×1100	1200×1700×1250
Temperature  Range of Saturated Steam (Operating temperature)	(Temperature Rangeof Saturated Steam:100℃~135℃) ,Temperature Range: 120℃,100Kpa/ 133℃  200 Kpa;(143℃ is special order)
Relative Pressure/ Absolute Pressure	Relative pressure: display values  indicated on the  pressure gauge Absolute pressure: Value that add 100 Kpa based on display values indicated on the  pressure gauge  (The actual value in the inner box)

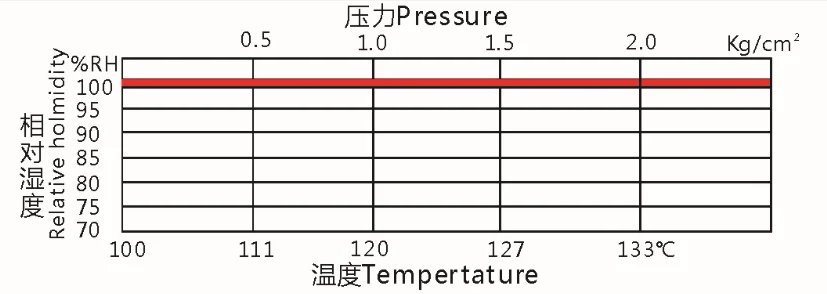

Comparison Table of Temperature, Humidity,Pressure of Saturated Steam
Humidity of Saturated Steam	100%RH saturation steam humidity
Steam Pressure (Absolute Pressure)	101.3Kpa +0.0Kg/cm2 ~ 2.0Kg/cm2 (3.0Kg/cm2  is special standard)
Recursive Device	Steam Natural convection circulation
Safety Protective  Devise	Water short storage protect, over pressure protect. (have automatically/manual water replenishing, automatically discharge pressure function )
Accessories	Two layers  stainless steel plate
Equipment  Capacity(L)	17	43	87	155	250
Powder	AC 220V, 1ph 3  Lines ,50/60HZ ;
