China complete cassava starch production line
- 200 Set / Sets per Month
- Qingdao,Ningbo,Shanghai,Guangzhou
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 15 days
Product Details
Brand Name: | DOING | Place of Origin: | China | Model Number: | DY001 |
After-sales Service Provided: | Engineers available to service machinery overseas | Condition: | New |
Product Description
Cassava starch production line introduction:

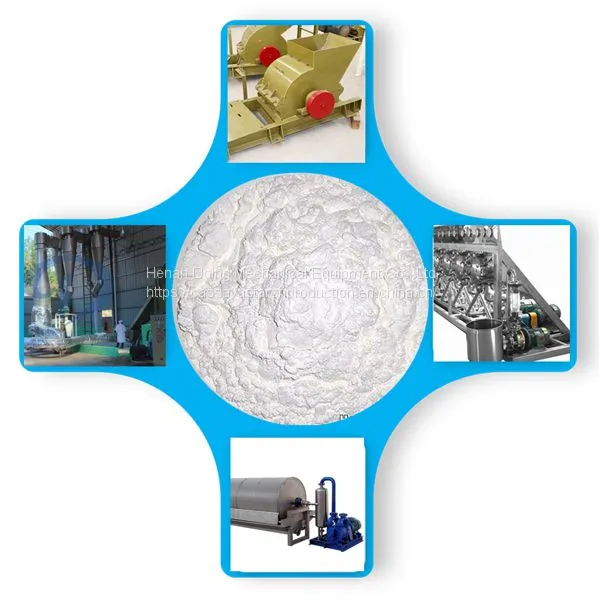

Cassava starch is a kind of white powder of cassava that is dehydrated and dried after starch extracion. It is widely used in food industry and non-food industry. Cassava strach production is a very promising market.

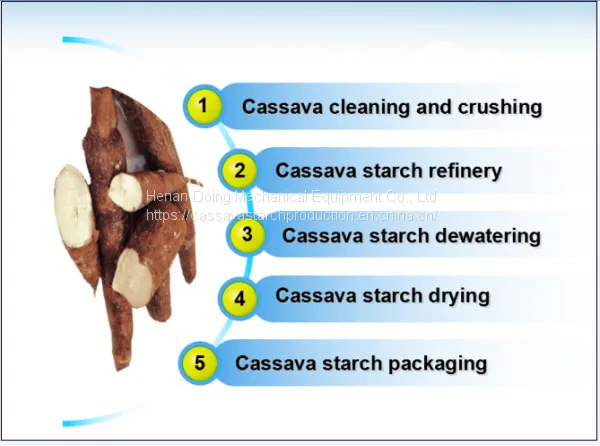

Cassava Starch Production Process:
Doing company mainly engaged in the design, processing and manufacturing of the starch equipment, and make installation and commissioning for the supporting projects. The production process of the cassava starch is:
Technical process:

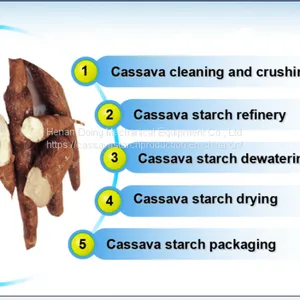

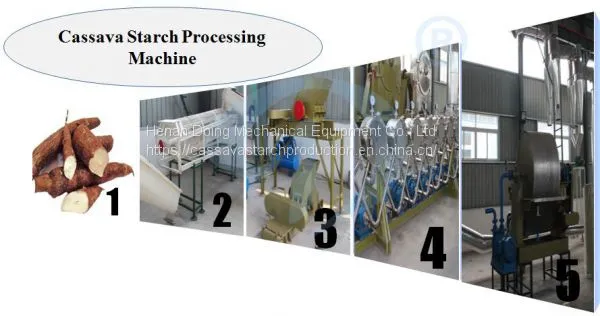

Fresh cassave - Cassava cleaning and washing - Grinding - Starch extraction - Filtering and desanding - Starch concentration and purification - Dewatering - Drying
Machine order:

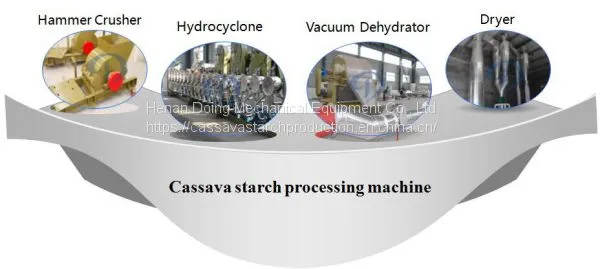

Dry sieve - Paddle washer - Cutting machine - Rasper - Centrifuge sieve - Fine fiber sieve - Disc separator - Hydrocyclone - Vacuum filter - Flash dryer

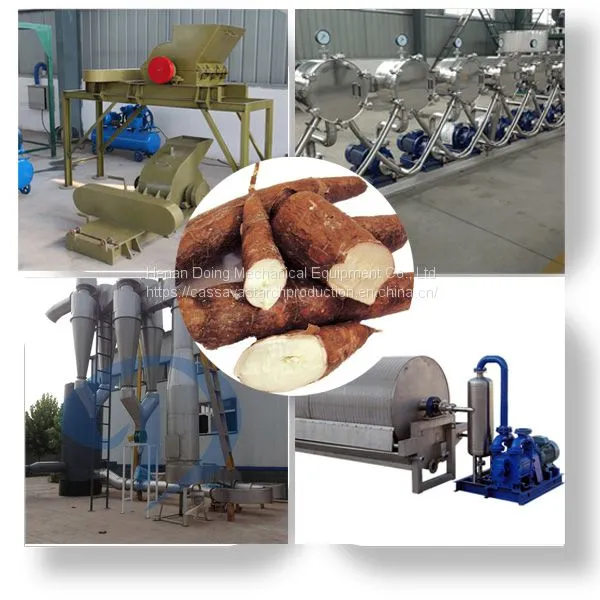

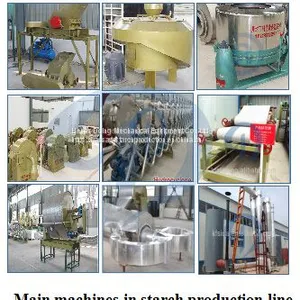

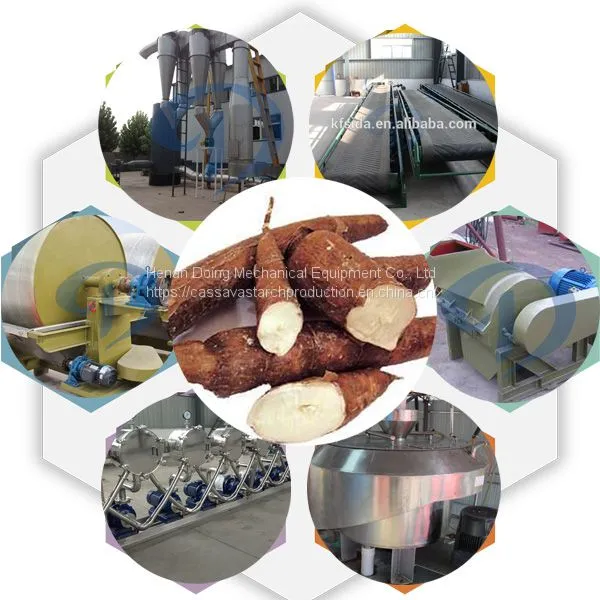

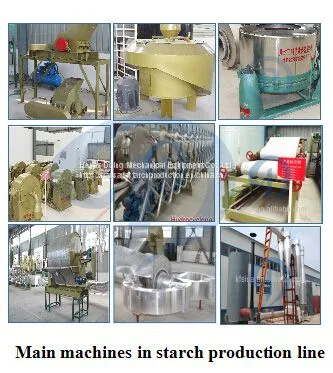

Main equipments and its function in this cassava starch production line:
1) Cleaning parts:
* Dry sieve: Widely used in impurities pre-removal for starch production. It's used to remove dirt, sand, small stones, weeds and other impurities that are attached on the surface of potato, sweet potato and cassavas.
* Paddle washer: Mainly used to wash the raw materials. Adopted countercurrent washing principle. By the effect of paddle pushing, the raw material flows in the converse direction against water currently, which makes washing completely and eliminate sand and mud at most.
2) Crushing parts:
* Cutting machine: Its main function is cut cassavas into small pieces, 3-5cm, for further processing.
* Rasper: Break the materials, crush cassavas into slurry, release starch particles from cell, with high starch dissociation rate.
3) Starch extraction:
* Centrifuge sieve: Used for the extraction of starch from the materials, remove fiber from starch slurry, high starch extraction rate.
4) Starch filtering and desanding:
* Fine fiber sieve: It is a machine mainly for separating small particles of fiber from starch slurry. This process is achieved by gravity of the slurry and screen mesh inside the drum.
5) Starch concentration and purification:
* Disc separator: It is widely used in processing of starch to separate protein and cell liquid out of slurry, with high separating factor.
* Hydrocyclone: It is designed to get rid of related substances such as fiber and protein in the starch milk. For the starch's washing, concentration and purification.
Usually suggest this two machine used in combination, make the production high efficiency and high quality.
6) Drying system
* Vacuum filter: widely used for the starch dewatering, final starch water content is 38%-42%.
* Flash dryer: This is the last step for cassava starch production. It adopts low temperature drying syetem, which will prevent starch gelatinization. Final starch water content is 12%-14%.
Henan Doing Mechanical Equipment Co., Ltd, is located in Zhengzhou city, Henan province, China. Doing company is an enterprise integrating engineering, R&D, equipment manufacturing and installation, project contracting, technical services and international trading etc. We are mainly engaged in starch and syrup processing plant, cassava processing plant, gluten machine etc.
Welcome to make an inquiry of our machine by following contacts:
Contact: Ms Elina
Email: sales@doingmachinery.com
Tel: 0086 371 5677 1822
Whatsapp/Phone:0086 135 2661 5783
Website:
