Small Grass, Millet Straw, Rice Grass, Wheat  chaff Cutter Machine

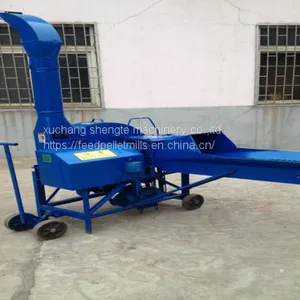

Small Grass, Millet Straw, Rice Grass, Wheat  chaff Cutter Machine thumbnail-1

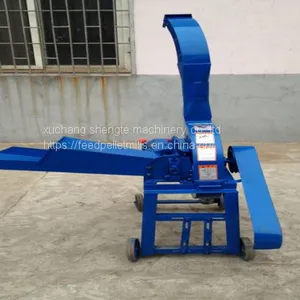

Small Grass, Millet Straw, Rice Grass, Wheat  chaff Cutter Machine thumbnail-2

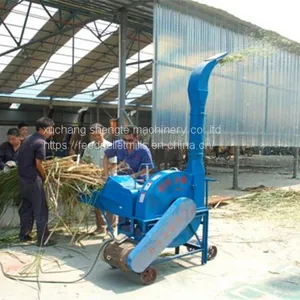

Small Grass, Millet Straw, Rice Grass, Wheat  chaff Cutter Machine thumbnail-3
Small Grass, Millet Straw, Rice Grass, Wheat  chaff Cutter Machine thumbnail-4
Small Grass, Millet Straw, Rice Grass, Wheat  chaff Cutter Machine thumbnail-5
Small Grass, Millet Straw, Rice Grass, Wheat  chaff Cutter Machine photo-1

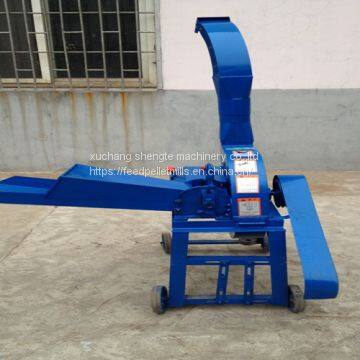

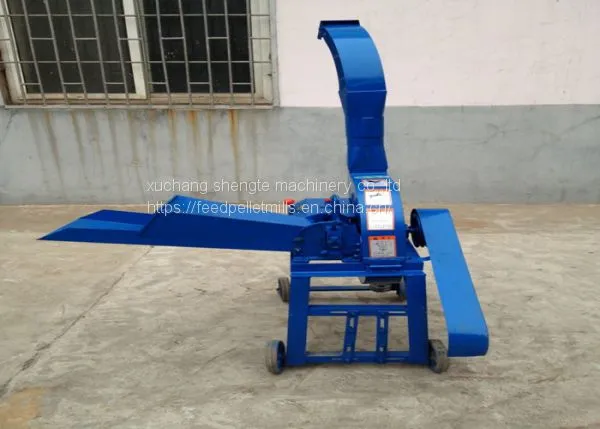

Small Grass, Millet Straw, Rice Grass, Wheat  chaff Cutter Machine photo-2

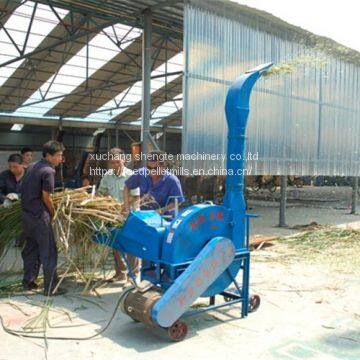

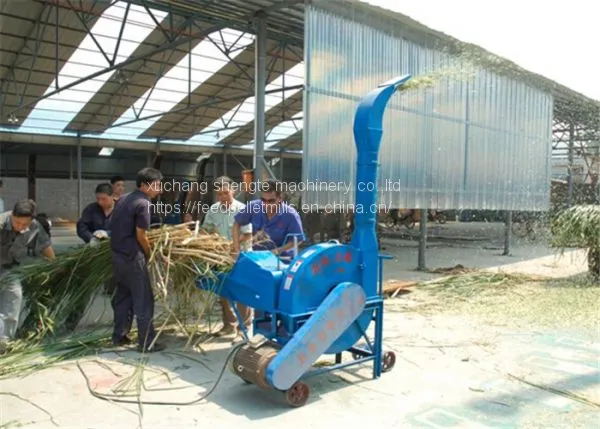

Small Grass, Millet Straw, Rice Grass, Wheat  chaff Cutter Machine photo-3

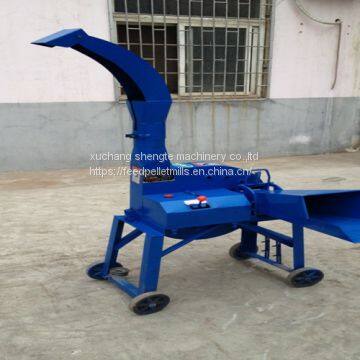

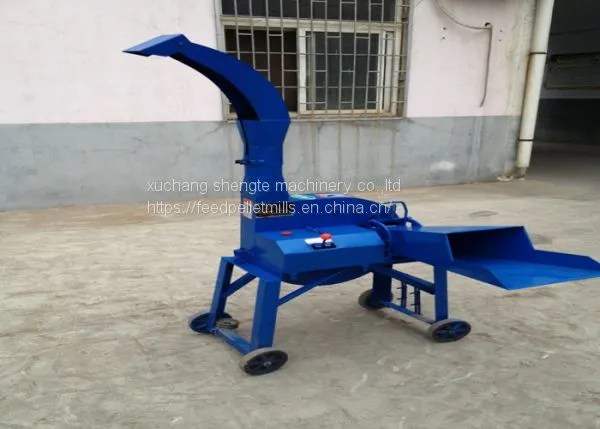

Small Grass, Millet Straw, Rice Grass, Wheat  chaff Cutter Machine photo-4

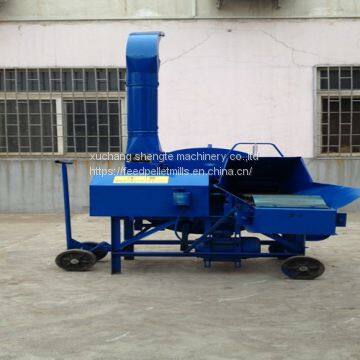

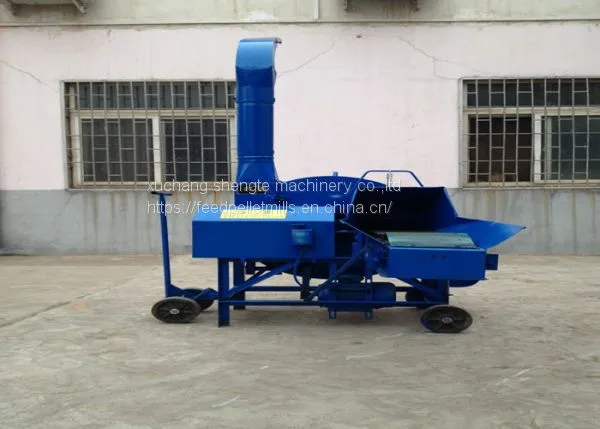

Small Grass, Millet Straw, Rice Grass, Wheat  chaff Cutter Machine photo-5
US$ 1500 - 3000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
SENTE
Place of Origin:
China
Model Number:
9ZC0.4
Contact Supplier Request Quote Chat Now
Xuchang Shengte Machinery Co.,ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
20 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SENTE
Place of Origin China
Model Number 9ZC0.4
Type Chaff Cutter
Certification ISO
After-sales Service Provided Overseas third-party support available
Warranty one year
Weight 100
Dimension(L*W*H) 2*1*2
Condition New
Voltage THREE PHASE
Power(W) 3kw



Poultry farm animal feed grass wheat forage chopper machine, chaff cutter machine

Introduction of straw crusher machine chaff cutter :

1.This machine is specially used for crush all kinds of grass, millet straw, rice grass, wheat  stalk, corn stalk.
2.It is used for feed the cow, horse, sheep, pig and so on animal. And the length of the grass can adjust.
3.Straw crusher machine mainly used to corn straw, wheat straw, rice straw all kinds of crop straw and pasture. These processed
materials suitable for breeding cattle and sheep deer horse etc, chaff cutter can also process cotton stalk, branches, bark,
and so on, used for straw generation ethanol, paper making and artificial board etc.

The introduction of 9Z-0.4 grass grinder:
Grass crushing and rubbing machine is a set of grass cutting, crushing and kneading new straw processing machinery as a whole. Grass grinder with traditional straw cutting and crushing two functions, cut out of the grass is relatively hard, easy to prick his sheep. And straw crushing rubbing machine knead function can make corn straw, cornstalk, wheat straw and other crops and wild weeds into a softer filamentous feed.
The 360 type multifunctional kneading machine is the high rotary hammer and knead plate interaction, throwing the material from outside

Main Features

1. the thickening of steel plate
2. No. 65 steel blade
3. widening the body
4. thickened shield
5. beautiful appearance, reasonable design




Items

9ZP-0.4

9ZP-0.4A

9ZP-0.4B

matched power(kw)

2.2-3

2.2-3

2.2-3

motor speed(r/min)

2800

2800

2800

main shaft speed(r/min)

950

950

950

machine weight(kg)

50

53

58

capacity(kg/h)

400-1200

400-1200

400-1200

matched belt

A1200-1219

A1200-1219

A1200-1219

external dimensions(mm)

1070*475*810

1070*475*810

1070*485*810



Poultry farm animal feed grass wheat forage chopper machine, chaff cutter machine





Poultry farm animal feed grass wheat forage chopper machine, chaff cutter machine

Main Technical Parameter:

Product Type9Z-9A9Z-6A9Z-4C9Z-2.5
Equipped with a motor (kw)157.55.54
Equipped with a diesel engine (hp)≥ 28≥ 15≥ 12≥ 8
Production efficiency (T / h)3 ~ 202.5 ~ 152 ~ 81 ~ 4
Finished material length (mm)12,18,25,3512,18,25,359,16,18,27,32,48Mito 15,35 Four knives 11,22,26,54
Dimensions (mm)Use2620 × 2140 × 33901968 × 2147 × 27561020 × 1520 × 27561150 × 1230 × 1695
Transport2620 × 1720 × 18501393 × 800 × 15851020 × 630 × 23501150 × 510 × 1050
Chain conveyor√√△×
Fed grass roller√√√×
Tractor suspension frame××√√
Tractor drag rack√△△×
Tricycle frame connection××△△
Diesel frame△△△△
Diesel power input shaft△△△×
Rubber Casters△△△△



Contact with us : zzwoodstar@gmail.com           whatapp/wechat:+86-13683823082

webiste:


Product Tags: chaff cutter machine , forage chopper machine , animal feed machine
