Help CenterDigital Truck Scale 80T
Related Products
-
Weighbridge 12M Digital ScaleNegotiableMOQ: 1 Unit -
Truck Scales of Digital DisplayNegotiableMOQ: 1 Unit
-
Waterproof 18M Electric Weighing Truck Scale WeightbridgeNegotiableMOQ: 1 Unit
-
Automatic Truck Scale 50t 3*9m WeighbridgeUS$ 5000 - 20000MOQ: 1 Unit
-
Multiple Seal Production and Waterproof 80t 3*15m Truck ScaleUS$ 5000 - 20000MOQ: 1 Unit
Company profile:
Shanghai BOGU have established a whole production chain, of which main products cover truck scales, portable truck scale, permanent truck scale,truck trailer scales, vehicle weighing systems, Weighbridges10ton/20ton/30ton/40ton/50ton/60ton/80ton/100ton/120ton/150ton/200ton and so on. They are widely used in the industry of mining, construction chemicals, metallurgy, transportation, factories, food ,logistics and so on. Our products are not only renowned in more than 20 provinces and cities in domestic markets, but also have being sold popularly in more than 120 countries and areas all over the world like Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, and Central and South America etc.
Product Profiles:
Tonnage | Model | Platform | Locd cell | Qty | |
80T | 24*3M | 8Parts(6*1.5M) | 10 | 1 | |
1. Delivery time: for 1 set, 15 days after down payment | |||||
Technical parameters: | |||||
Said Structure | U-Shaped Beam | ||||
Thickness of top plate of the platform | 10 mm | ||||
Thickness of the U beam | 6 mm | ||||
Surface Painting | Anti rust and anti corrosion | ||||
Foundation form | no pit /shallow pit | ||||
Accuracy Class | C3 | ||||
Power Supply | 220VAC(-15%~+10%), 50HZ±2% | ||||
Details of standard accessories parts:

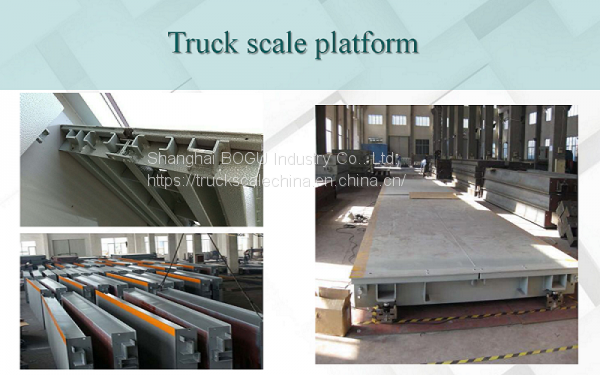

1. All steel truck scale platform structure (1set)
l Modularization, standardization, serialization
l Good overall structure, high rigidity
l Wear-resistant, anti-pressing, anti-rust and anti-corrosion
l Temperature range:-35~+65℃
2. SPA9P indicator (1piece/1cartons)
l Auto/manual contains side loading adjustment
lBuilt in mini-printer
l Linearity correction function
l Automatic fault diagnosis function
l Wrong signal will be showed cycle
l Set to zero tracking range and zero range
l Be realized by T, KG, G calibration of three units
l Display the date, time, continuous clock function
l Can store 256 records, 256 team vehicle number and the item, data protection time >5000h when power off
l Temperature range:-10~+40℃

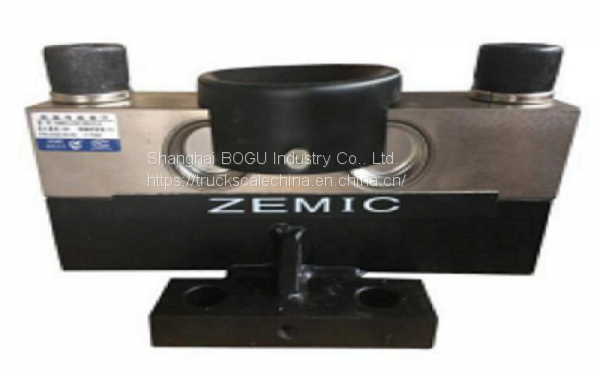

3. HRQS weighbridge load cell
l Simply structure, ball load-transfer, automatic reset
l Strong impact resistance, adapt to the harsh environment
l High accuracy, long-term stability
l Easy maintenance and good interchangeability
l Temperature range: -35~+65℃
l Protection level: IP68

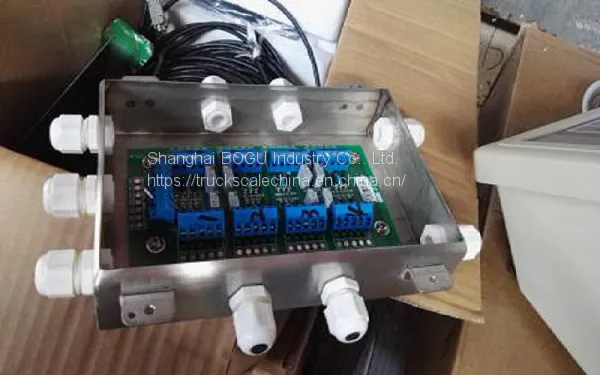

4.HR-J Stainless junction box (1piece/1cartons)
l Delicate outlook and reasonable structure of the internal circuit
l Uses the high-precision , high reliability electronic components
l Plastic waterproof seal to guarantee long-term stability
l Signal and voltage adjustment is optional

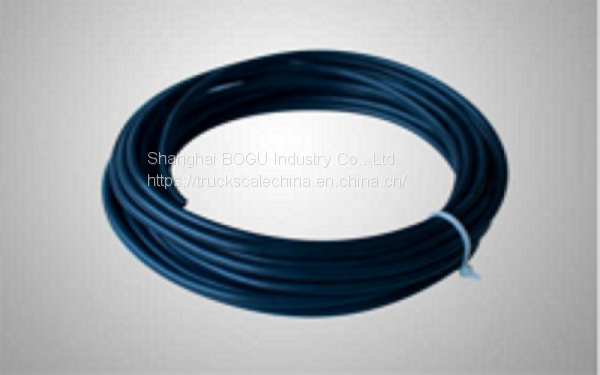

5. Signal cable (1piece/1cartons)
l connect the junction box and load cells, 20 m, shielded

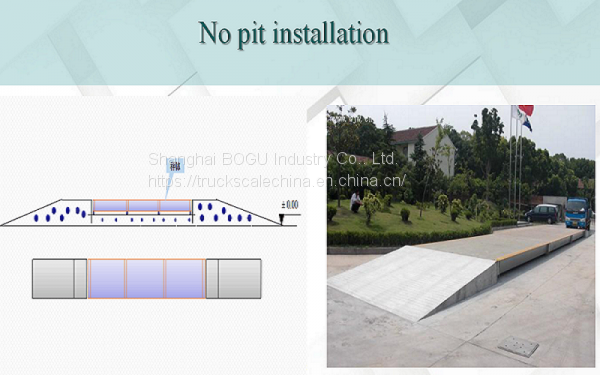

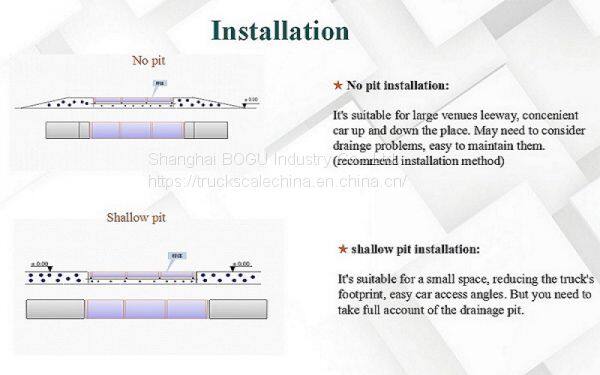

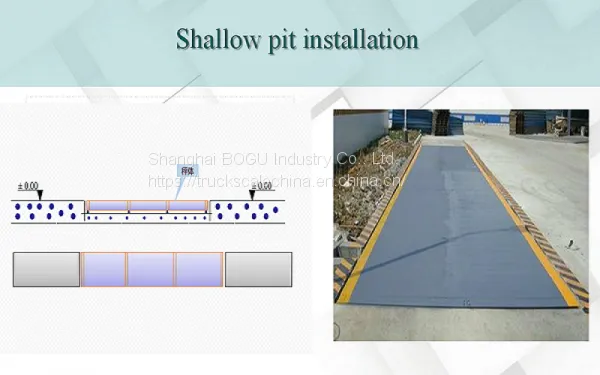

Installation Choice

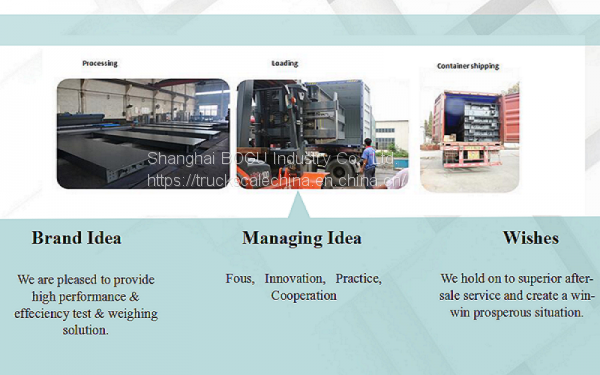

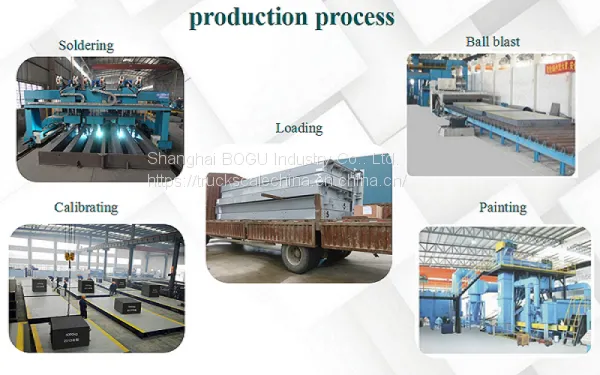

Production Progress
Contact :
Your Satisfaction is Our Greatest Wish!
