SYT electric flour sieve tumbler screen separator machine
- 50 Set / Sets per Month
- Shanghai,Qingdao,Ningbo
- T/T L/C Other
- 10 days
Product Details
Brand Name: | SANYUANTANG | Place of Origin: | China | Model Number: | HXSY1000-4S |
Type: | Circular | Certification: | CE/ISO9001:2008 | Application: | Food Processing |
After-sales Service Provided: | No overseas service provided | Warranty: | 12 Months | Weight: | 600KG |
Dimension(L*W*H): | 800*800*100mm | Voltage: | 110-415V | Condition: | New |
Power(W): | 3KW |
Product Description
SYT electric flour sieve tumbler screen separator machine
Capacity: The capacity is calculated by tons. Multiple times than the general vibrating screen.
Tumbler vibrating screen machine is an efficient sieving equipment which is designed to meet the large out put, high-density sieving of the manufacturers. It is the most effective simulation of artificial sieving movement (sieving precision, efficiency, service life is 5-10 times than the common cylinder sieve), for the processing of all the fine and ultra-fine powder and special materials, particularly suitable for materials which are difficult to classify.
Because of the motion trajectory of the griddle box, the Tumbler screen machine is also called compound circle screen. The vibration force produced by the drive system is a kind of inertia force which is circling the dead axle and changing regularly. Intrinsically, it is a kind of centrifugal force given by the eccentricity mass circling around the dead axle. The sieve is ususlly installed horizontally or with tiny angle(0°-5°).

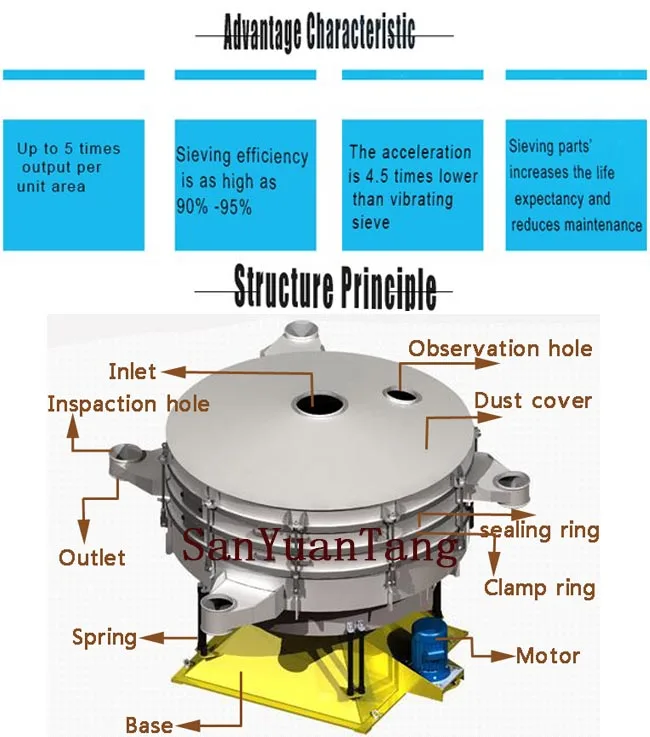

The principle is when you start the machine, the vibrating part ---the screen box takes circling motion under the influence of the vibrating force. The screen box drive the sieve to take circling motion periodicity, so the material on screen surface take bounce motion, meanwhile, the material less than the aperture drop to the next deck, and the oversize are discharged by the outlet . Finally , the screening work is completed.

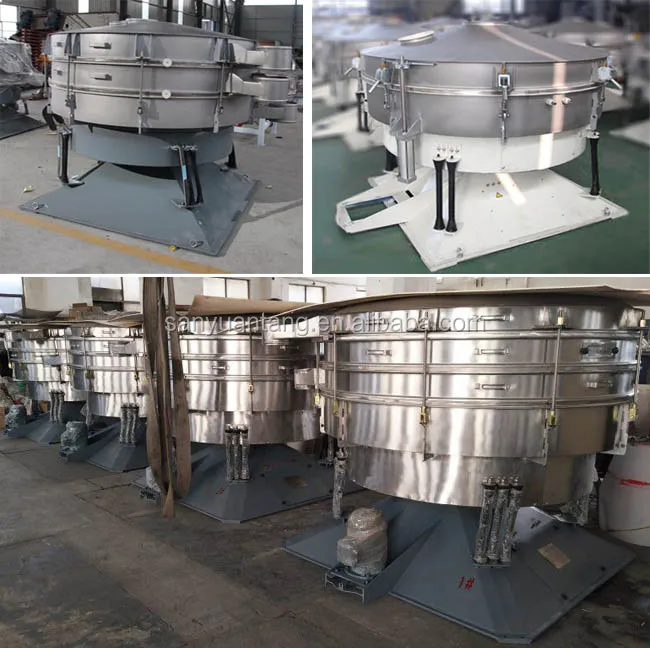

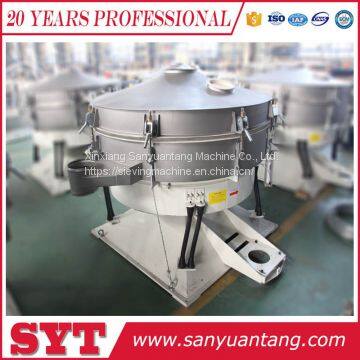

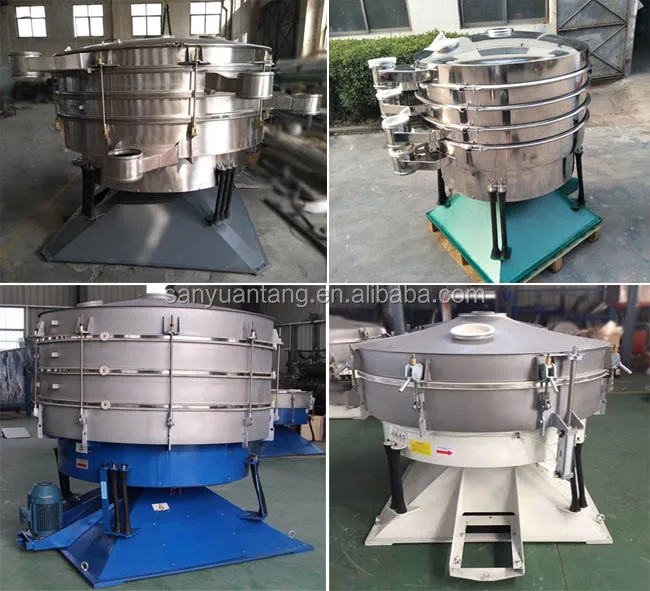

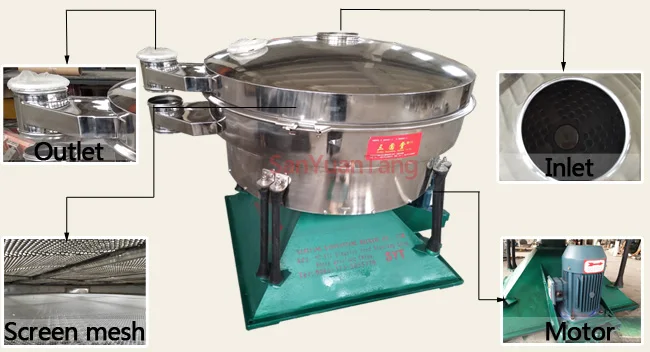

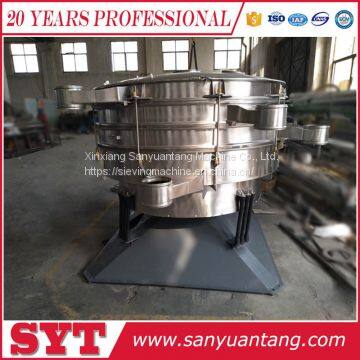

Photos of tumbler screens

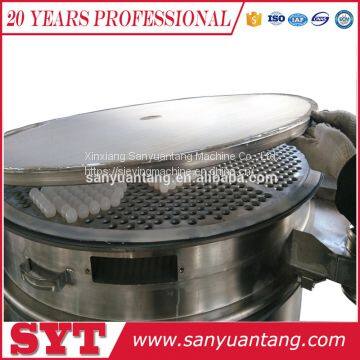

Cleaning method:Bouncing ball,brush or ultrasonic method
Applications of swing sieve
Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.
Chemical industry: resin pigment, medicine, grease, paint, palette, etc.
Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.
Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.
Mechanical industry: casting sand, powder metallurgy, electromagnetic material andmetal powder, etc.
Export standard plywood package are supplied with well packed. we can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually to ship Screw Conveyor by sea way.
Exhibition & Custome

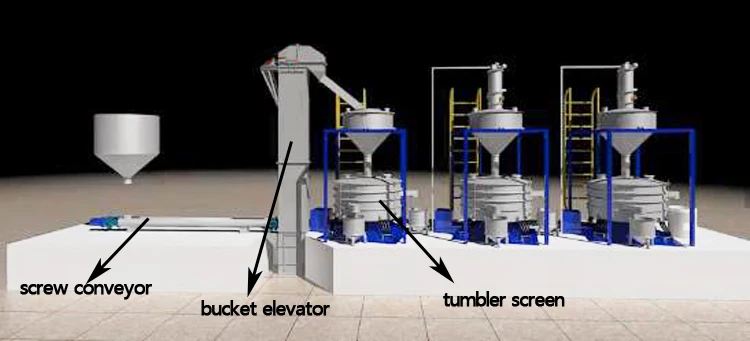

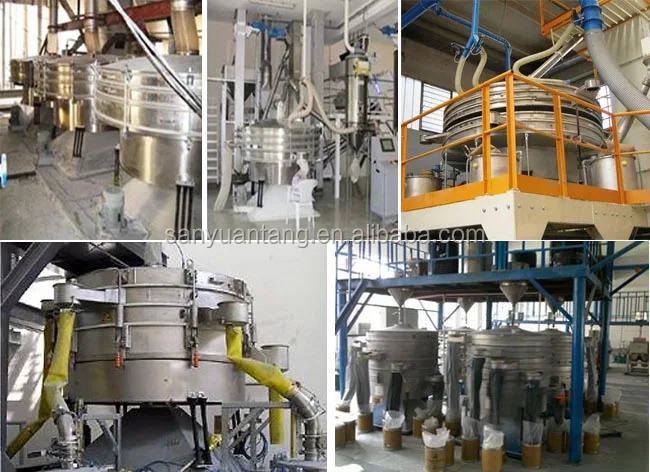

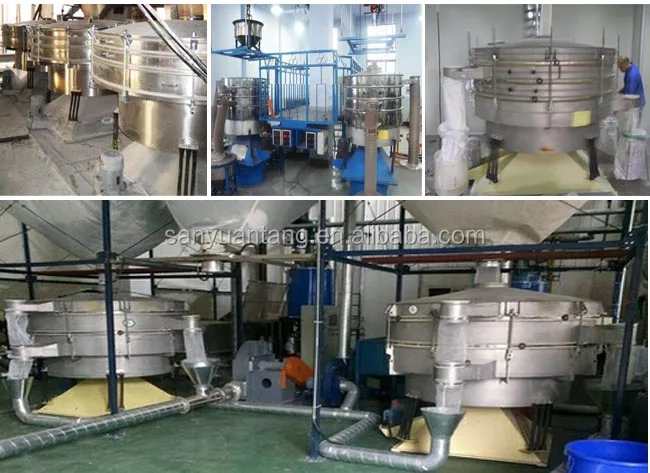

Application site
Xinxiang city Sanyuantang Machinery Co.,Ltd, ISO9001 certified enterprise, specializes in manufacturing series of vibrating screen and vibrating machine and we could design, develop and produce by ourselves.
At present, the main range of products include kinds of series of Vibrating screens, Vibrating separator-filter, Ultrasonic vibrating screens, Sifting machines, Filtering machines, Linear vibrating screens, Testing screens, Vibrating conveyers, etc.
These products are highly suitable to the purpose of screening grains and powders and filtering serous fluids. Other uses include the sifting and sorting dry powders, liquids and solids in industries such as Chemicals, Food processing, Pharmaceuticals, Metallurgy, pigments, Ceramics and Abrasives, etc. Our products have seven national patents. CE and ISO certification.The quality and technology of our products have reached the international advanced standard.
2. How many kinds of material are supported?
A. All stainless steel (201, 304, 316L)
B. All carbon steel Q235A
C. Contact part Stainless steel.
3. About the phase and the voltage?
0.12-0.55 kw single phase and three phase are both supported.
0.55-2.2 kw Three phase is just supported.
110V, 220V, 380V, 415V, 450V, 480V are supported. (50HZ OR 60 HZ).
4. How long is the warranty?
The warranty is 12 month(except the wearing parts includes sealing strip, bounce ball and sieve mesh, etc.). Because
different usage, the wearing parts will have different life.
5. OEM order and labeling services are supported?
Yeah, OEM order and labeling services are supported. And we seek global partners.
6. Whether the site visits is supported or not?
Yeah, site visits will be highly welcome. Airport picking up and hotel booking are both supported.
Buying Guides
Raw material:
Capacity: t/h
The size of finally product:
