Sanyuantang powder vibrating vertical conveyor feeder machine supplier
Application
1.ZC series vertical conveyor is applicable to materiels of powder, block and short fibre, and widely used in chemical industry ,rubber ,plastic ,madicine ,light industry,metallurgy,building materiel ,machinery ,mine ,food and other industries.
2.The materiels not only can be lifted ,but also can be dried and cooled during the process of lifting .
Main Technical Parameter
Model |
Diameter of Spiral chute(mm) |
Lifting height(m) |
Speed(r/min) |
Double amplitude(mm) |
Power(kw) |
SZC300 |
300 |
≤4.0 |
960 |
6-8 |
2*0.4 |
SZC500 |
500 |
≤6.0 |
6-8 |
2*0.75 |
|
SZC600 |
600 |
≤8.0 |
6-8 |
2*1.5 |
|
SZC800 |
800 |
≤8.0 |
6-8 |
2*2.2 |
|
SZC900 |
900 |
≤8.0 |
6-8 |
2*3.0 |
|
SZC1200 |
1200 |
≤8.0 |
6-8 |
2*4.5 |
|
DZC1500 |
1500 |
≤8.0 |
6-8 |
2*5.5 |
|
DZC1800 |
1800 |
≤8.0 |
6-8 |
Features
1.Reasonable and simple structure,easy maintenance,low power consumption, low noise.
2.This equipment occupies very little room, and the totally sealed structure can effectively dvoid the dust and the harmful gas pollution.
Application field
Chemical, rubber, plastic, grains, pharmaceutical, metallurgy, building materials, mining and other industries of all kinds of powder, block and short fiber solid materials and so on.

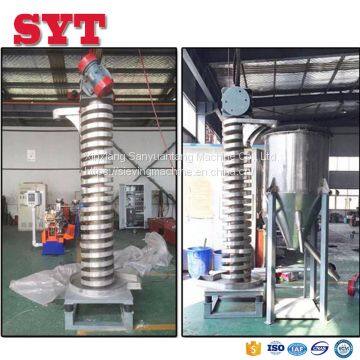

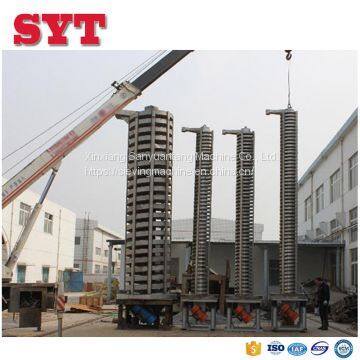

Product show
The vibration vertical elevator with cooling funcation:
Our standard exporting packing is wooden case,and 1set/case. In addition,can be packed according to the size of the machine. If the size is small,we can put it in wooden case. If the size is large,we will pack it by high strength plastic cloth.And if you have special requirement,pls just inform us.
1. Pre-sale service:
a. In order to let each customer know better about the performance and requirements, we provide these services
b. To send each potential customer the detailed production information and company profile
c. According the user’s different needs, we work to recommend and guide for them
d. To help them select the appropriate equipment
2. Service during sale:
a. Do good communication with customers, so that each part can exchang the information.
b. Deliver on time as per the contract clause.
3. After-sale service:
a. To track the customer’s feedback after receiving the equipment
b. Any product quality we receive, the technical personnel will guide to solve the problem
c. All the products have three guarantees
d. Provide technical exchanges
e. Do well about the work of maintenance and service
Xinxiang city Sanyuantang Machinery Co.,Ltd, ISO9001 certified enterprise, specializes in manufacturing series of vibrating screen and vibrating machine and we could design, develop and produce by ourselves.
At present, the main range of products include kinds of series of Vibrating screens, Vibrating separator-filter, Ultrasonic vibrating screens, Sifting machines, Filtering machines, Linear vibrating screens, Testing screens, Vibrating conveyers, etc.
These products are highly suitable to the purpose of screening grains and powders and filtering serous fluids. Other uses include the sifting and sorting dry powders, liquids and solids in industries such as Chemicals, Food processing, Pharmaceuticals, Metallurgy, pigments, Ceramics and Abrasives, etc. Our products have seven national patents. CE and ISO certification.The quality and technology of our products have reached the international advanced standard.
Exhibition & Customers
Factory equipment
Certification & Honor
1: What are the payment terms?
A: We usually accept payment by T/T, Western Union.2 .size any of the products be custom imprinted?
A: The mold is available to be customized.
3: This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?
A: We are alibaba legitimate certification company.
4: How to ensure that I received the machine undamaged?
A: At first , our package is standard for shipping and before packing, we will
confirm product undamaged, otherwise, please contact within 2days.
Because we've bought insurance for you, we or shipping company will be responsible!
5.If you are interested in our spiral conveyer, pls provide me answers of the following question:
a. What is your apply field?
b. What materials to be trasport?
c. How many is yours material size?
d. How many capacity do you need?
e.How far is yours transporting distance?
Welcome to visit our factory
