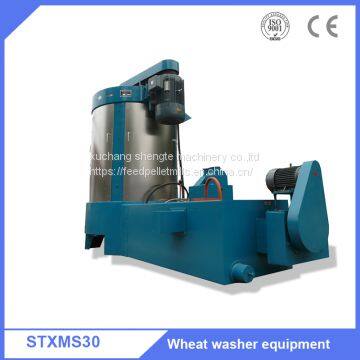

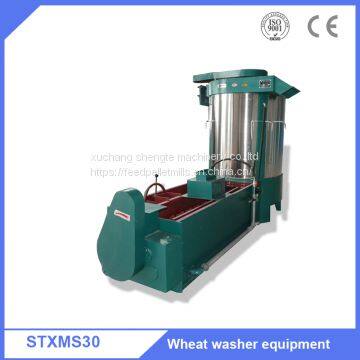

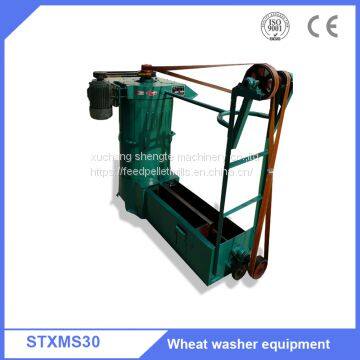

Wheat washing machine
XMS-series wheat washer is one of the main equipment in the grain processing to select wheat. This series equipment adopt water scrubbing method to remove sandstone in the wheat and dirt on the surface of wheat grains.
It has good performance to remove impurity of wheat, and the wheat got into drier to drying after washing. This equipment is suitable for large, medium, and small flour mills.
1.Wheat washer upper and low base adopt high strength cast iron materials.
2.Watertight doors, screen piece, screw conveyor sink adopt stainless steel material.
3.Upper and low bearings adopt airtight dustproof special bearings and pressure bearings.
| Types | XMS30 | XMS40 | XMS50 | XMS60 | XMS80 | XMS90 | XMS105 |
| Output(kg/h) | 600 | 1000 | 2000 | 3000 | 5000 | 6800 | 12000 |
| Direr direction | anticlockwise | anticlockwise | anticlockwise | anticlockwise | anticlockwise | anticlockwise | anticlockwise |
| Main shaft speed(r/min) | 960 | 735 | 610 | 585 | 480 | 400 | 380 |
| Drier piece specification(mm) | 300 | 400 | 500 | 600 | 800 | 900 | 1050 |
| Screw conveyor diameter(mm) | 115 | 135 | 135 | 135 | 135 | 185 | 185 |
| Screw conveyor speed(r) | 195 | 230 | 175 | 170 | 189 | 180 | 180 |
| Power | 90S-4(kw) |
Y100L-4(3kw) Y908-6(0.75kw) |
Y100L-4(4kw) Y908-6(1.1kw) |
Y1328(5.5kw) Y90L-6(1.5kw) |
Y160-M-4(7.5kw) Y112-M-6(1.5kw) |
Y160-C-6(11kw) Y112-M-6(2.2kw) |
Y160-C-6(15kw) Y112-M-6(2.2kw) |
|
Dimension (L*W*H)mm |
1500*480*1340 | 1780*630*1700 | 2160*750*1640 | 2520*880*1760 | 3000*1110*2130 | 3340*1250*2280 | 3550*1400*2550 |
| Weight(kg) | 260 | 500 | 900 | 1300 | 2100 | 3000 | 3600 |
